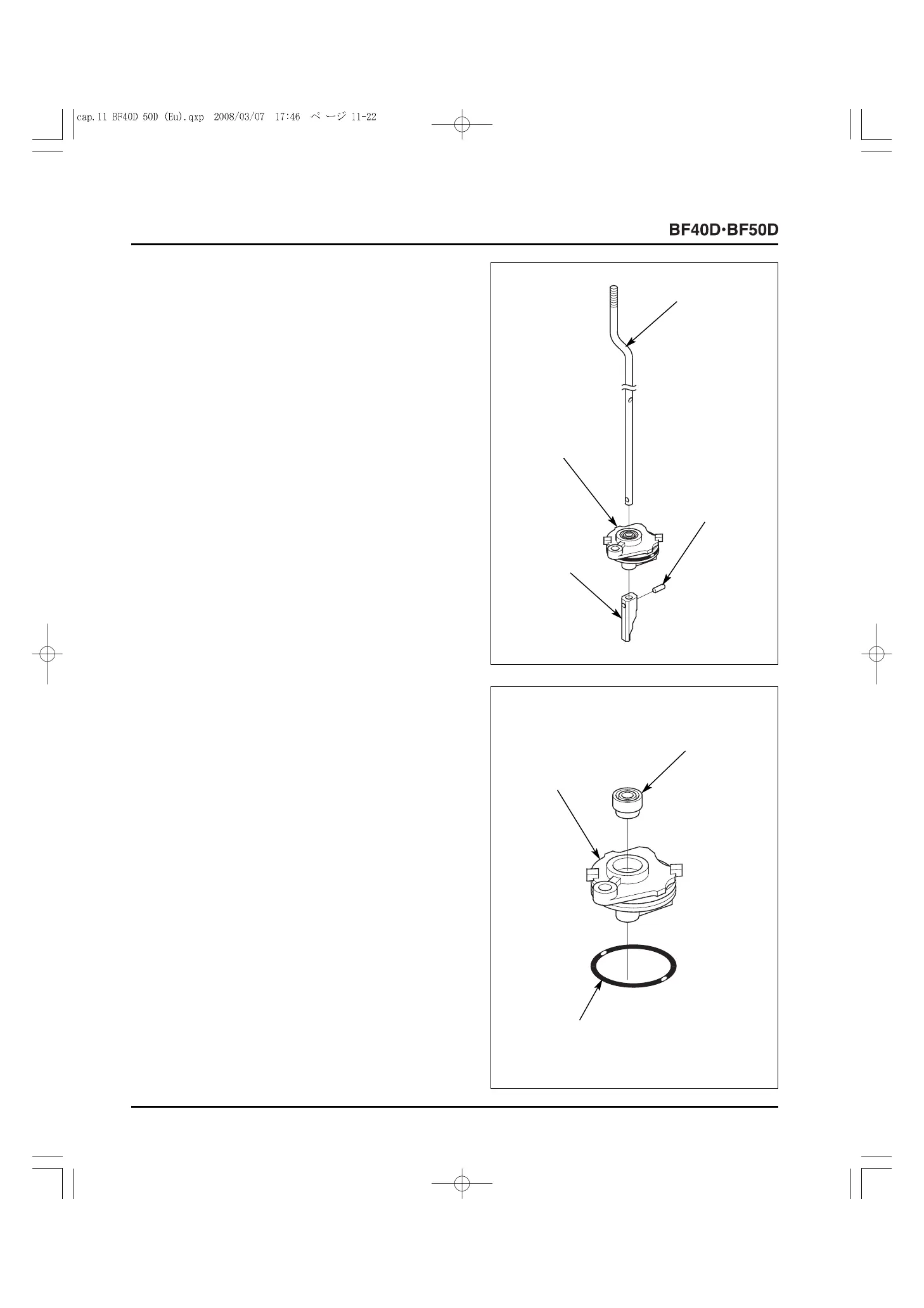

13) Remove the 3 x 14.8 mm roller from the push rod, and
remove the push rod from the shift rod B using a
commercially available pin driver.
14) Remove the seal holder from the shift rod B.
15) Check the 7 mm water seal lip for cuts and replace it if
necessary.
16) Remove the 7 mm water seal from the seal holder.
Replace the water seal with a new one on reassembly.
17) Remove the 47 x 3.1 mm O-ring from the seal holder.
Replace the O-ring with a new one on reassembly.
[2]
SHIFT ROD B
[2]
7 mm WATER
SEAL
[1]
SEAL HOLDER
[3]
47 x 3.1 mm O-RING
[4]
PUSH ROD
[1]
SEAL HOLDER
[3]
3 x 14.8 mm
ROLLER
