Honda BF40D - Page 266

11-23
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

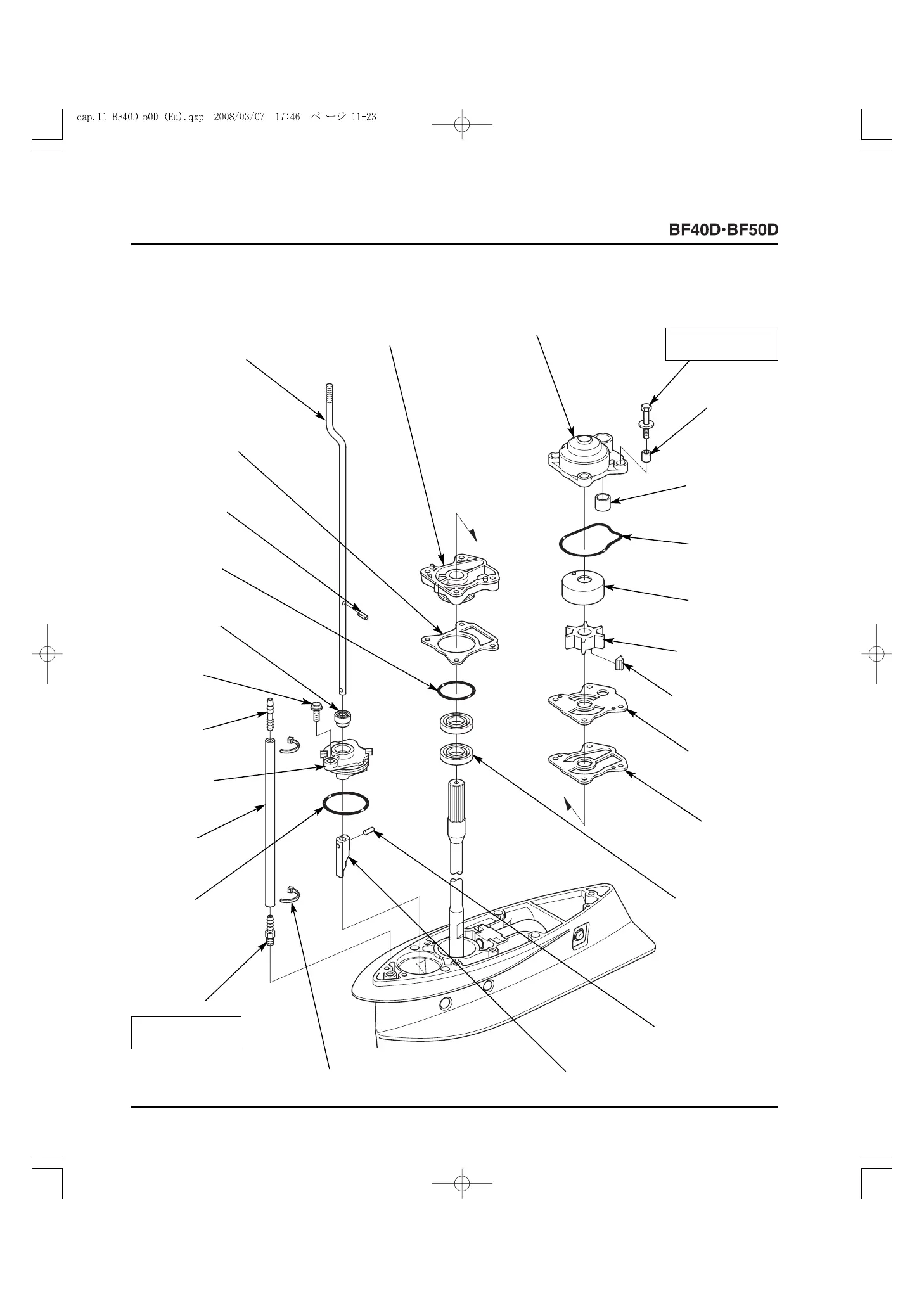

b. COMPONENT DRAWING
[5]
IMPELLER
HOUSING
COLLAR (4)
[6]
WATER TUBE
SEAL RING
[10]
WOODRUFF KEY
[11]
IMPELLER
COVER
[12]
IMPELLER
GASKET B
[3]
IMPELLER
HOUSING
[9]
PUMP IMPELLER
[23]
41.7 x 3.5 mm
O-RING
[2]
WATER PUMP
HOUSING
[21]
END NIPPLE
[16]
WIRE BAND (2)
[19]
5 x 200 mm
TUBE
[25]
WATER PUMP
GASKET
[8]
WATER PUMP
LINER
[7]
WATER PUMP
O-RING
[13]
17 x 30 x 7 mm
WATER SEAL (2)
6 x 20
[20]
SEAL HOLDER
[1]
SHIFT ROD B
[22]
7 mm WATER
SEAL
[15]
PUSH ROD
[14]
3 x 14.8 mm ROLLER
[18]
47 x 3.1 mm
O-RING
[24]
3 x 12 mm
SPRING PIN
[4]
6 x 40 mm BOLT
WASHER (4)
11 N
.
m (1.1 kgf
.
m,
8 lbf
.
ft)
[17]
SENSOR NIPPLE
1 N
.
m (0.1 kgf
.
m,
0.7 lbf
.
ft)
266
