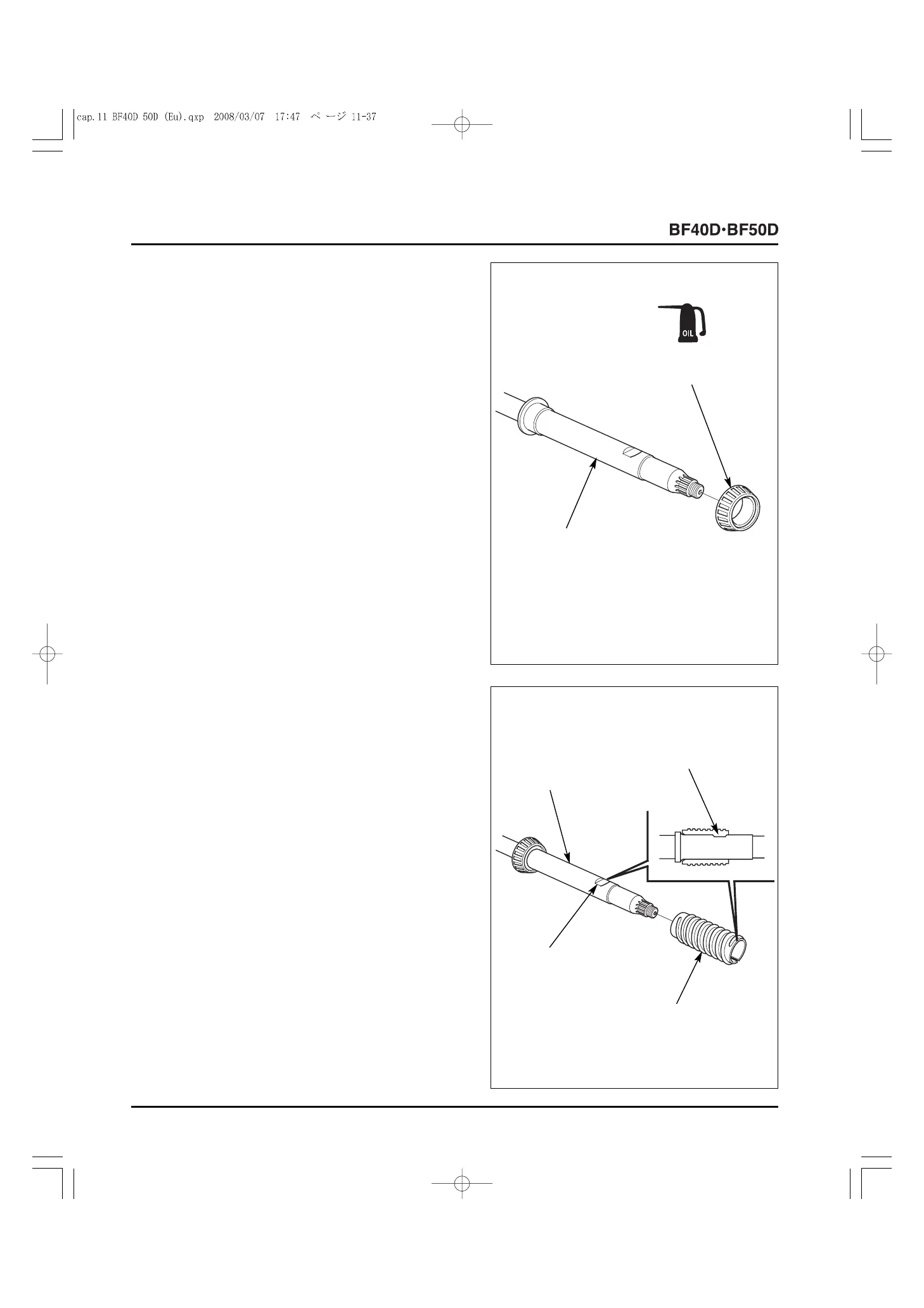

12) Apply gear oil to the inner wall and roller of the bearing
[inner race]. Install the 25 x 47 x 15 mm bearing [inner race]
on the vertical shaft.
• Install the bearing [inner race] with the roller side toward
the pinion gear.
13) Install the oil slinger on the vertical shaft aligning the
projection on the inside of the oil singer with the recess on
the pinion gear side of the vertical shaft.
[3]
OIL SLINGER
[1]
VERTICAL
SHAFT
[2]
PROJECTION
[4]
RECESS
[2]
VERTICAL SHAFT
[1] 25 x 47 x 15 mm
BEARING
[INNER RACE]
