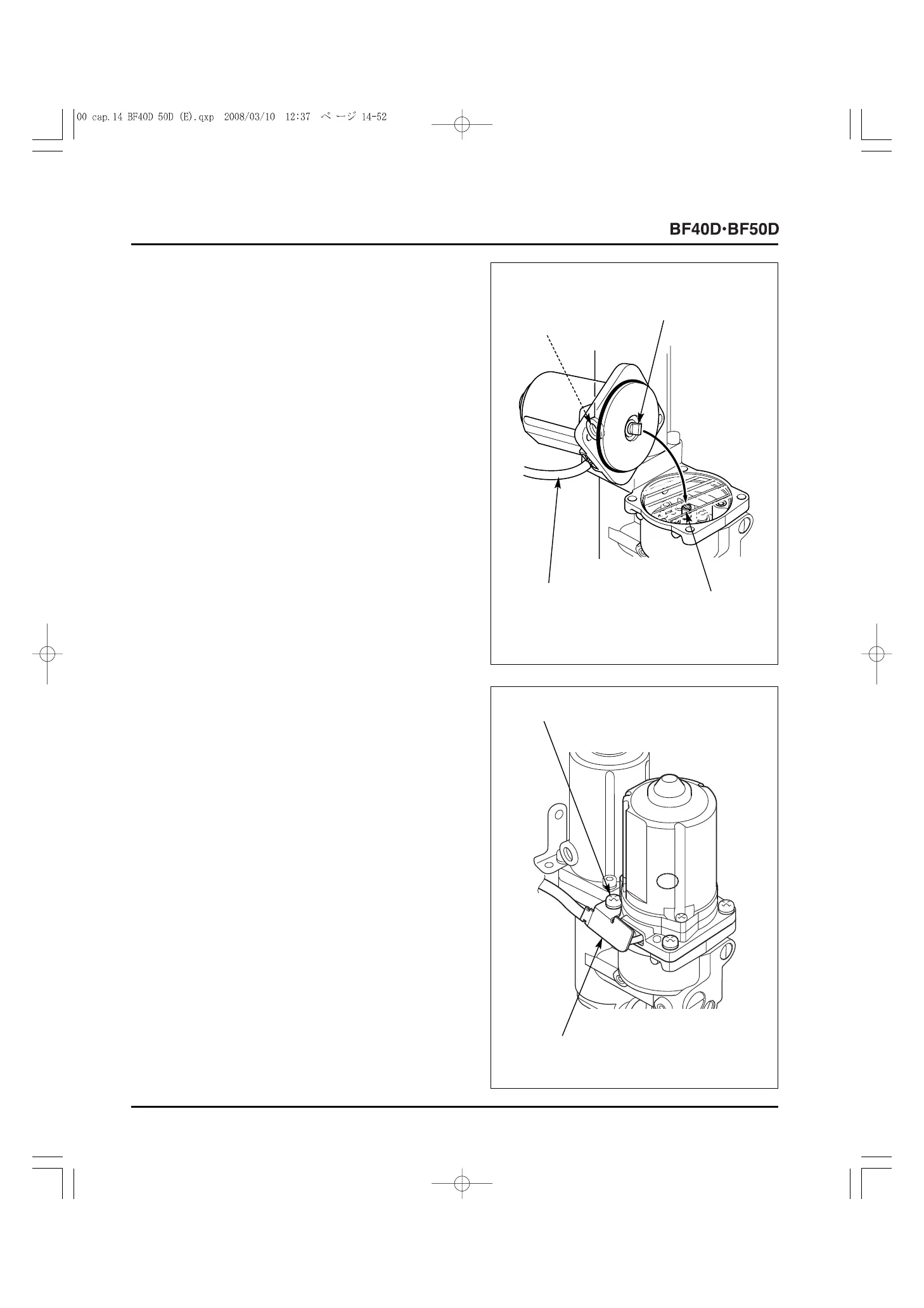

4) Apply ATF to a new O-ring and install it on the power tilt
motor.
Install the power tilt motor aligning the projection on the
motor shaft with the groove in the drive joint.
• Install with the power tilt motor wire toward the oil filler
port of the oil tank.
5) Tighten the four screw washers to the specified torque.
• Install and tighten the motor wire bracket A in the
position shown.
TORQUE: 5.9 N
.
m (0.6 kgf
.
m, 4.4 lbf
.
ft)
[2]
MOTOR WIRE
BRACKET A
[1] SCREW WASHER
[2]
PROJECTION ON
MOTOR SHAFT
[1]
OIL FILLER PORT
[4]
POWER TILT
MOTOR WIRE
[3]
GROOVE IN DRIVE
JOINT
To Next Page
