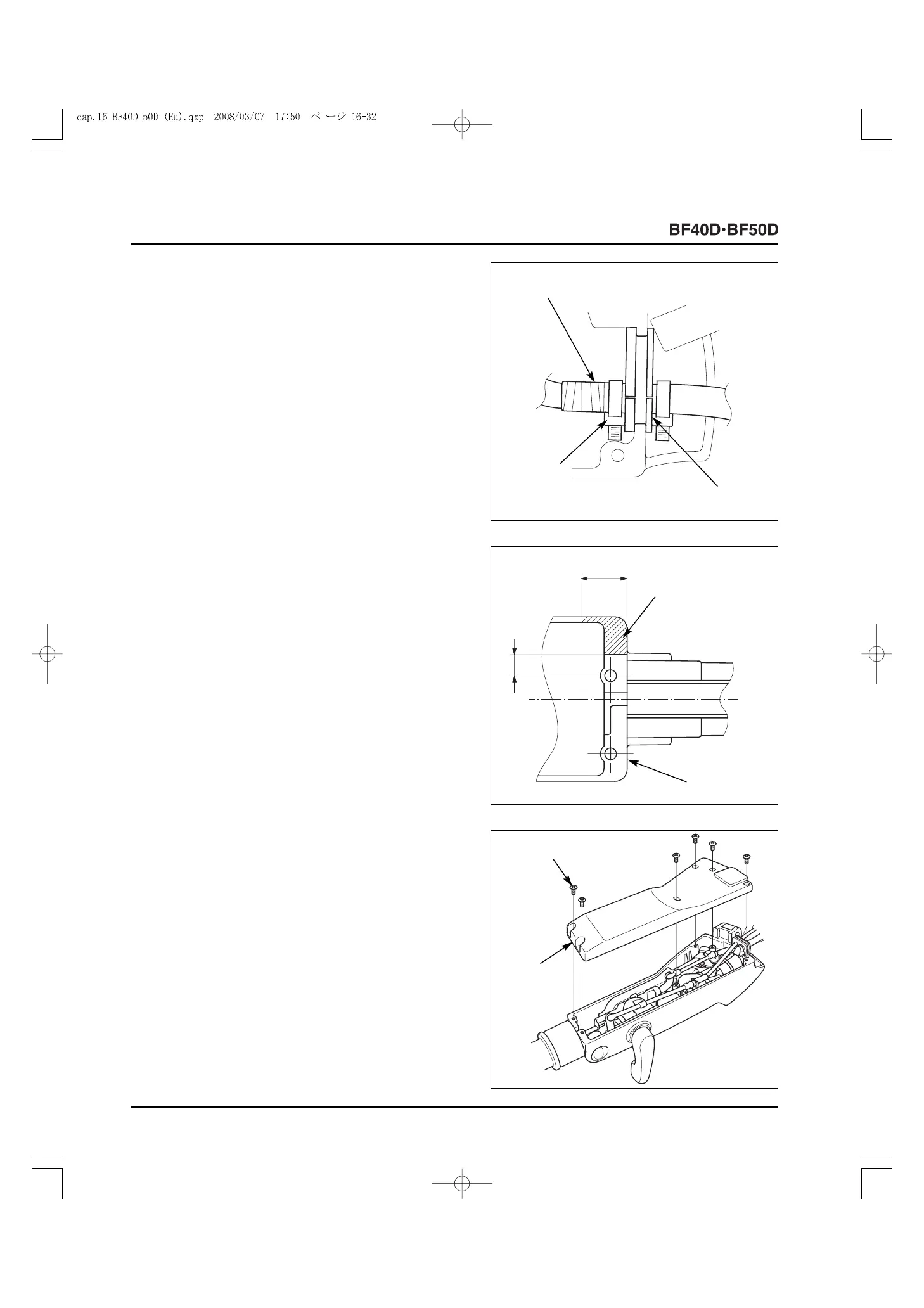

44) Set the grommet between the harness band Bs on the
handle cable as shown.
45) Clean the housing and under cover mating surfaces
thoroughly using a shop towel and degreasing cleaning
solvent.
46) Apply liquid gasket (ThreeBond
®
#1216E or equivalent) to
the housing in the areas shown.
[1]
HANDLE CABLE
[3]
HARNESS
BAND B (2)
[2]
GROMMET
[1]
LIQUID GASKET
(ThreeBond
®
#1216E
or equivalent)
APPLICATION AREA
[2]
HOUSING
20 mm
(0.8 in)
9 mm
(0.4 in)
[2]
UNDER
COVER
[1]
5 x 12 mm SCREW (6)
47) Install the under cover and tighten the six 5 x 12 mm
screws to the specified torque.
TORQUE: 2.4 N
.
m (0.2 kgf
.
m, 1.8 lbf
.
ft)
To Next Page
