[21] • Connectors in tube B
[18] • Connectors in tube A
[22] • Connectors in 40 mm cord tube
• TILLER HANDLE TYPE

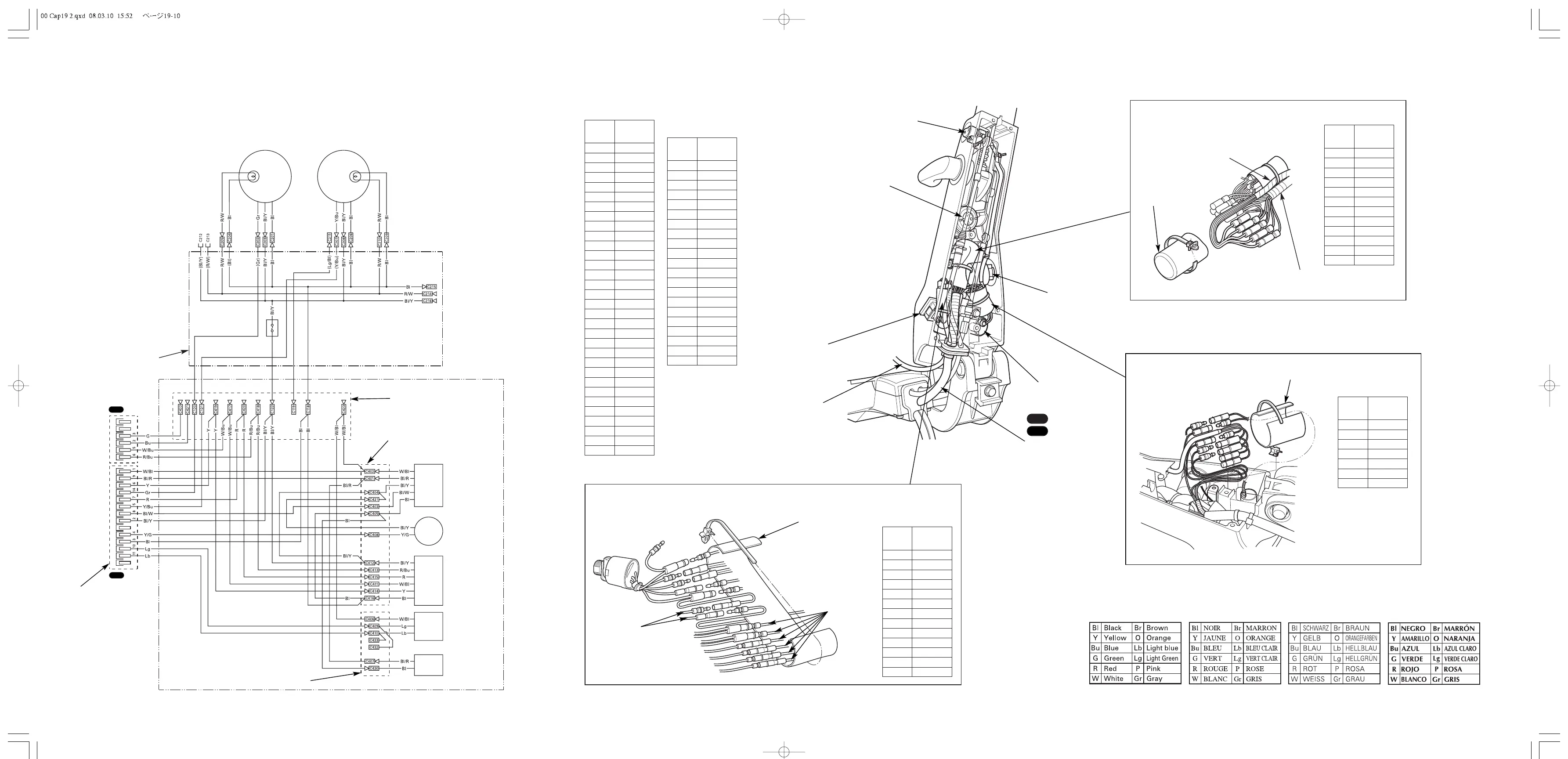

WIRING DIAGRAM:
[8]
40 mm CORD
TUBE
[8]
40 mm CORD
TUBE
[9]
TUBE A
[15]
TUBE B
[15] TUBE B
[10]
COMBINATION
SWITCH
[11]
WARNING
BUZZER
[12]
INDICATOR
LIGHT
[13]
POWER TILT
SWITCH [POWER
TRIM/TILT TYPE
ONLY]
[14]
EMERGENCY
STOP SWITCH
[1]
HANDLE
CABLE
[6]
TRIM METER
[EQUIPPED TYPE
ONLY]
[4]
TO LIGHTING
SWITCH
[3] FUSE
(10A)
[5]
TACHOMETER
[EQUIPPED TYPE
ONLY]
[1]
HANDLE CABLE
[2]
METER HARNESS A
[EQUIPPED TYPE
ONLY]
2
1
[1]
HANDLE CABLE
[1]
HANDLE CABLE
1
2
[9]
TUBE A
[19]
WARNING
BUZZER
CONNECTORS
[20]
INDICATOR
LIGHT
CONNECTORS
[16] [17]
Terminal Wire
number color
C118 Bl
C119 Lg/Bl
C120 Gr
C121 Y/Bu
C122 Bl/Y
C417 W/Bu
C418 R/Bu
C419 Y
C420 R
C421 Bu
C422 G
C423 W/Bl
[16] [17]
Terminal Wire
number color
C401 Bl/R
C402 W/Bl
C403 Bl/W
C404 Bl/Y
C405 Bl
C408 Y/G
C411 W/Bu
C412 Bl/Y
C413 R/Bu
C414 Y
C415 R
C416 Bl
C431 Bl/Y
[16] [17]
Terminal Wire
number color
C406 W/Bl
C407 Bl/R
C409 Lg
C410 Lb
C430 Bl
C432 Lg
C433 Lb
[10]
COMBINATION
SWITCH
[11]
WARNING
BUZZER
[12]
INDICATOR LIGHT
[13]
POWER TILT SWITCH
[POWER TRIM/TILT
TYPE ONLY]
[14]
EMERGENCY
STOP SWITCH
[16] [17]
Terminal Wire
number color
C118 Bl
C119 Lg/Bl
C120 Gr
C121 Y/Bu
C122 Bl/Y
C401 Bl/R
C402 W/Bl
C403 Bl/W
C404 Bl/Y
C405 Bl
C406 W/Bl
C407 Bl/R
C408 Y/G
C409 Lg
C410 Lb
C411 W/Bu
C412 Bl/Y
C413 R/Bu
C414 Y
C415 R
C416 Bl
C417 W/Bu
C418 R/Bu
C419 Y
C420 R
C421 Bu
C422 G
C423 W/Bl
C430 Bl
C431 Bl/Y
C432 Lg
C433 Lb
[16] [17]
Terminal Wire
number color
C118 Bl
C119 Lg/Bl
C120 Gr
C121 Y/Bu
C122 Bl/Y
C201 Bl
C202 Gr
C203 Bl/Y
C204 Bl
C205 R/W
C206 Bl
C207 Y/Bu
C208 Bl/Y
C209 Bl
C210 R/W
C211 Lg/Bl
C212 Bl/Y
C213 R/W
C214 R/W
C215 Bl
C216 Bl/Y
[7]
TO METER
HARNESS B
[OPTIONAL PART]
[2]
METER HARNESS A
[EQUIPPED TYPE ONLY]
[2]
METER HARNESS A
[EQUIPPED TYPE
ONLY]
[2]
METER HARNESS A
[EQUIPPED TYPE ONLY]
