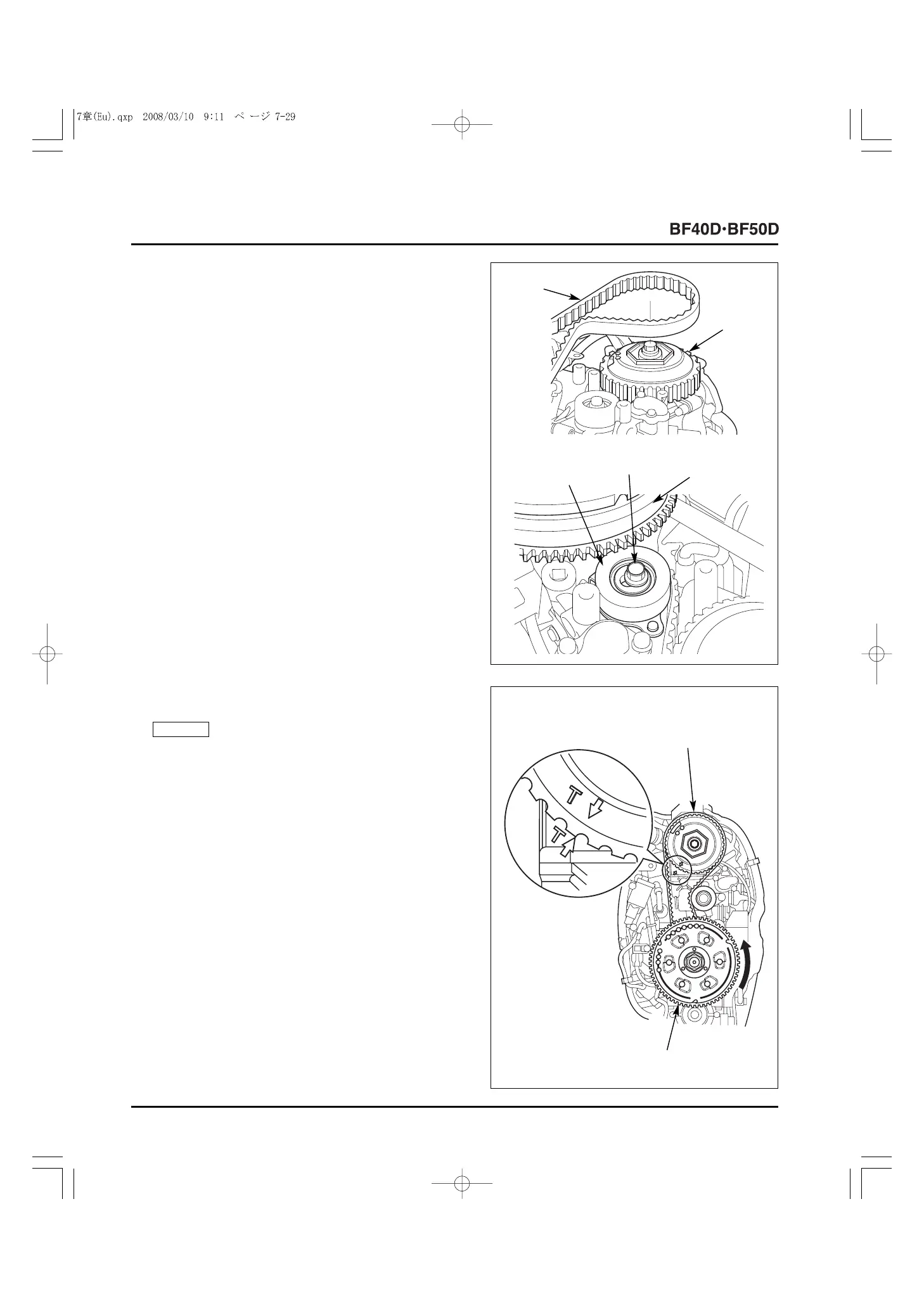

14) Install the timing belt on the pulser rotor.
• Install the timing belt with care not to bring the alignment
marks on the pulser rotor and on the alternator rotor out
of alignment.
15) Loosen the 10 x 38 mm flange bolt on the timing belt
tensioner.
• Do not tighten the 10 x 38 mm flange bolt.
16) Turn the alternator rotor 2 turns using the alignment mark
on the pulser rotor as the reference point.
Be sure to turn the alternator rotor in the direction shown
with the arrow.
NOTICE
10 x 38
[1]
TIMING
BELT
[2]
PULSER
ROTOR
[1]
PULSER ROTOR
[2]
ALTERNATOR ROTOR
[4]
ALTERNATOR
ROTOR
[3]
TIMING BELT
TENSIONER
