Honeywell® FS24XPlus™ | User Manual
22

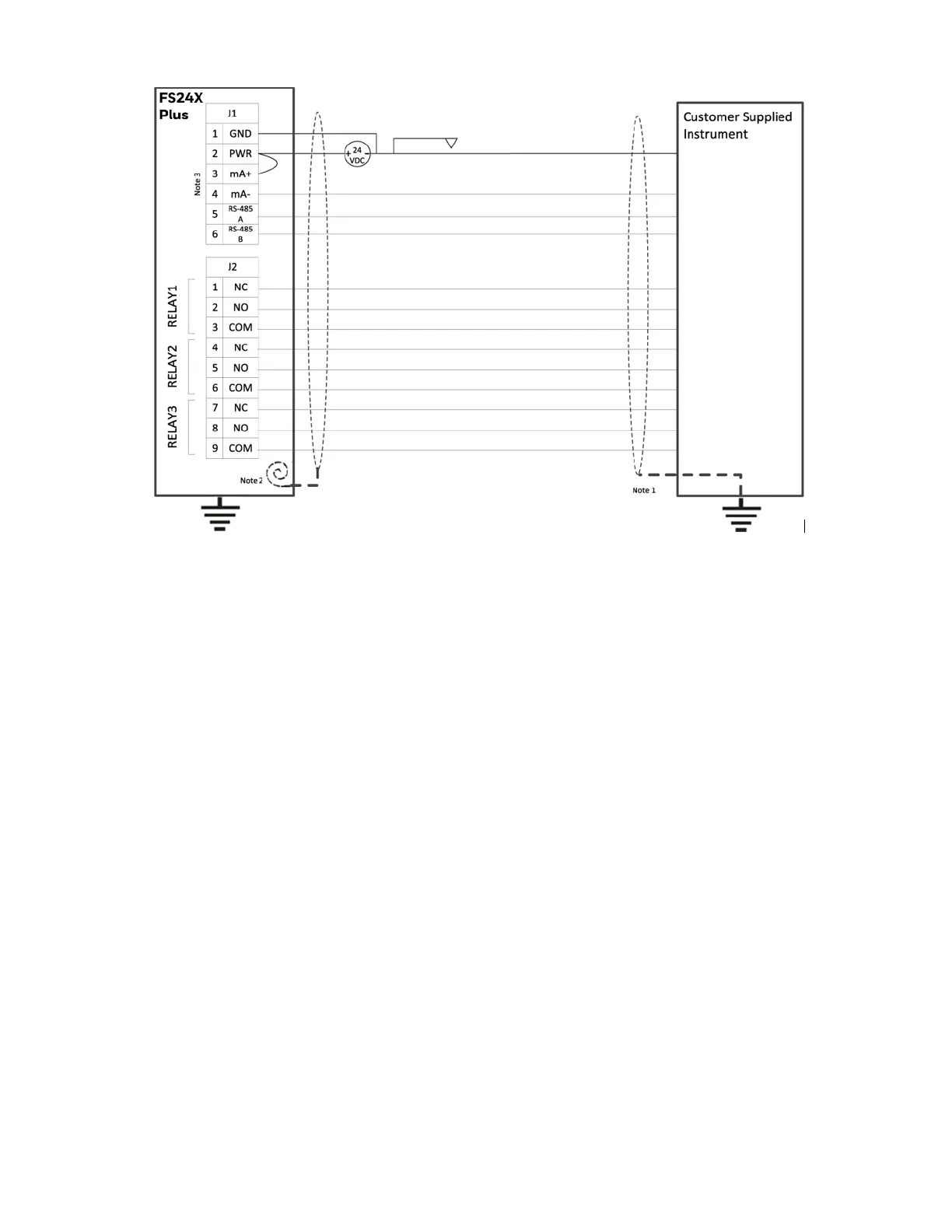

Notes for EN54-10:
1. All Cable Shields must be Earth grounded at the Customer supplied instrument like the Control Panel only.
2. Coil and tape the cable shields at the detector end.
3. The mA Loop Wiring is shown for three wire source mode. Refer to the wiring diagram for details on other modes.
General Notes on Shielding:
a. Use of Shielded Twisted pairs with shield coverage of more than 80% is recommended.
b. Open the shields for connection to the equipment or detector with minimum pigtail length possible.
