Honeywell FS24X Plus - Electrical Ratings

Honeywell® FS24XPlus™ | User Manual
30

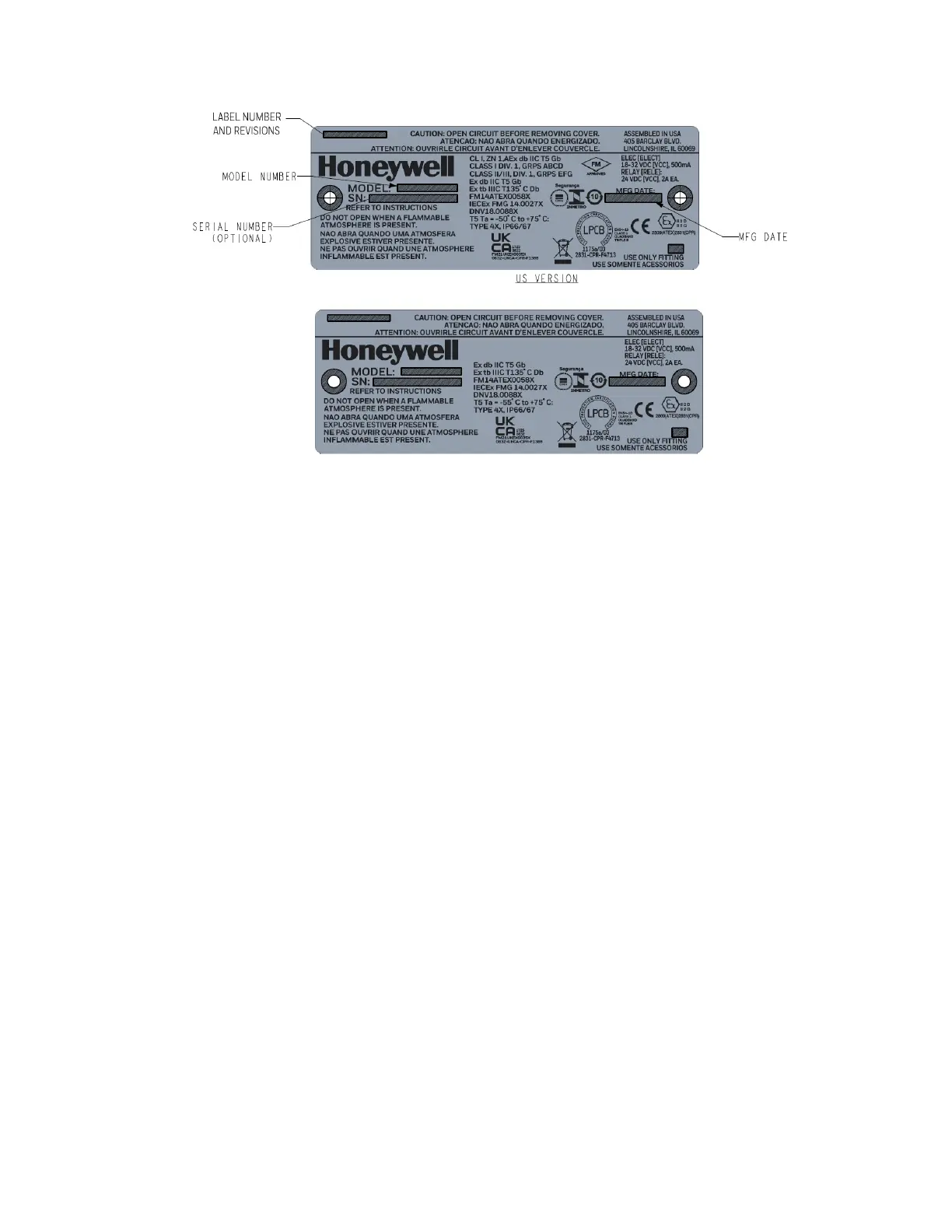

Generic Nameplate View
Electrical Ratings
l Test Lamps (battery powered): 12 VDC, 600 mA
l SS Series: Max 32 VDC, 75 mA; Relay 24 VDC, 1 A
l FS10: 12 VDC; 60 mA
l FS10-R-A: Max 29 VDC, 120 mA; Relay 24 VDC, 1 A
l FS20X and FS24X Series: Max 32 VDC, 150 mA; Relay 24 VDC, 1 A
l FS20XP and FS24XP: Consumption 18 - 32 VDC, 500 mA max; Relay 24 VDC/AC, 2 A
maximum
