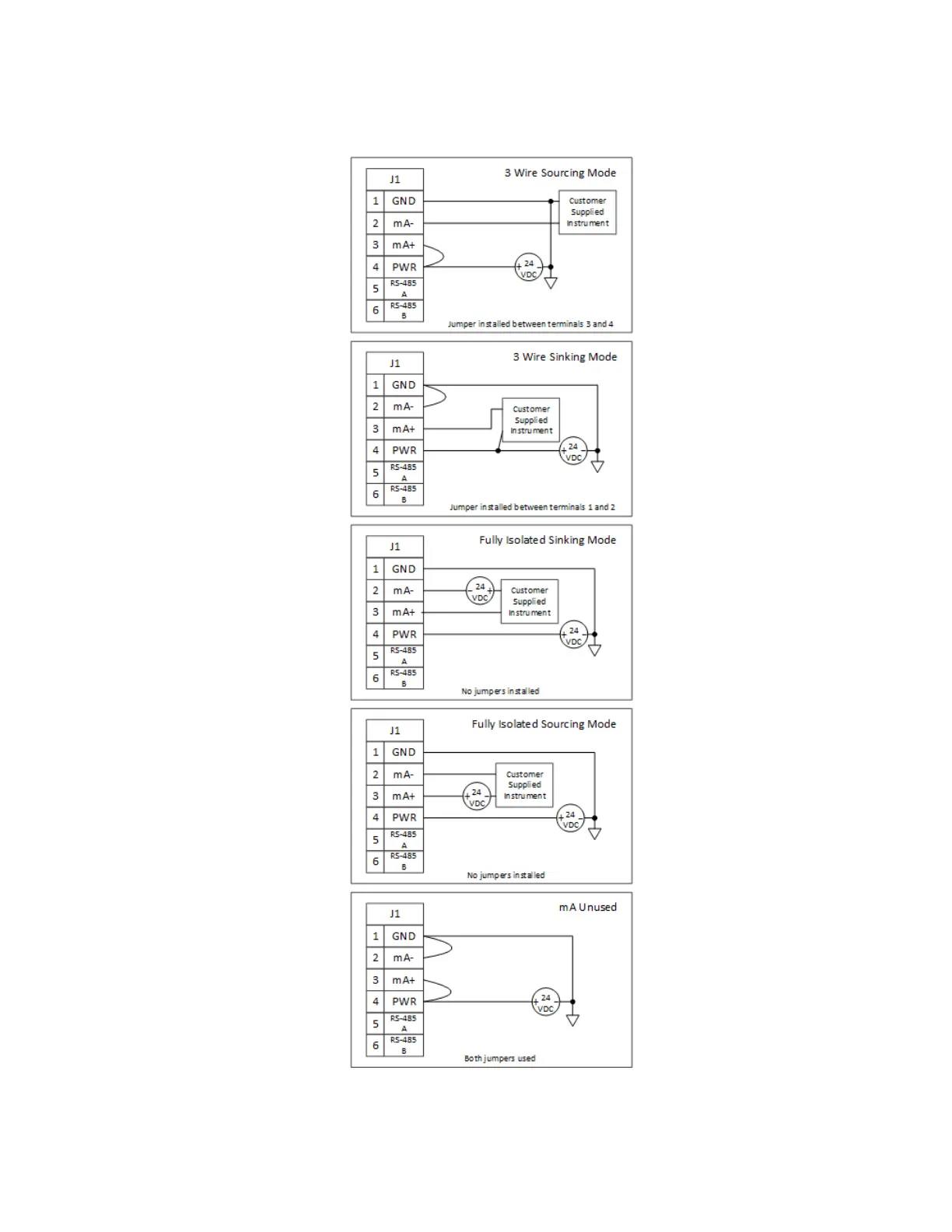

Wiring Configurations

There are multiple ways to configure the current loop on the detector. Consult the User Manual for

specifics on each of the methods shown below.
