HART®: The FS24XPlus™ Flame detector has HART® 7 communication; registered with FieldComm
Group, EDD/DTM.
Mean Time Before Failure: >10-year MTBF with a commonly used database (e.g. MIL-217, MIL-
217D, or Siemens SN29500). Two calculations - All components and only safety critical components.
Mounting Bracket: There are 3 mounts available: SM4 (standard), SM4-M (marine), and Tank Mount.
Enclosure: Diameter: 125 mm (4.92 in) x 115 mm (4.52 in) deep; Two M25 X 1.5P or two ¾’’ NPT
conduit entries.
Window size diameter: 79 mm (3.11 in)
Local notification indicator: LEDs HALO Light ring. Shows instrument status.
HALO is visible at 50 ft. in daylight conditions. Suitable for indoor and night applications.

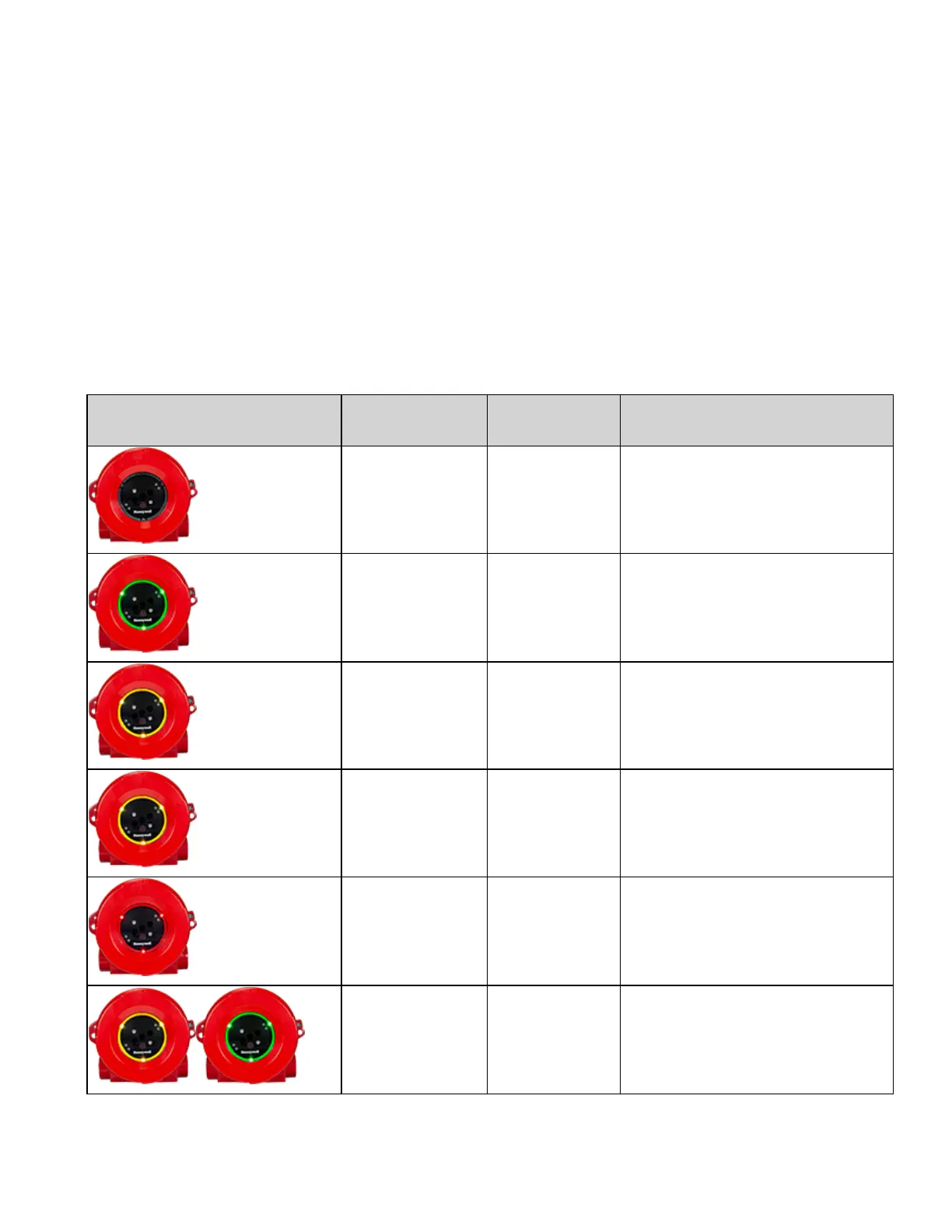

HALO flash patterns during operation:
Illustration State
Default Pat-
tern
Optional (settable) Pattern
Off or de-
energized
Off Same
Normal
Operation, No fire
Mostly off,
flashing Green
every 5 seconds
Off
Inhibited Solid Yellow Same
Fault
Flashing Yellow
every second
Same
Alarm Solid Red Flashing Red
Warning
Flashing Yellow
and Green
Alternate
Same

Honeywell FS24X Plus Specifications

General

Brand	Honeywell
Model	FS24X Plus
Category	Measuring Instruments
Language	English
