30 Series Network Video Recorder User Guide
86

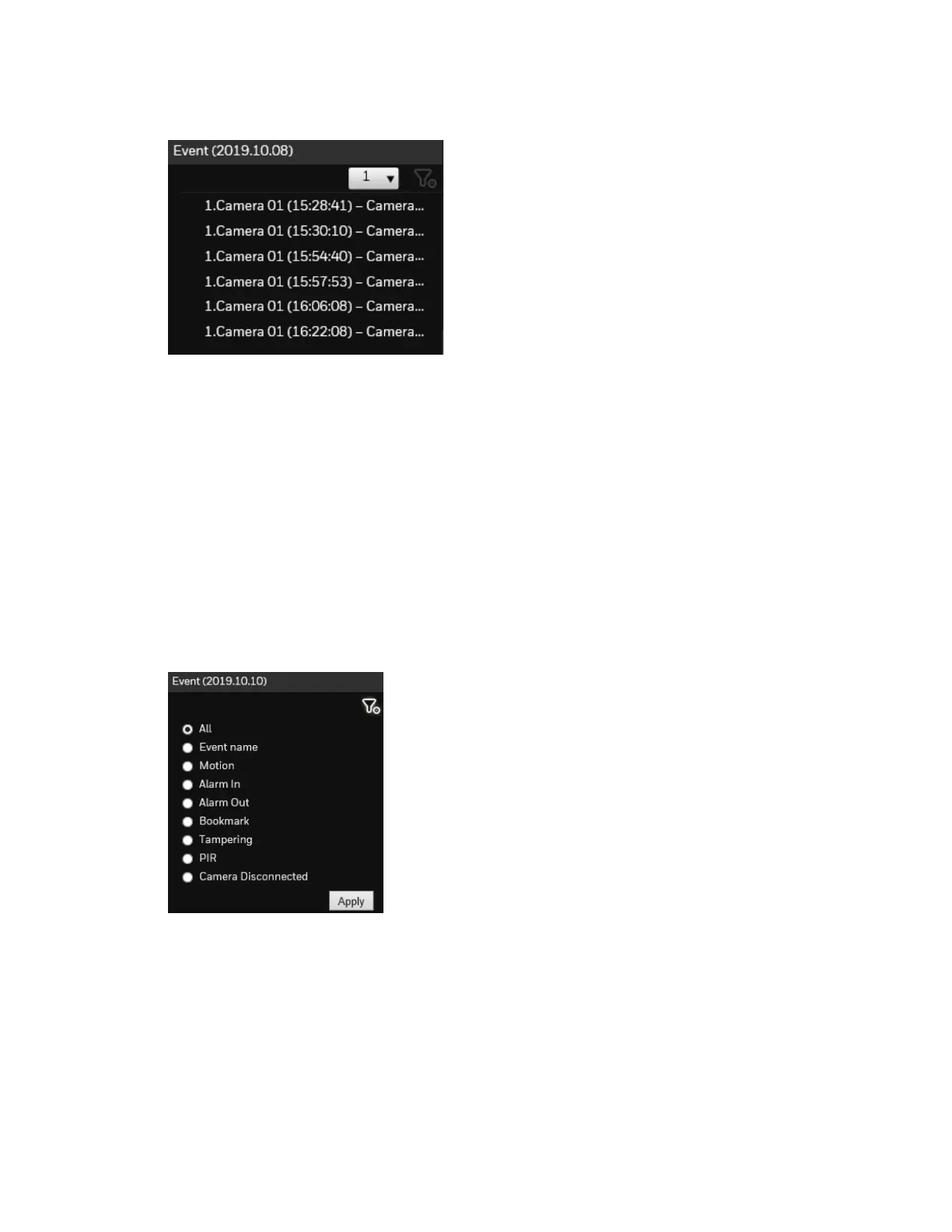

Figure 7-18 Event Panel
• A playback button will be available with an event-triggered recording. The event panel in
the Playback window also supports the List mode and Icon mode that are similar to that
in the Liveview window.
• There can be numerous alarms occurring in a day. Use the page selector to display
different pages of event entries. Up to 200 entries can appear on one page. Note that the
new events that occurred seconds or minutes ago may not be instantaneously listed on
the page.
Event Filter
Use the event filter to find out specific events. Use the check circles below to narrow down
your search criteria by event name or event type by Motion detection, Alarm input, Alarm
output, Tampering, PIR, or those manually marked down as Bookmarks.
Figure 7-19 Event Filter
Settings Screen
The settings screen is identical to those found in the local settings. See Settings on page 29
for more information.
