Honeywell HN300401 Series User Manual

Getting Started
7
Devices Connection

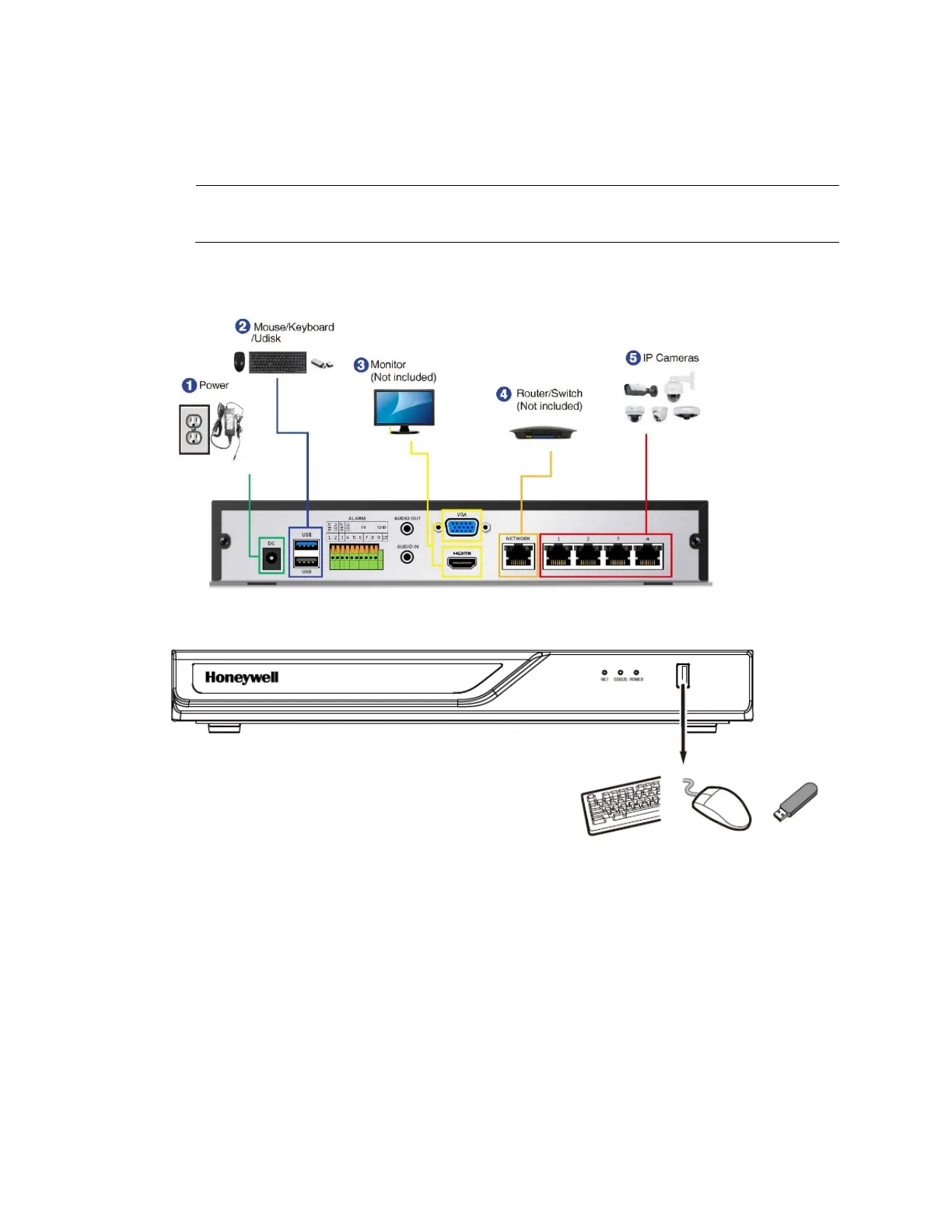

The following diagram shows a typical NVR connection:
Note
There’s no device connection on the front panel for 4 video channels
(HN300401xx).
Figure 2-1 Devices Connection (HN300401xx)
Figure 2-2 Devices Connection (HN300802xx/HN301602xx)
