Settings
43

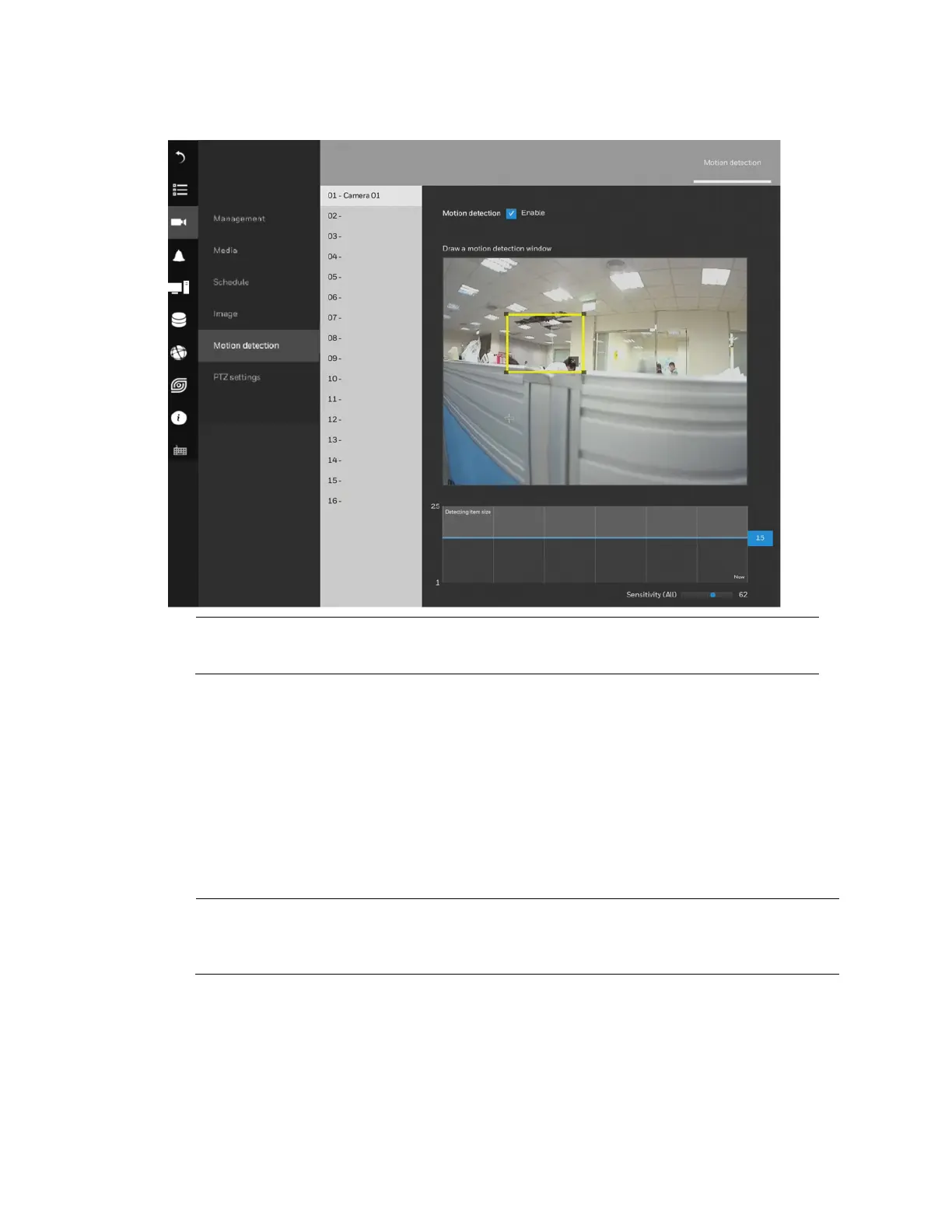

Figure 6-17 Motion Detection
Note Up to 5 ROI windows can be created for a camera.
To set up a detection window:
1. Select a camera by a single click in the camera list.
2. Click and drag to draw a rectangular detection window.
3. Pull the detection area level up to a preferred position. An object must be larger than the
detection area to trigger an alarm.
4. Select a Sensitivity level using the slide bar.
5. Click Apply for the configuration to take effect.
Note
To have recordings on event trigger, you need to set up event schedule and
create regular events at first. Please see Schedule on page 39 and Creating
an Event on page 44.
Setting-Camera-PTZ settings
Please see Configuring PTZ Settings on page 19.
