30 Series Network Video Recorder User Guide
78
• Snapshot: the camera's image snapshot is replenished every 5 minutes. If a camera is
disconnected, the last image taken will be used to represent a camera.
• Camera index & Camera name: Placing the mouse cursor on top of a camera text
displays the camera index number and the camera name. Click on the camera index to
display the information box.

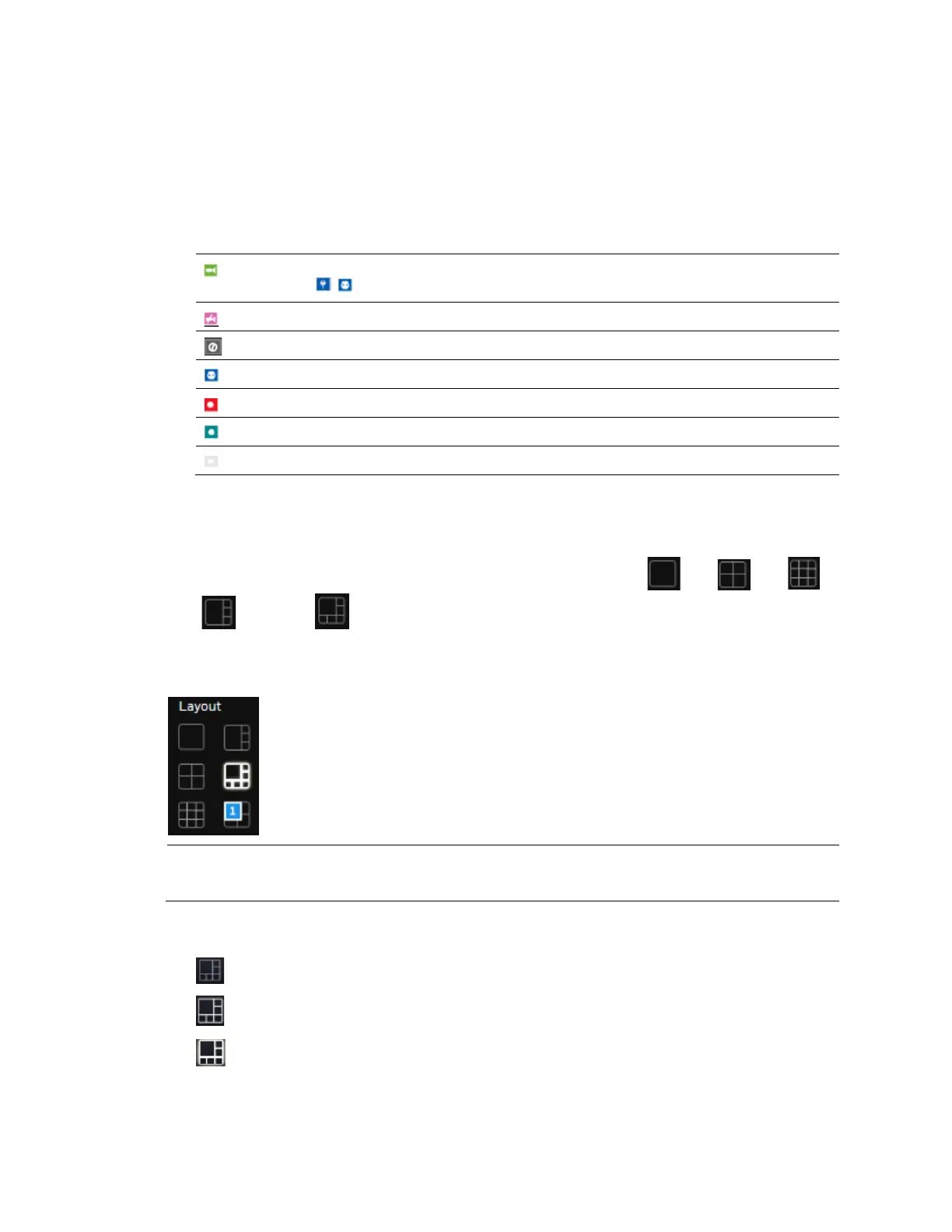

• Status:
Online: the online status can be accompanied by the Alarm In/Alarm Out
icon .
Offline: camera is disconnected.
An unconfigured camera instance.
Alarm input is triggered.
Connected and recording video to system storage.
Connected with live streaming.
Disconnected or trying to establish a connection.
Layout
By default, 5 typical layouts are provided for the user. They include: 1x1, 2x2,
3x3, 1V+3, and 1M+5. System default is the 2x2 layout. Cameras that do not fit into
the first page of a layout, say, a 3x3 layout, will be displayed on the succeeding layout pages.
Figure 7-7 Layout
Note
The layouts for 4/8/16 CHs NVR are different. Please refer to the actual
NVR you used.
Each functional button on the screen is activated by a mouse hover. For example, the below
states designate user's operation on a button:
• : not selected.
• : moused over and is ready for selection.
• : selected and is taking effects.
