30 Series Network Video Recorder User Guide
40

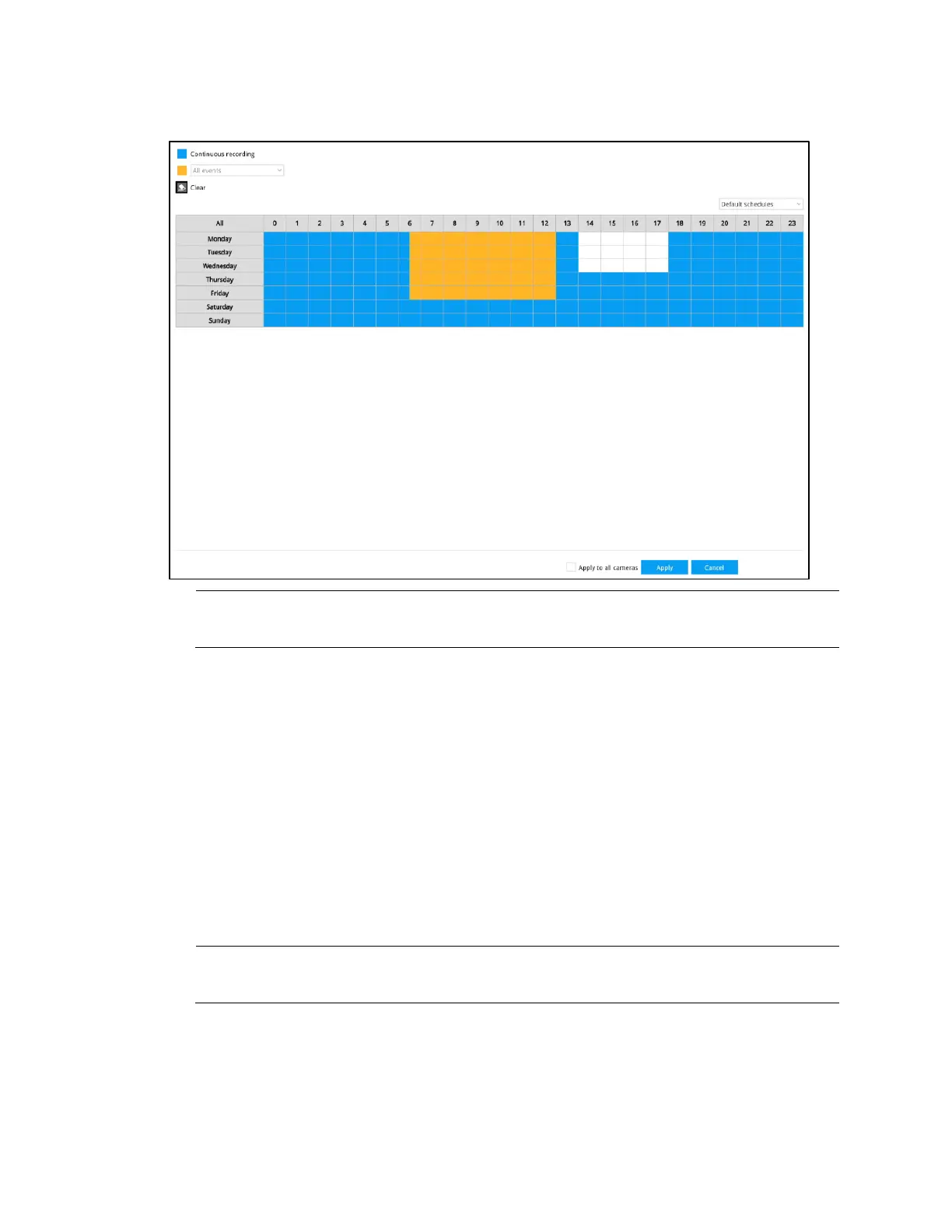

Figure 6-14 Schedule
Note
By default, all video feeds from cameras are recorded at all time
(highlighted in blue).
You can modify the recording task using the schedule tool:
1. Select a camera and click to select a recording condition's checkbox–Continuous
recording, Event recording and Clear (no recording).
2. Click and drag on the cells on the time table. For example, to stop the recording during a
period, select the Clear checkbox and move the cursor across the time table. The
minimum unit on the table is half an hour.
3. You may also use the scheduler tool on the right to facilitate the process.
a. Select a condition checkbox, and then select the All day, Work hour, Off duty,
Working day, Weekend options to apply a time selection.
b. Repeat the process on individual cameras or select the Apply to all cameras if the
schedule can apply to all cameras.
4. When the configuration is completed, click Apply.
Note
Event-triggered recording and continuous recording cannot be taking
place at the same time.
