CLSS Gateway - Installation and Users’ Manual | P/N:LS10248-000HW-E | REV. F | FEB/11/2022 126
Gamewell-FCI Panels Connecting to the Panels
• Connect the RxD wire to the TB6-4 pin.
Power Connection
On the Gateway Side
Ensure that the power cable is connected with the power port of the gateway.
The power port is labeled as 7 in the Figure C.13.
On the Panel Side
• Connect the Red wire to the +ve pin in the TB3 port.
• Connect the Black wire to the -ve pin in the TB3 port.

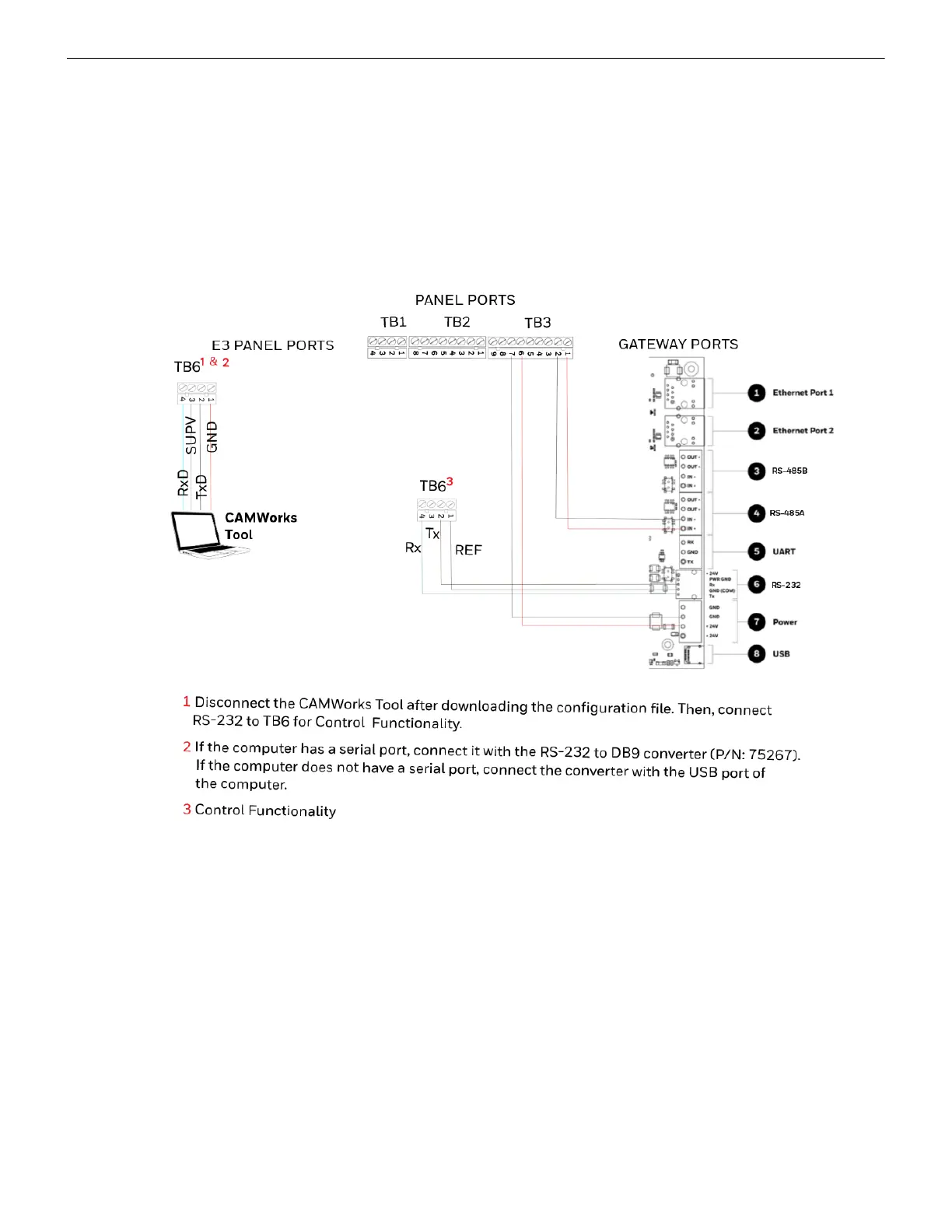

Figure C.14: E3 Panel: Gateway Connections
To Next Page
