System Block Diagram
The INNCOM Room Automation System (IRAS) displays guest services requests such as pri-
vacy, makeup room, butler, and room service requests. When the e7w Thermostat is con-
nected to the INNcontrol 3 or INNcontrol 5 software on a central server with the Deep Mesh
Network (DMN), the e7w Thermostat supports automated Customer Relationship Manager
(CRM) updating the staff reporting functions.

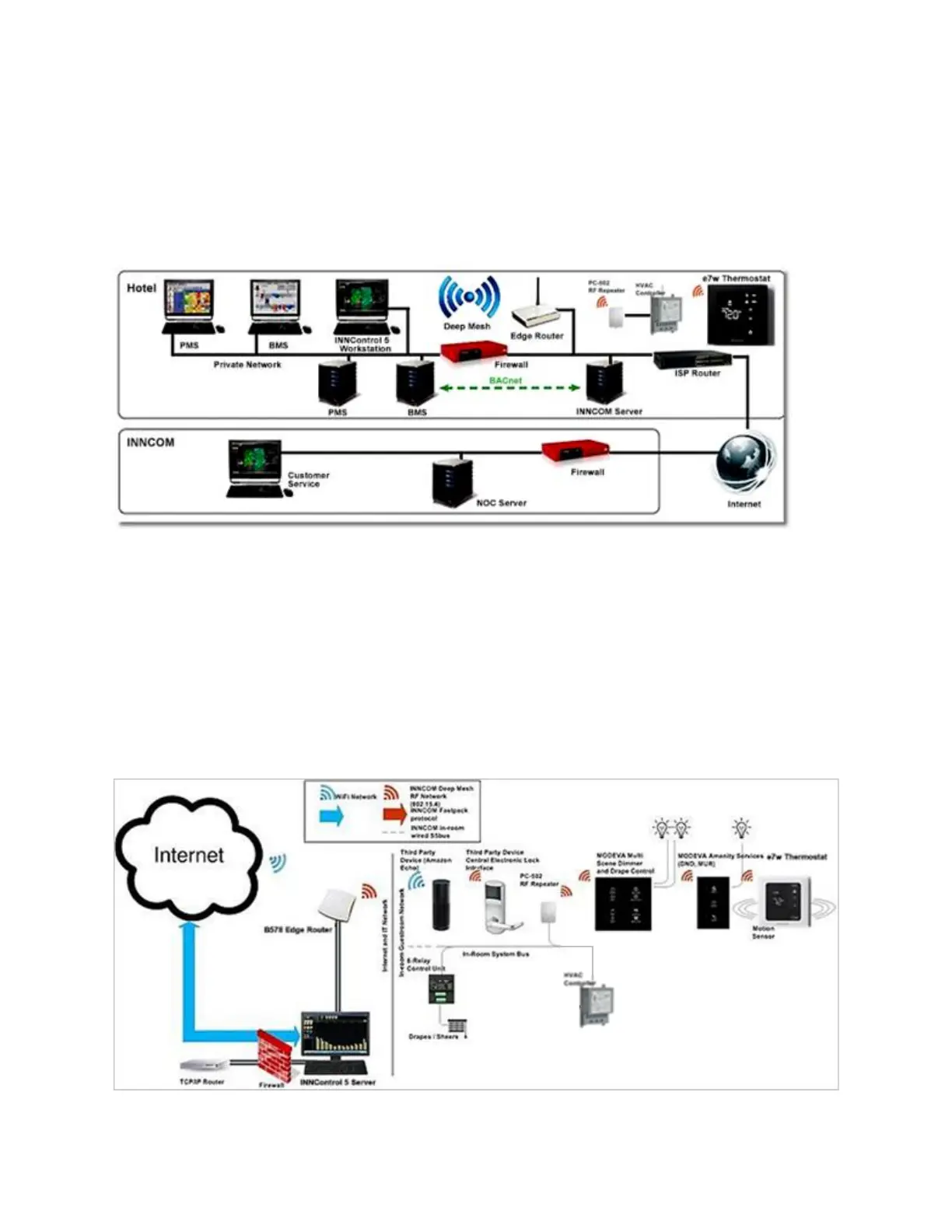

Figure 1: System Block Diagram
e7w Thermostat Application
Distributed Load Application
The e7w thermostat is designed to support intelligent distributed load control and actuation.
This is the primary architecture found in the domestic retrofit and new construction markets. In
the diagram below, the e7w thermostat communicates with the PC502.4G room gateway and
other in-room devices (like MODEVA switch) via. RF. The PC502.4G room gateway further com-
municates with the Central Electronic Locking System (CELS) to send all the in-room data to
the INNControl3/ INNControl 5 server via. B574/B578 edge router.
Figure 2: Distributed Load Application
