2. Use UP/DOWN arrows to change value (ranging from 11 to 26).
3. Press FAN, the unit beeps to confirm the value stored in the memory and display back to rF.
4. Press MODE to check the rF value.
5. Press FC to return to the Initialization Mode.
After returning Initialization Mode, e7w displays a Target Temperature value on the display screen.
Then e7w begins to communicate with the default address of its HVAC Partner using the defined
Room ID, RF Channel and PAN ID. Default INNCOM HVAC partner address is 14.
Service Mode
To enter Service Mode, follow the below steps:
1. Press and hold FC key (for 5 sec)
2. Press and release MODE button.
3. Press and release FAN button.
4. Release FC key.

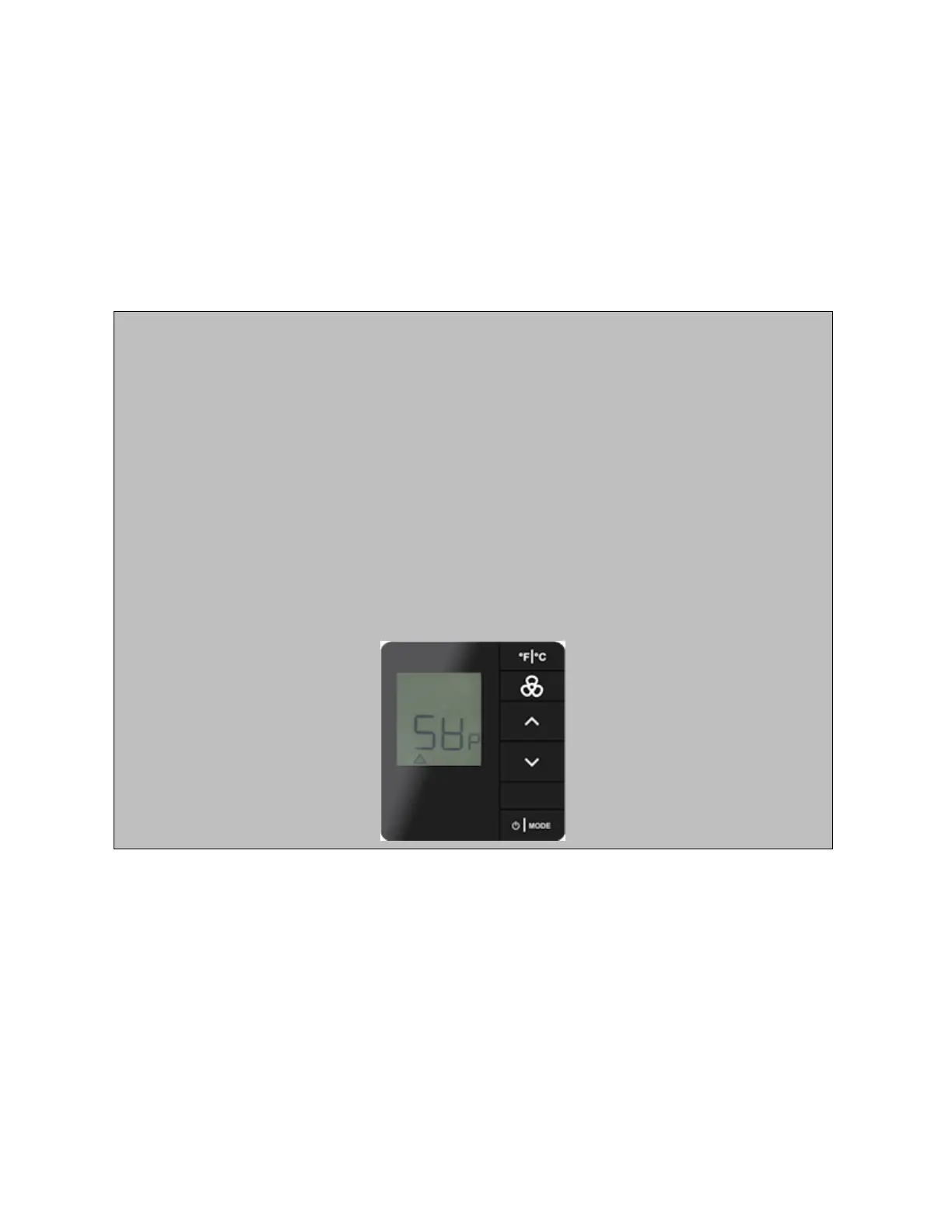

This action displays Parameter and rld value on the screen.
NOTE
Then e7w will start searching for other HVAC partner by displaying RF channel 26, 25, 24 down to
11 if:
• The HVAC partner (example X47) has different address other than 14
• The RF gateway device (example PC502.4G) which will communicate between e7w and
its HVAC partner is not configured or installed to the same Room ID, RF Channel, and
PAN ID as e7w
If no HVAC partners are found, a triangle symbol with exclamation mark inside displays on bot-
tom of the screen.
Refer to applicable commissioning documents to confirm the correct HVAC partner Address or
proceed to the next section to configure the RF Gateway device which will communicate between
the e7w and its HVAC partner.
