e7w Thermostat Wiring
The battery powered wireless e7w functions as a programmable DDC thermostat, automati-
cally adjusting FAN speeds and valves to achieve set temperature.
Note: Guests can manually select heat or cool by pressing the OFF/AUTO button and cycling
through OFF, AUTO, HEAT and COOL).
The e7w thermostat works in conjunction with an HVAC controller partner such as an INNCOM
X47.L.P/ X47H.P to send room temperature updates, temperature change request, humidity
levels and motion detection.
Wiring X47.L.P (24VAC) with e7w Thermostat
In the below diagram, the e7w Thermostat communicates with the PC502.4G room gate-
way and other in-room devices (like X47.L.P 24VAC HVAC controller) via RF.

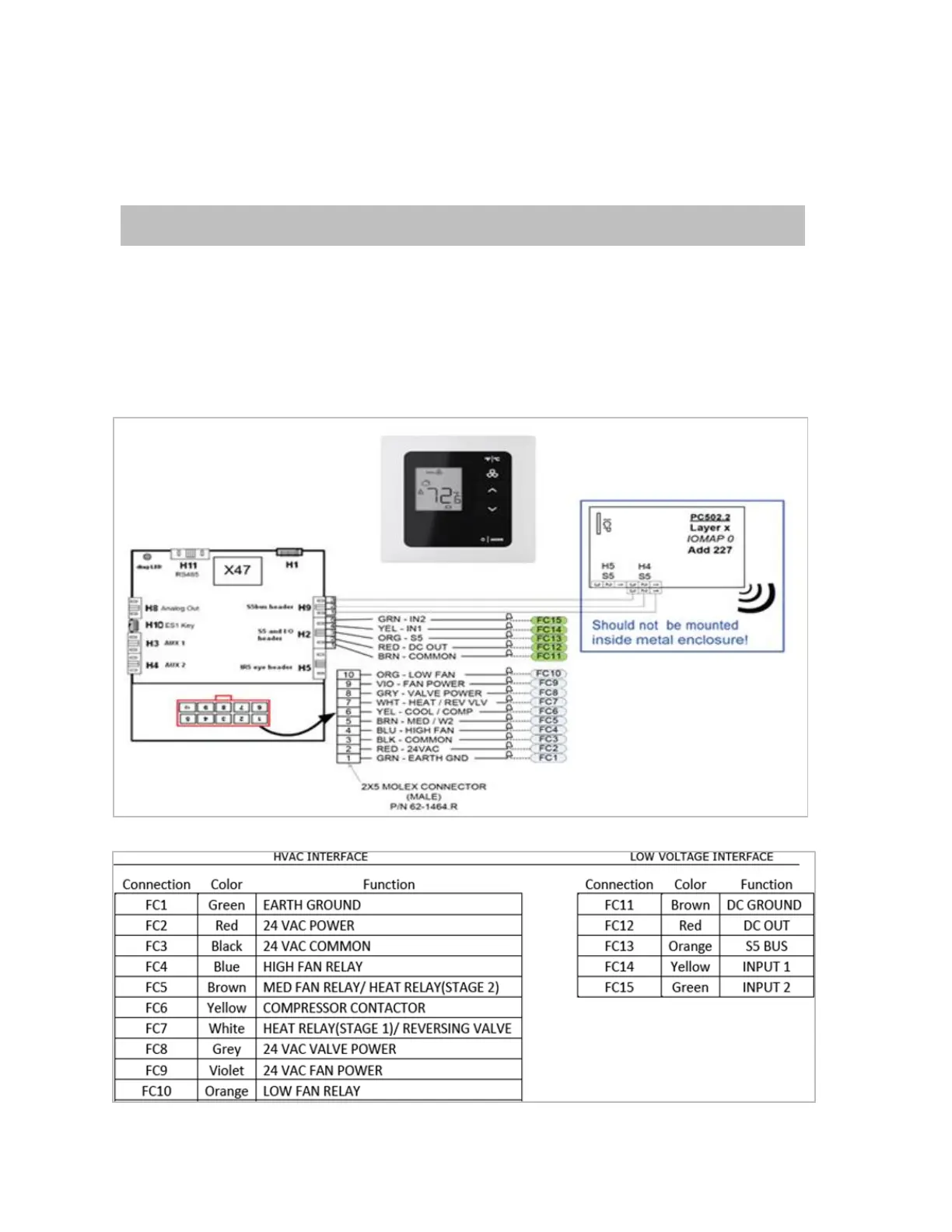

Thermostat Wire Connections
