PNG – Verifying Device Communication (PnG)
Use the PnG (Ping) parameter to Ping a device with the defined address. This allows you to test, if the
device is communicating directly with the e7w via RF, or if the device is communicating through S5
bus to an installed RF device. Ping all the installed devices from the e7w, while commissioning a
room.
1. Enter SERVICE MODE
2. Press UP/DOWN arrow buttons to select PnG.
3. Press MODE button. This action will display the PnG value and will be 000 by default.
4. Use the UP/DOWN arrow button to change the displayed value to the P5 address to be
pinged.

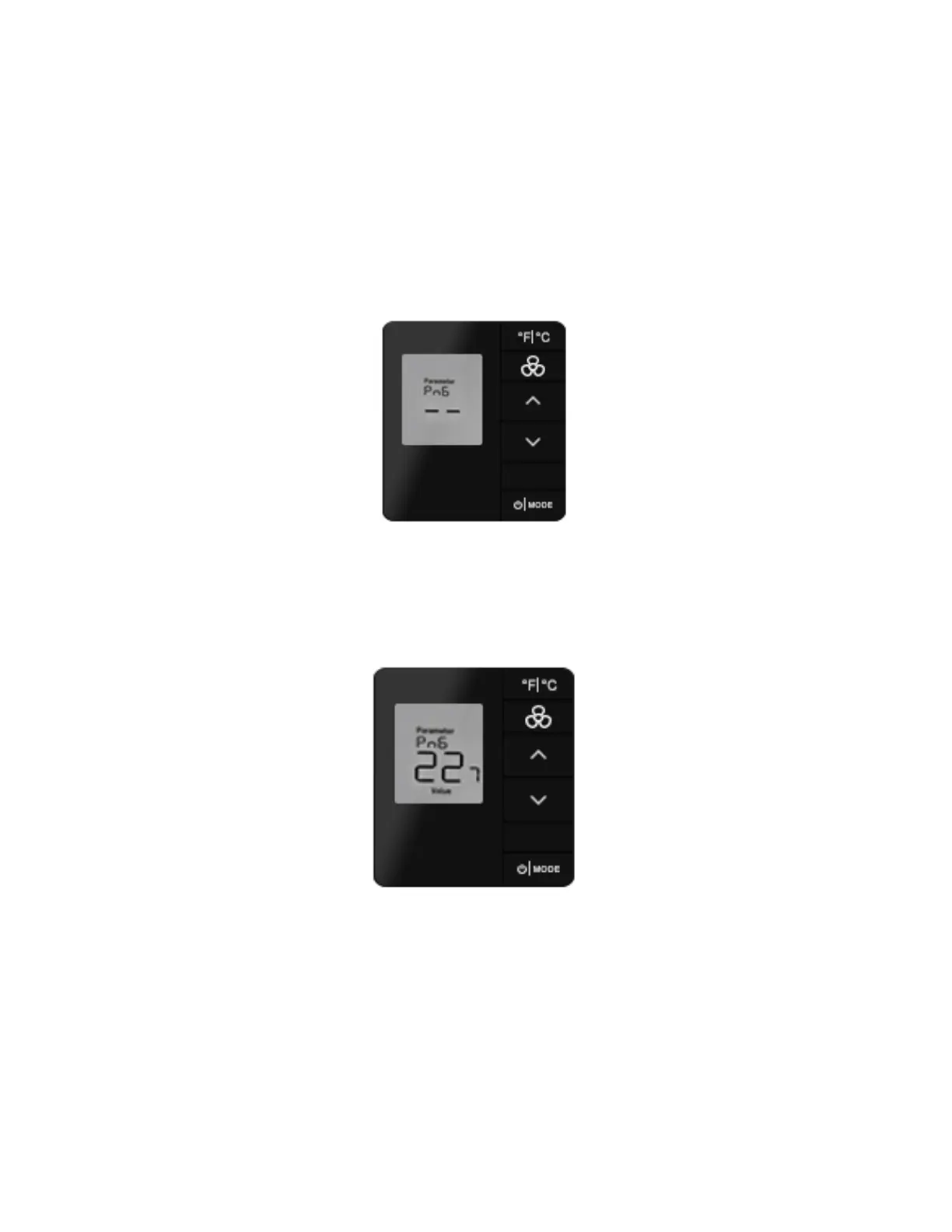

For example, refer below figure which shows address 227.
5. Press the FAN button to start the Ping.
The e7w will constantly send 4 commands to read the below values from the target device
until the FC key is pressed. A successful ping will show the following four parameter val-
ues in sequence:
1. Device Type Code
2. Major SW Version
3. Minor SW Version
4. AGC Level of Pinged Device
