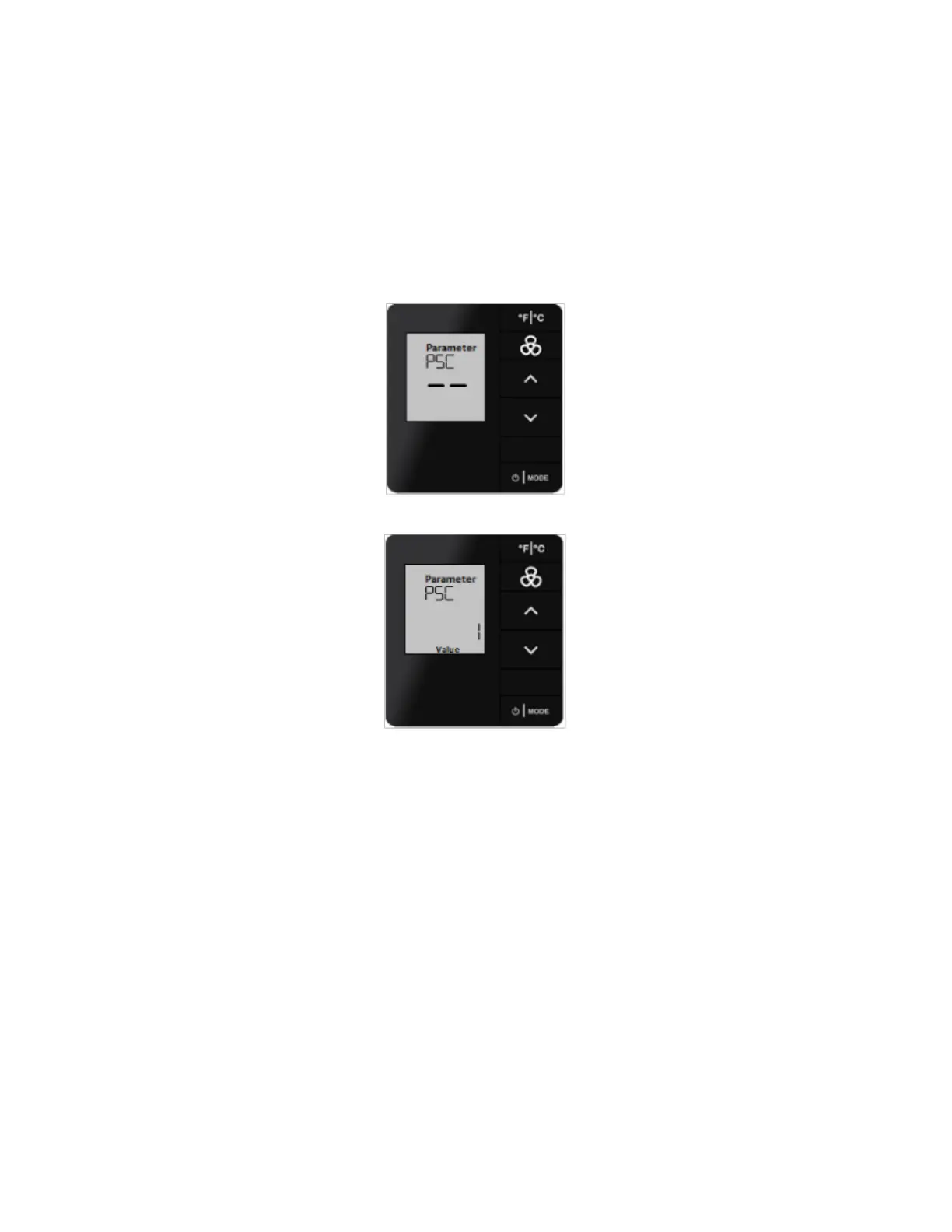

P5C – P5 Channel Parameter (P5C)
Use P5c mode to view or set the P5 Channel of e7w. It is by default set as 1. All INNCOM devices have
a P5 Channel setting that can be set from 1 to 7. This setting can be used to segregate devices so
that only certain devices can communicate with other certain devices. To communicate with each
other, the devices must be set to the same P5 Channel.
1. Enter SERVICE MODE
2. Press UP/DOWN arrow buttons to select P5c.
3. Press MODE button. This action displays P5c value, ranging from 1-7.
4. Use the UP/DOWN arrow buttons to change the P5c value.
5. Press the FAN button to store the value. The e7w play beep sound.
6. Press the FC button to return SERVICE MODE or press UP arrow button to display next
mode
Or
Press the FC button twice to exit SERVICE MODE
PA – PA Partner Address Parameter (PA)
Use PA mode to set default address used by the HVAC partner of the e7w. Any messages sent by the
e7w are sent to this Address. If the e7w HVAC partner is configured with a different address, you must
change the PA value to match that address. For example, if X47 with address 224 is used as the HVAC
partner of e7w, then PA value should be changed to 224.
1. Enter SERVICE MODE
2. Press UP/DOWN arrow buttons to select PA.
