Honeywell INNCOM e7w

INNCOM e7w THERMOSTAT USER GUIDE
13
31-00302-01
S541.RF
Wireless Door Switch / Transmitter
04-1096.FL
e7 Remote Thermistor
201-503
PC-503 Configuration Tool used with EngINN
203-250
RS485 DM485 Communication Module
32324212-001
Thermostat Screw Kit Assembly
62-1455
Thermostat 100-277VAC Harness
* Thermostat purchase includes Installation Kit, Screw Kit Assembly and Harness.
** PC502 and X47 are required for e7w to interface with HVAC system
Display Functions

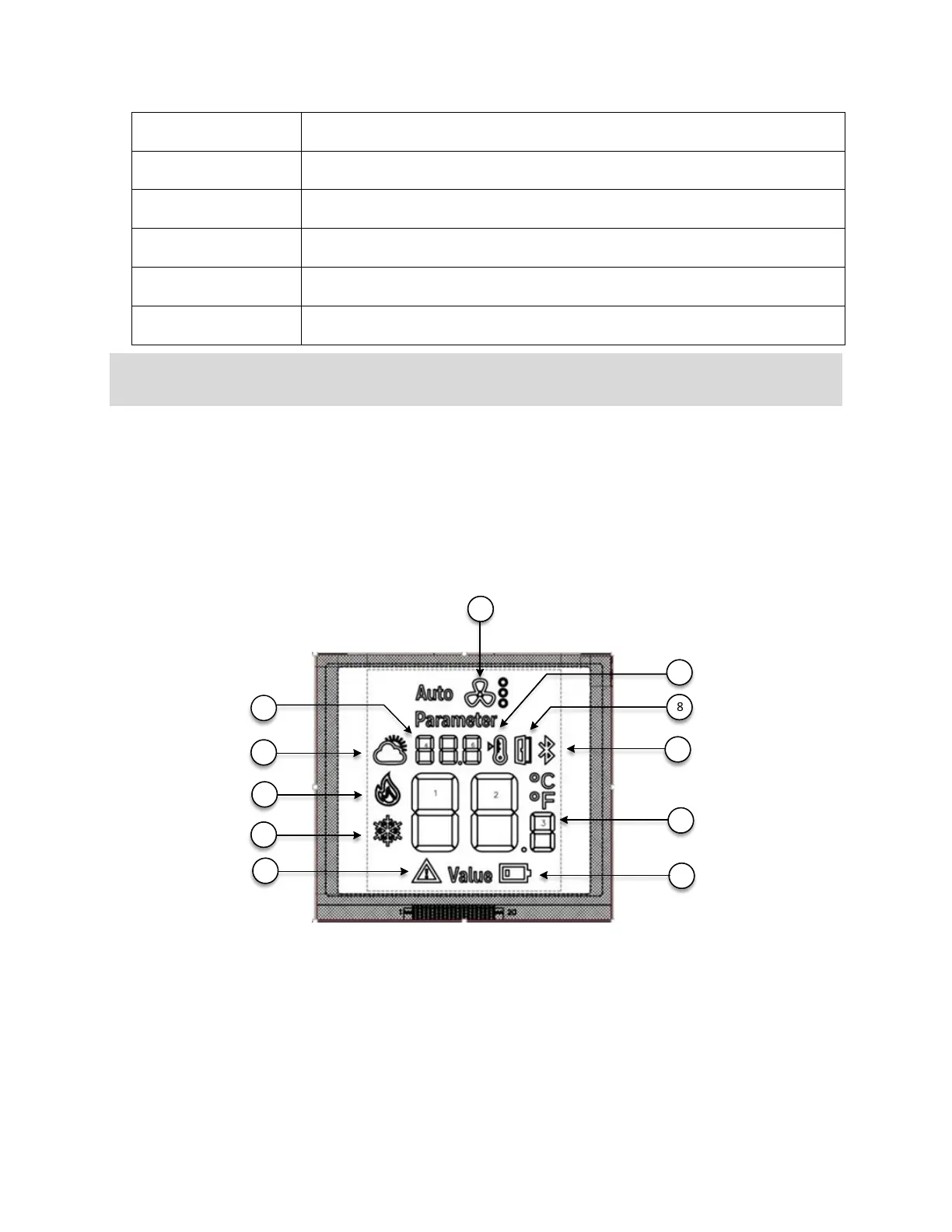

Characters in the display are shown in the below figure for reference. The characters will
be illuminated in certain combinations to support all the intended applications. Whenever
the guest views any temperature in Fahrenheit, only whole numbers (no decimals) should
be displayed.
1111
55
44
66
99
11
1010
88
77
33
Other Temperature
Outside Temperature
Cool Mode
Heat Mode
Equipment alarm
Measured Temperature
Door or Lanai
Bluetooth
Target Temperature
Low Battery Alarm
2
Fan Speed (Low, Medium, High)
