PRR – Remote Motion Sensor (Prr)
Use Prr mode to test the functionality of a PIR Motion sensor connected to an INNCOM room device,
such as an X05B. For this test, the e7w looks for 0x000351 PIR Active and 0x000350 PIR In-Active
messages being sent from the INNCOM in-room device with externally connected motion sensor.
1. Enter SERVICE MODE

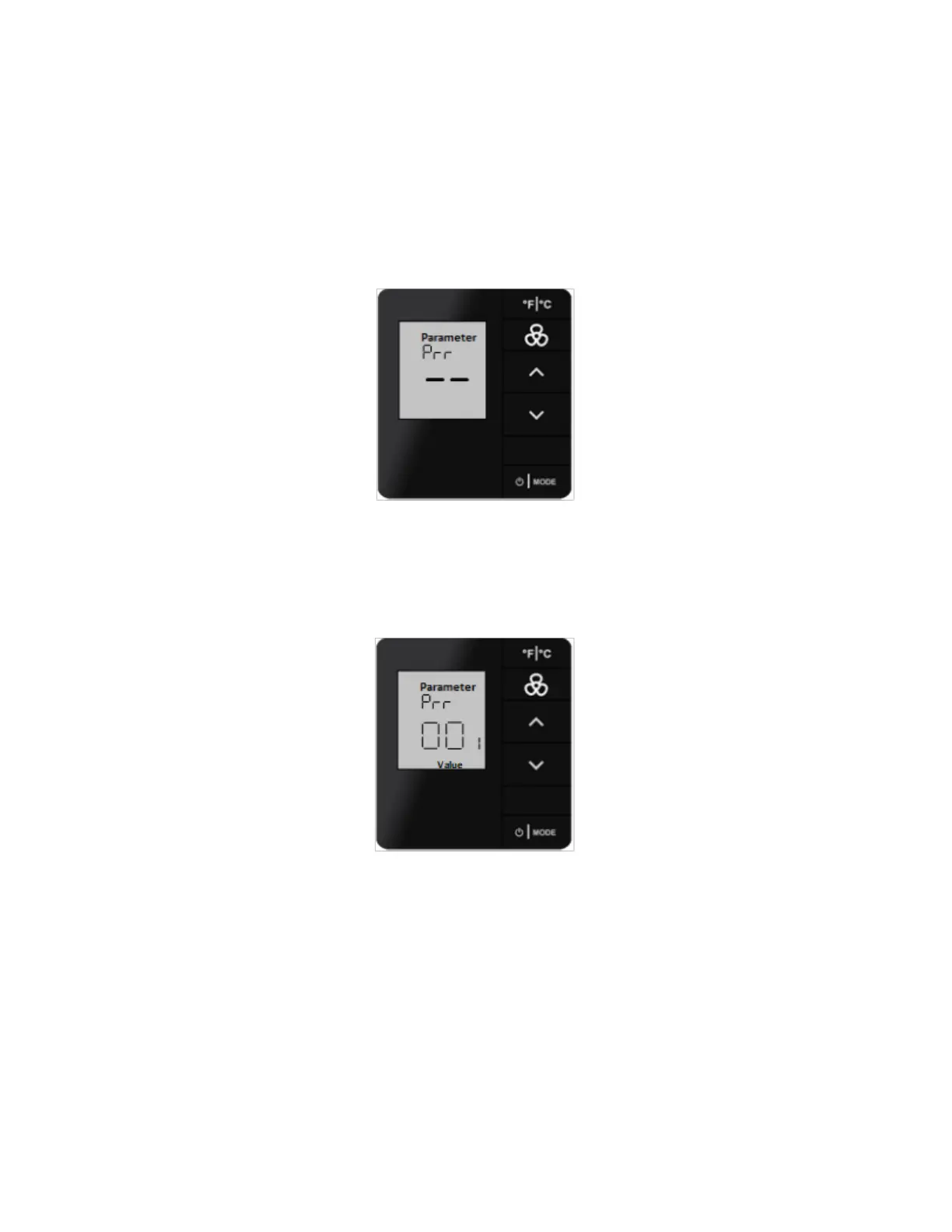

2. Press UP/DOWN arrow buttons to select Prr.
3. Press MODE button. This action displays Prr value.
Create the motion in view of the remote PIR device. The remote PIR device should send a
0x000351 when it senses motion and 0x000350, when the motion stops. When the e7w
sense the 0x000351 followed by the 0x000350, it will increment the displayed count and
a beep to indicate motion detection.
4. Press the FC button to return SERVICE MODE or press UP arrow button to display next
mode
Or
Press the FC button twice to exit SERVICE MODE.
