9. Press FAN button to make the e7w send an Open Bind window command to the defined
address from step 8.
The command makes the target device to open a two minute bind window. You must com-
plete the bind process within the 2 minutes.
10. Check the LED status on the PC502/Evora/RF Proxy device. It should start flashing
twice times per second, indicating it has opened its 2 minute bind window.
If binding a Timelox lock, place the “Discover” RFID card in front of the lock, or if Salto, con-
nect the 3 pin PPD cable to the lock to Bind the lock.
11. After, the Lock and Proxy were bound and the lock transferred its MAC address to the
PC502/Evora/RF Lock Proxy, the PC502/Evora/RF Lock Proxy will send 3 “sound
buzzer” requests into the room, then and RESET.
NOTE: Any device capable of sounding, its buzzer should beep / buzz three times.
12. Press the FC button to return SERVICE MODE or press UP arrow button to display next
mode
Or
Press the FC button twice to exit SERVICE MODE.
NOTE: For more details, refer applicable commissioning document.
VER – Verifying e7W Version (vEr)
Use Ver mode to check the e7w firmware version.
1. Enter SERVICE MODE

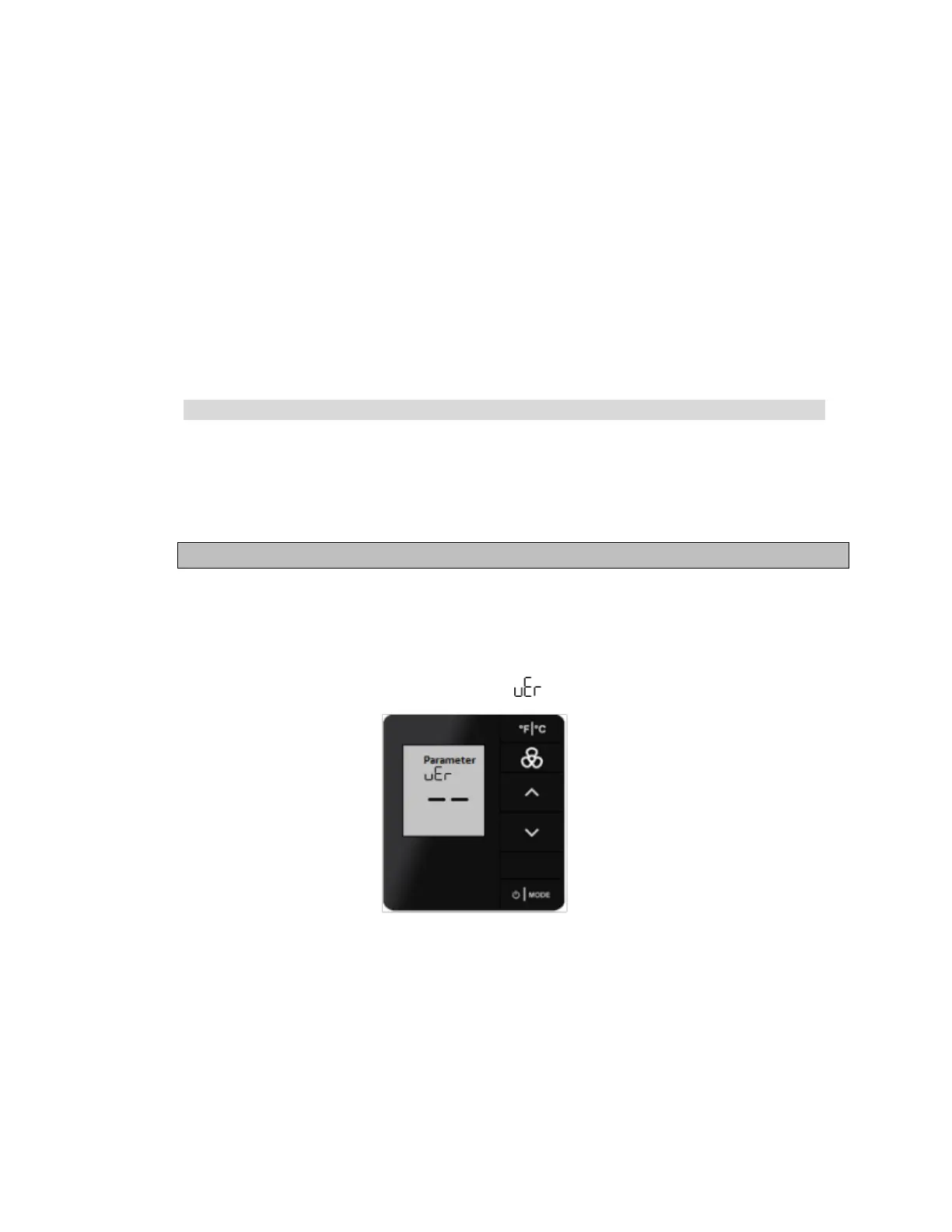

2. Press UP/DOWN arrow buttons to select Ver ( ).
3. Press MODE button.
This action displays the four digits of the e7w Boot Loader version.
bL will briefly be displayed, followed by the four digits of the Bootloader version.
4. Press the FC button to return SERVICE MODE or press UP arrow button to display next
mode
Or
Press the FC button twice to exit SERVICE MODE.
