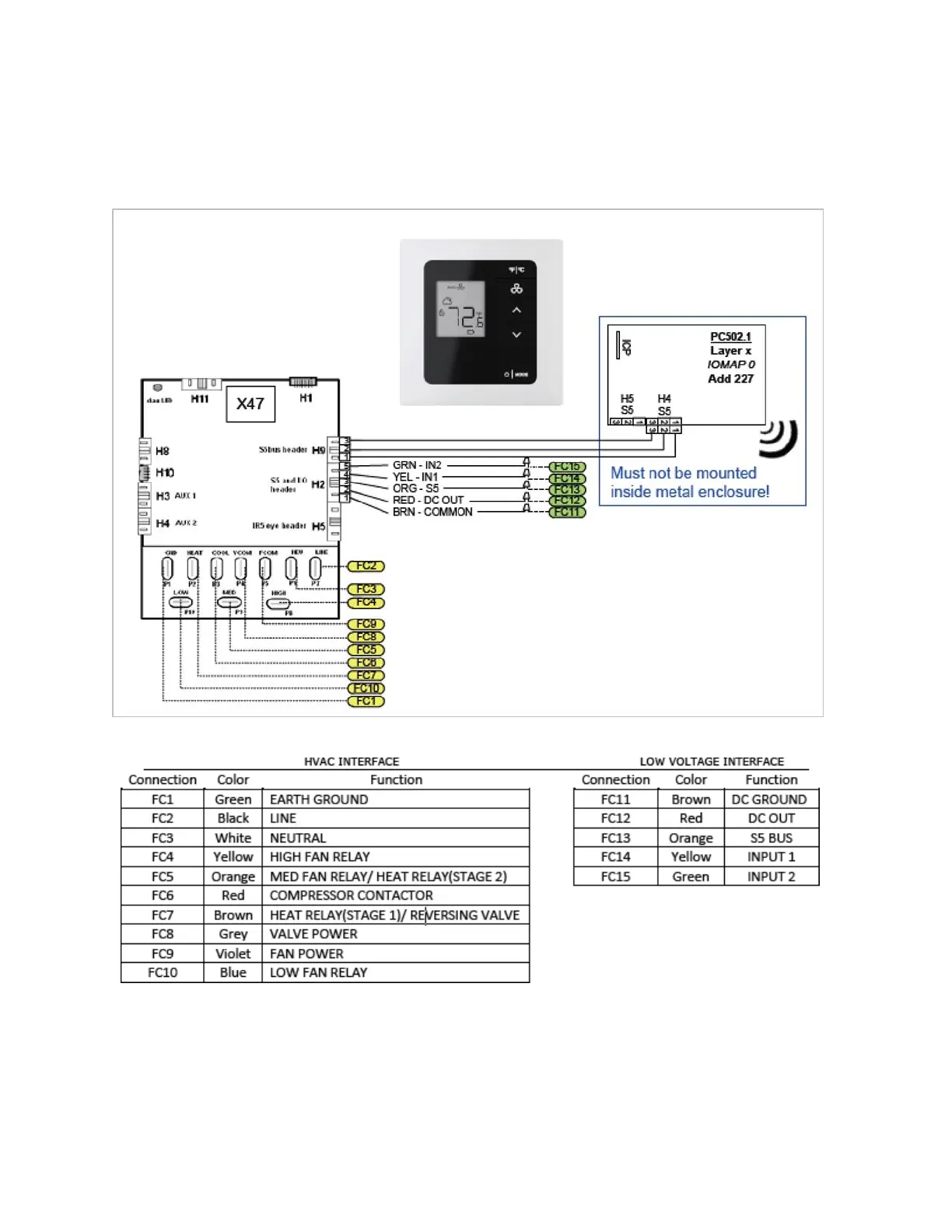

Wiring X47.H.P (120VAC) with e7w Thermostat
Below figure shows e7w Thermostat communication with PC502.4G room gateway and other devices
(like X 47H P, 120 VAC HVAC controller) via RF Channel.
Thermostat Wire Connections
