4. Close the door, the e7w buzzer stops.
5. Press the FC button to return SERVICE MODE or press UP arrow button to display next
mode.
Or
Press the FC button twice to exit SERVICE MODE

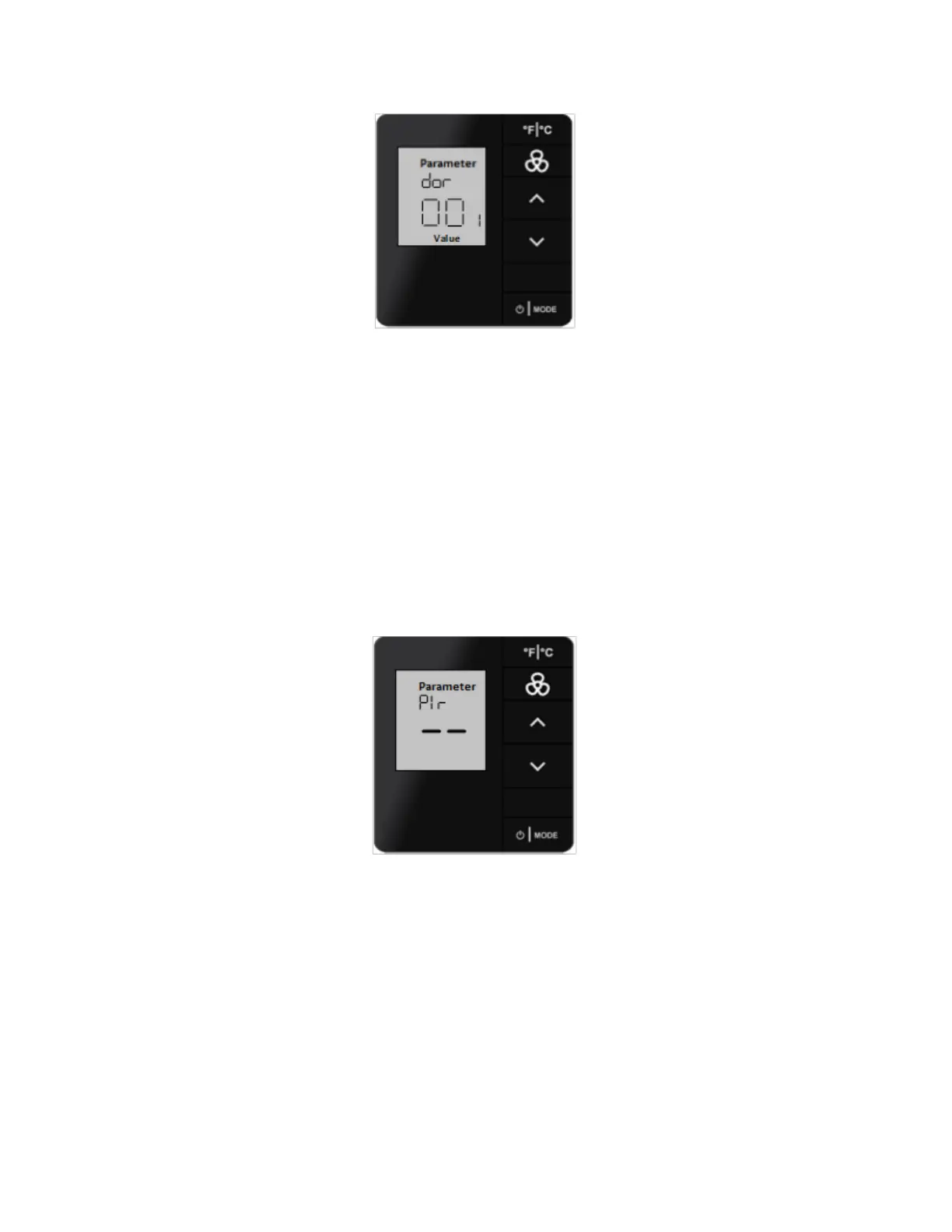

PIR – Verifying Motion Sensor (PIr)
Use Plr motion sensor to ensure that e7w inbuilt motion sensor is functioning correctly and identify-
ing good location of the e7w, for detecting guest movement in the room.
1. Enter SERVICE MODE.
2. Press UP/DOWN arrow buttons to select Plr.
3. Press MODE button. This action displays Plr value (O00 is the default Plr value displayed)
Walk sideways in the front of the thermostat, so that the PIR motion sensor can detect the
occupancy.
4. When the PIR sensor detects guest movement in the room, the e7w plays a beep sound and
increments the detected motion count displayed.
