Or
Press the FC button twice to exit SERVICE MODE
NOTE: For more details, refer applicable commissioning document.

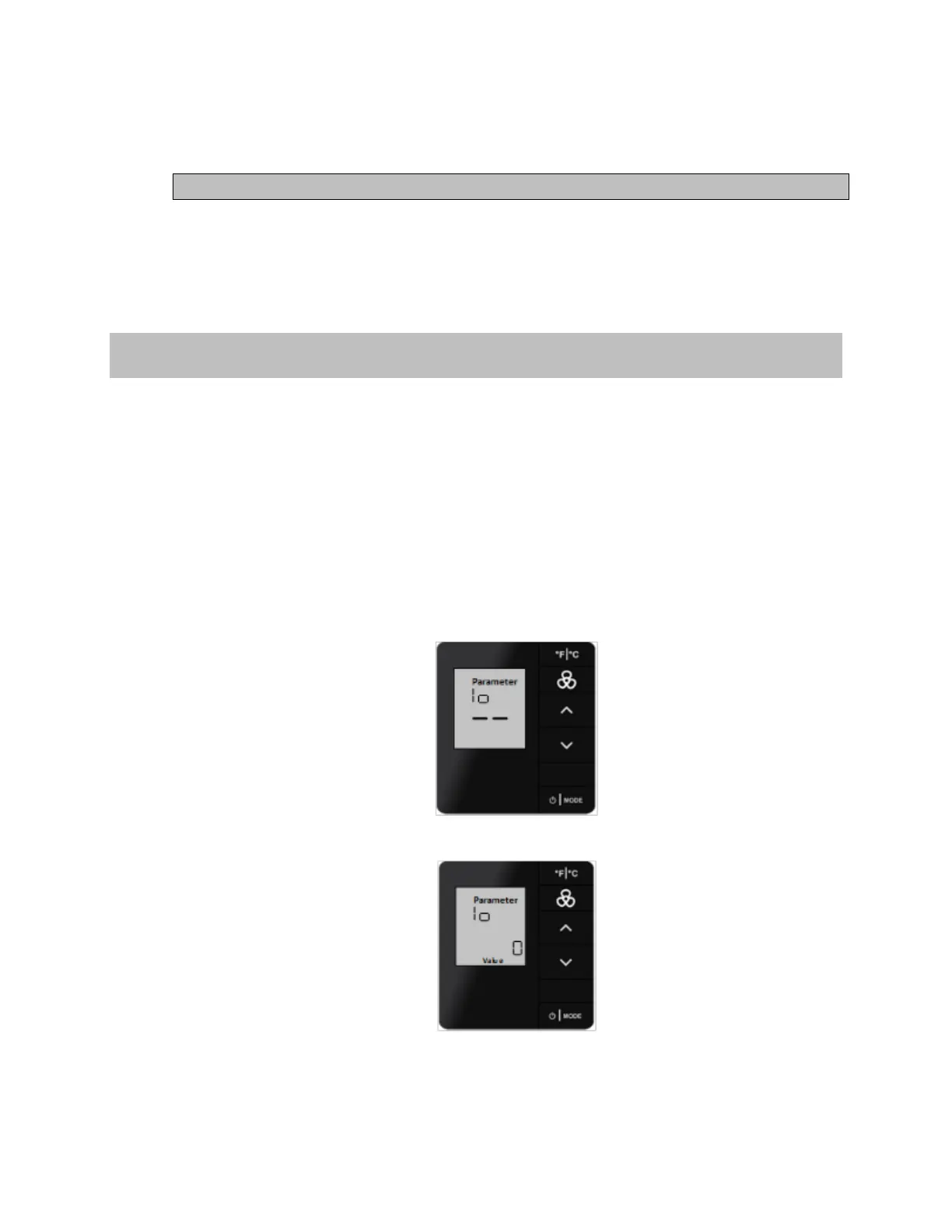

IO – Teaching A Device I/O Map (Io)
The Io parameter is used to bind the target device to the Room ID, PAN ID, and RF channel configured
in the e7w, while at the same time activating an I/O Map in the target device.
Follow the steps below to configure Io parameter:
NOTE: Before user start configuring IO mode, you need configure Room ID, PAN ID and RF Channel in
the e7w.
1. Enter SERVICE MODE
2. To prevent setting an unknown address into the target device, set Adr value to 0.
a. Use the UP/DOWN arrow buttons to select Adr.
b. Press MODE button to view the value, if the displayed value is non-zero, change
the value to zero.
c. Use the UP/DOWN arrow buttons to change Adr value to 0 and press FAN but-
ton.
d. Press FC button to return to Adr parameter.
3. Press UP arrow button to display next mode (i.e. Io mode).
4. Press MODE button. This action displays current I/O Map value.
5. Use the UP/DOWN arrow buttons to change Io value to the desired I/O Map.
To Next Page
