6. Press FAN to initiate a reverse bind,
Or
Press MODE to initiate a forward bind
Reverse Binding
Reverse binding is supported by device such as PC502.4G, S541.RF, K594/K595.RF. To
configure reverse binding, follow the steps below.

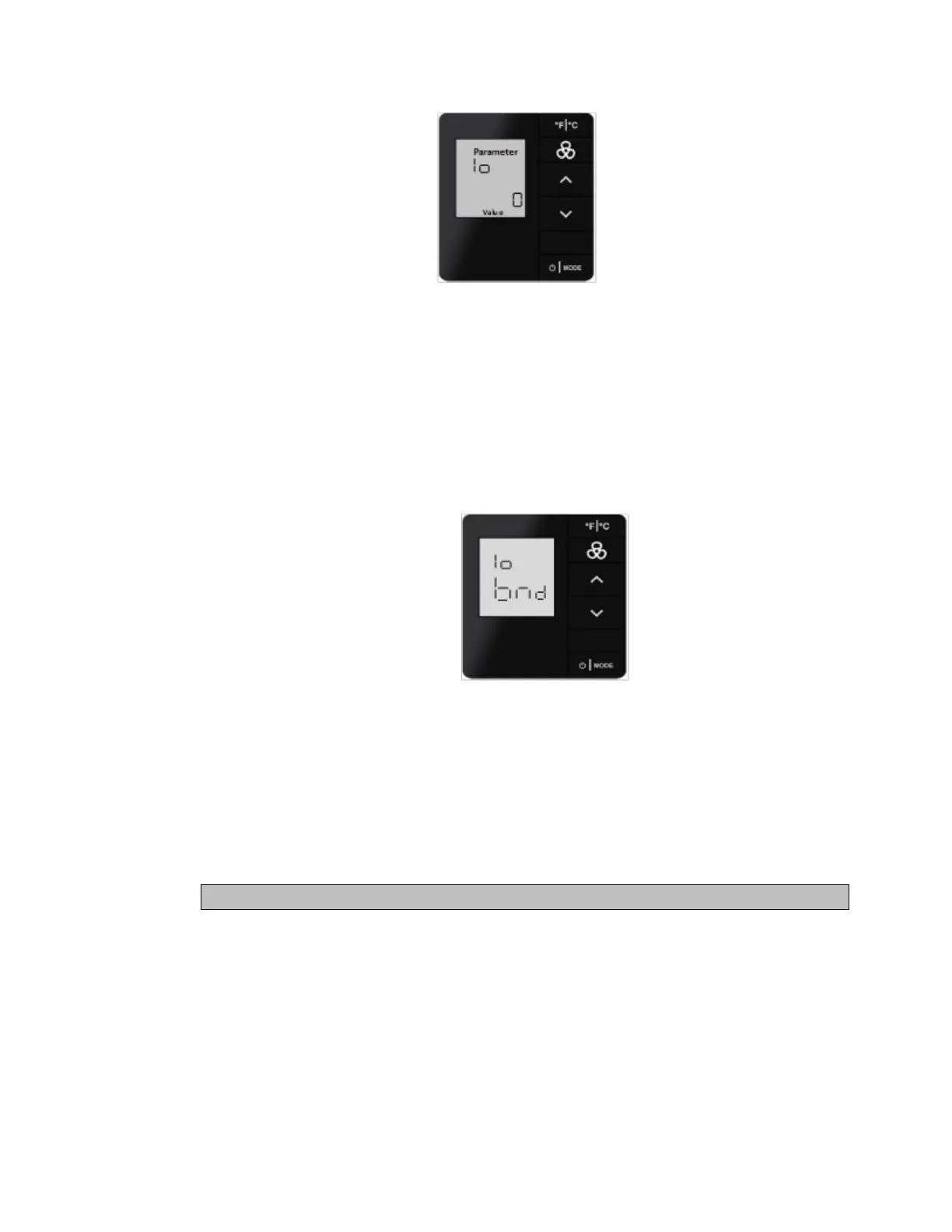

a) After pressing FAN button, "bnd" will appear on the e7w display.
b) Press Bind button on the target device to make the target send a Reverse Bind
Request to the e7w.
c) Upon receiving the Reverse Bind Request, the e7w send a Bind offer to the target
device.
d) After the target device receives and accepts the bind offer containing the new I/O
Map, the target device will RESET and send a “sound buzzer” message to e7w.
e) After receiving the message the e7w beep three times to confirm the binding.
NOTE: For more details, refer applicable commissioning document.
Forward Binding
Forward binding is supported by devices such as an L208.RF, Evora, Modeva etc.
To configure using forward binding, follow the below steps.
a) Place the target device into a Bind Ready mode. This can be done by pressing
Bind button on the target device two times quickly, then press and hold Bind but-
ton for 5-7 seconds
b) Press MODE button on e7w, the e7w send a Forward Bind Request.
To Next Page
