• A device in the room that has its “P5 Door Server” enabled that reports a 0x0002981 “Door
Server Reports Door is Open” when it sees the 0x000281 Entry Door Open message. This
device will typically be the room HVAC controller (X47 or similar).
The e7w watches for the 0x0002981 “Door Server Reports Door is Open” message for its door test.
1. Enter SERVICE MODE

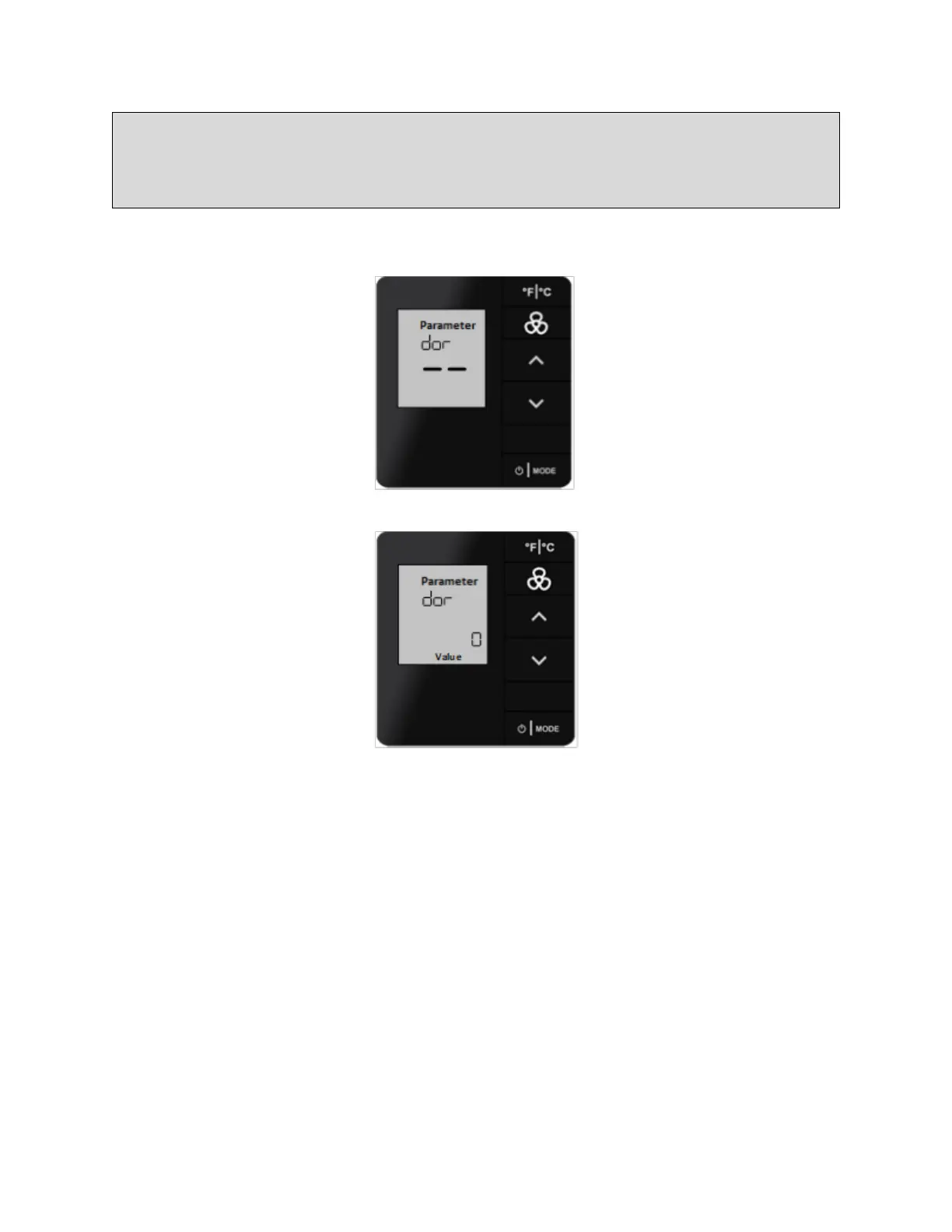

2. Press UP/DOWN arrow buttons to select dor.
3. Press MODE button. This action displays dor value (O is the default dor value displayed)
Open the room entry door. The following sequence should happen
The device used for monitoring and reporting entry door position sends a 0x000281 Door
open message to the e7w.
a) The device used for reporting entry door position sends a 0x000281 Door open mes-
sage into the room
b) The door server in the room sends 0x0002981 Door Server Reports Door Open mes-
sage into the room.
c) Upon seeing the 0x0002981 Door Server Reports Door Open, the e7w will sound its
buzzer sound and increment the displayed door open count.
