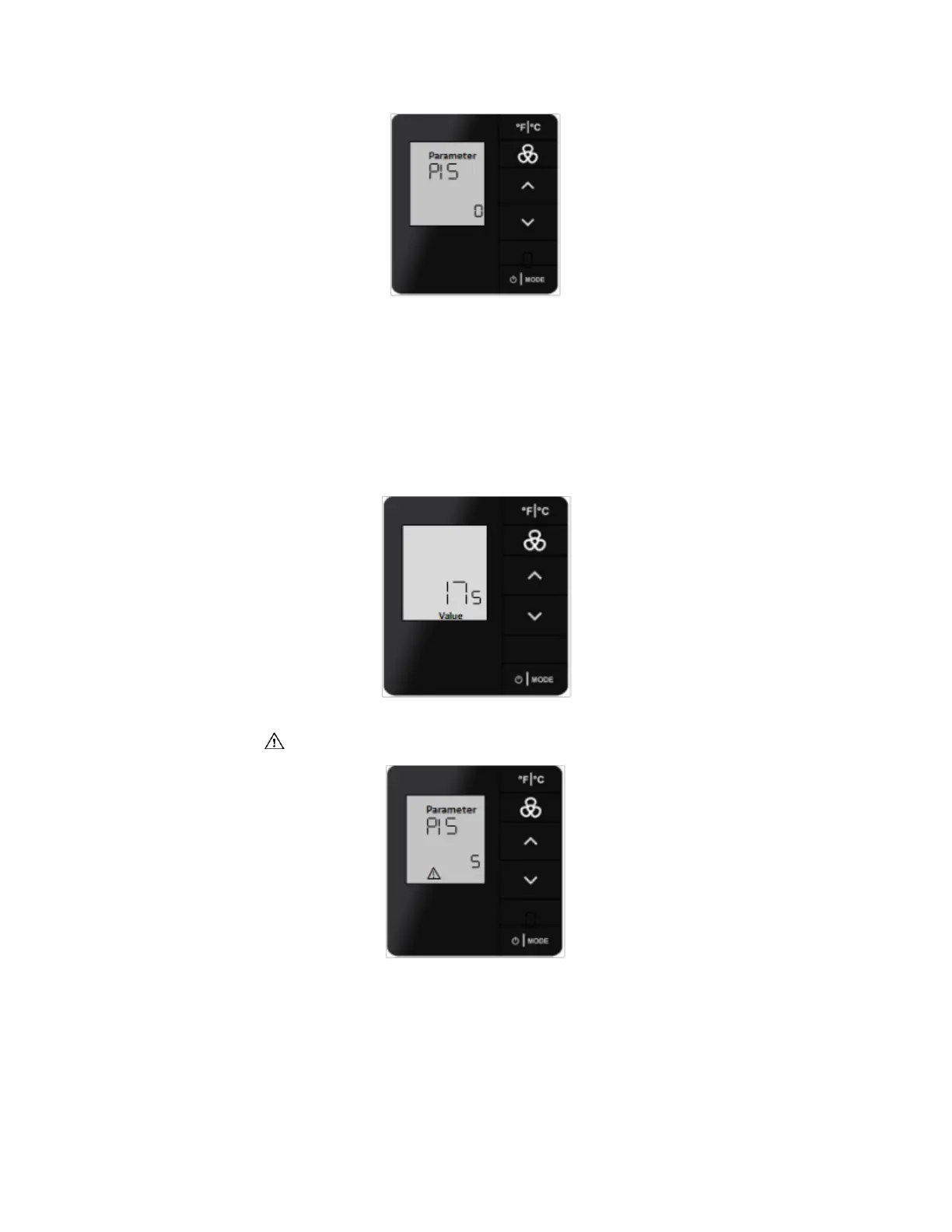

4. Use the UP/DOWN arrow buttons to change the Pi5 offset value over the range 0-31. If go-
ing up from 0, the displayed value will roll back to 0 after 31 is reached, if going down from
31, the displayed value will roll back to 31 after 0 is reached.
5. Press the FAN button to execute. The e7w sends a 0010000XX (XX=E0-FF) read Process
image offset read command to its defined HVAC partner address.
If a reply value is received from the HVAC partner, the Pi5 value is displayed in decimal for-
mat.
6. If no reply is received, the selected PI Offset value remains, and a warning triangle icon is
displayed ( ).
7. Press the FC button to return SERVICE MODE or press UP arrow button to display next
mode
Or
Press the FC button twice to exit SERVICE MODE.
