Batch mode is for each group BATMD1 to BATMD6. Used in embedded variables as
[[BATMD1.v]], will also allow the current batch name to be embedded using [[BATMD.t]].
Maths variables as embedded variables
Other information can be accessed by exchanging the Pn with the following variables, see
Figure 4.5.
In Figure 4.10 is an example that shows pen information can be used as an emebedded
varaible.
An example for pen information, in Mark on Chart enter: [[name.v]] [[P1.T]] [[P1.V]]
[[P1.U]].
This will display the marker as: Furnace1 Temperature is 14.81 Deg C.
Table 4.5 : more embeded variables
Syntax Syntax Syntax
An GLBVn HPULn
BATMDn HPC1 LPULn
BLKVn INTHRS RAn
CFFREE IOC1 RTCOMPn
CJCn LPC1 RTCALn
CJCnC Pn Tn
CVn PnAnL UC1
Dn PnMINU USB1FREE
DIOn PnMAXU USB1FREE
EC1 PSTVn UV1
FTPHRS PRC

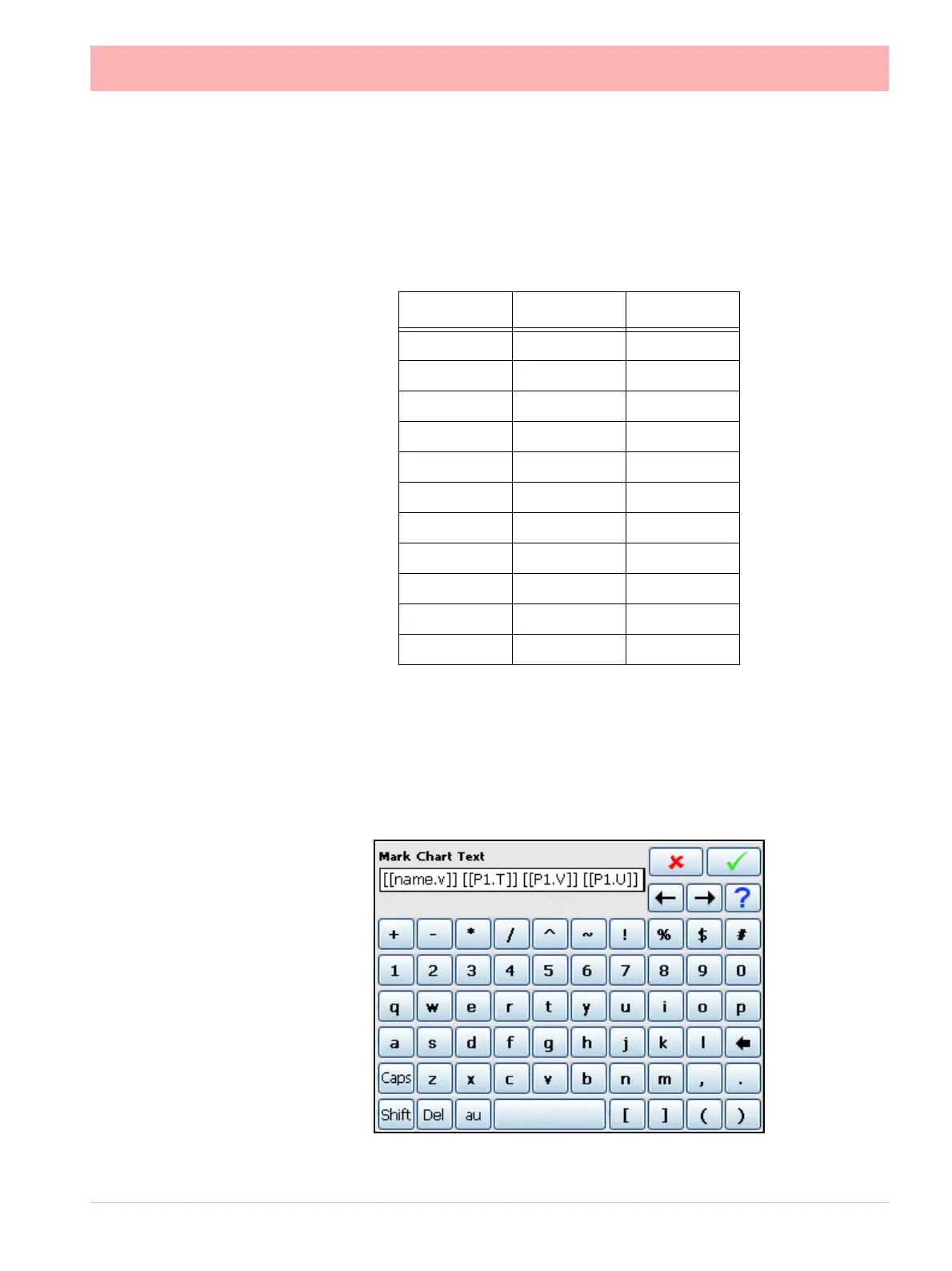

Figure 4.10 Embedded variables for pen information
