104 Thor VM1 with Microsoft Windows Embedded Standard 2009 User Guide
Connect Serial Device
Note: Pin 9 of the COM port is configured to provide +5V.
See COM1 and COM2 Connector for connector pinouts.
1. Seat the cable end connector firmly over the serial COM port on the dock.
2. Turn the thumbscrews in a clockwise direction. Do not over tighten.
3. Secure the cables to the Thor VM1 with Strain Relief Cable Clamps.
4. Connect the other cable end to the desired serial device.
Connect a Tethered Scanner
1. The scanner cable is attached to either the COM1 or COM2 port on the dock.
2. Connect the serial cable for the scanner as directed above.
3. When the Thor VM1 is powered on, it provides power to the serial scanner.
4. Configure the Data Collection (DC) Wedge to manipulate scanned data as desired.

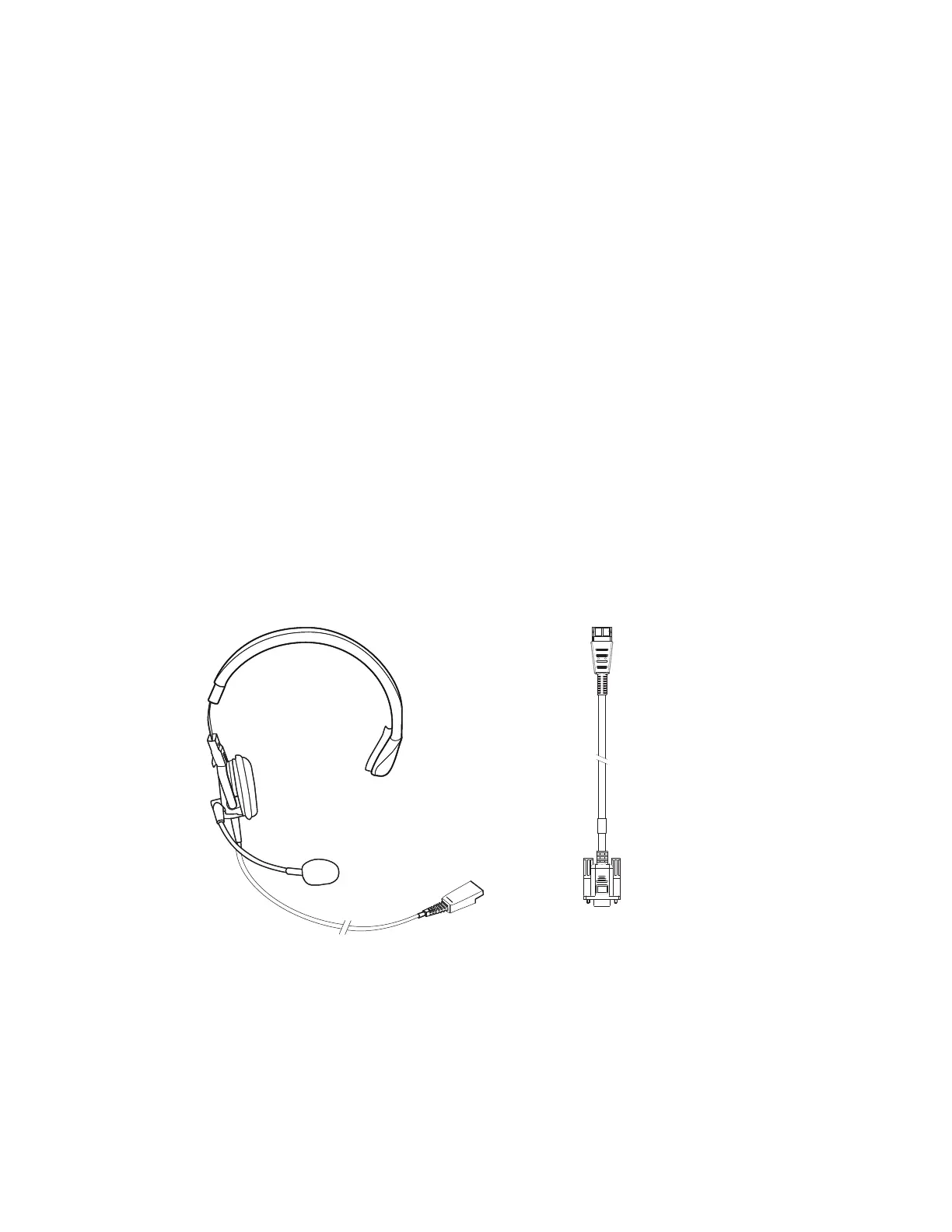

Connect Headset Cable
The CANbus/Audio connector supports a headset adapter cable or a CANbus cable. The
Thor VM1 does not support connecting audio and CANbus simultaneously.
See CANbus / Audio Connector for connector pinouts.
1. Seat the D15 cable end connector firmly over the CANbus/Audio Connector on the
dock.
2. Tighten the thumbscrews in a clockwise direction. Do not over tighten.
Headphones
Microphone
To Audio cable
To Audio
connector
on dock
To headset
