Thor VM1 with Microsoft Windows Embedded Standard 2009 User Guide 47
Maintenance - Vehicle Mounted Devices
Check the vehicle mounting hardware frequently and re-tighten if necessary.
If the vehicle mounting hardware and connections become broken, loose or cracked,
the assembly must be taken out of service and replaced. Contact Technical Assistance
for help.
Cleaning
If it becomes necessary to clean the Thor VM1, dock, peripherals or mounting hardware
see:
• Cleaning the Thor VM1 and the Dock
• Cleaning the Touch Screen
Place Thor VM1 in the Dock
1. Locate the notch on the upper rear of the Thor VM1.
2. Slide this notch over the top lip of the dock. Slide the Thor VM1 from side to side on
the dock to make sure it fully engages on the lip of the dock. If the Thor VM1 cannot
be slid side to side, the lip is engaged.
3. Pull the quick release lever on the Thor VM1 down and push the Thor VM1 against
the dock.
4. Release the quick release lever. The quick release lever catches the lower lip on the
dock and secures the Thor VM1 to the dock. Be sure the red quick release lever is
pushed all the way in to secure the Thor VM1 to the dock.
5. If necessary, adjust the viewing angle of the Thor VM1.
When the Thor VM1 is placed in the dock, the following may happen:

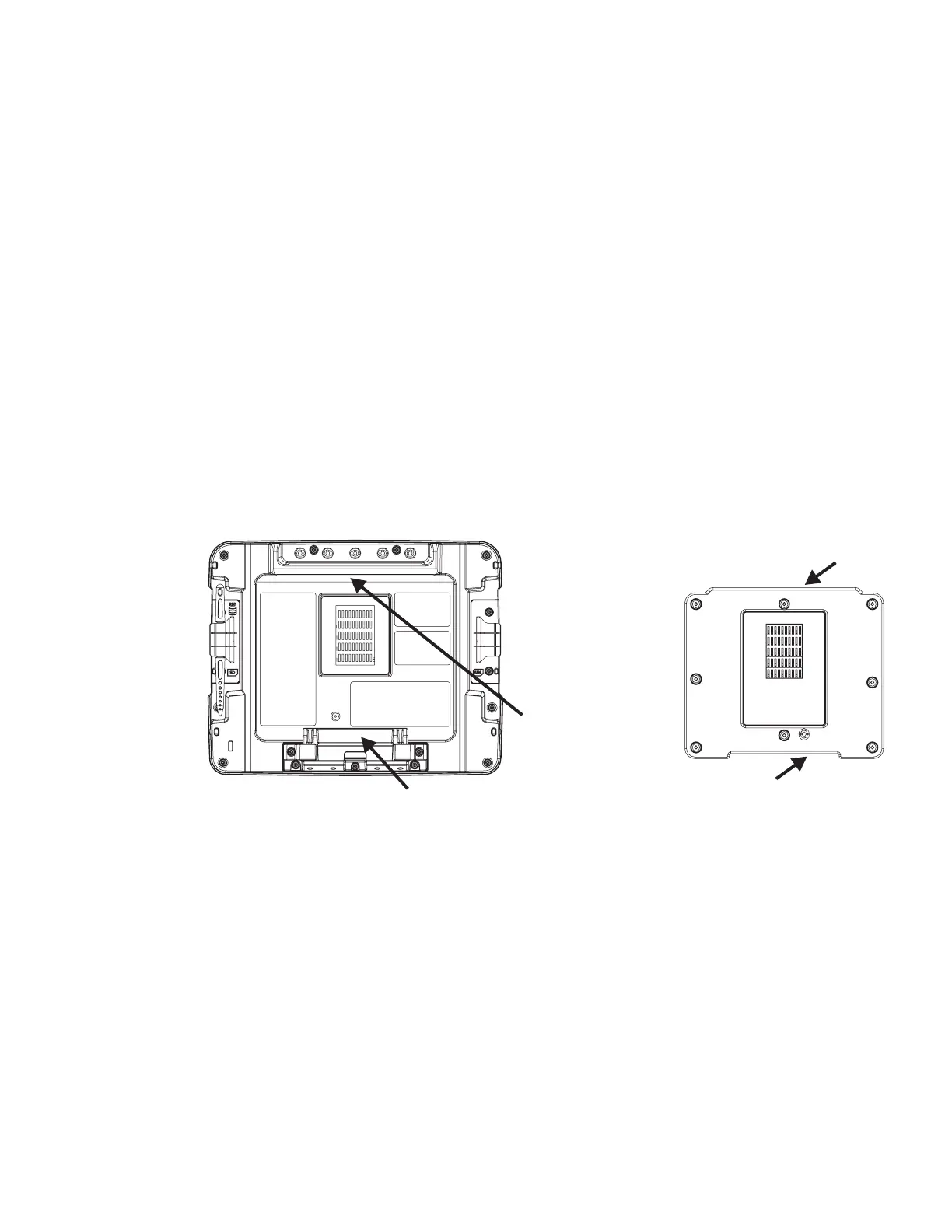

Back of Thor VM1
Front of Dock
Notch on
Thor VM1
Release Lever
Upper Lip on Dock
Lower Lip on Dock
To Next Page
