Thor VM1 with Microsoft Windows Embedded Standard 2009 User Guide 33
USB Connector(s)
An additional USB host port is located on the top of the Enhanced Dock. Lift the cover to
access the USB port.
Ethernet Connector
An Ethernet port is located on the top of the Enhanced Dock. Lift the cover to access the
Ethernet port.
Note: The Ethernet port is not supported with the Windows Embedded Standard 2009 operating
system.

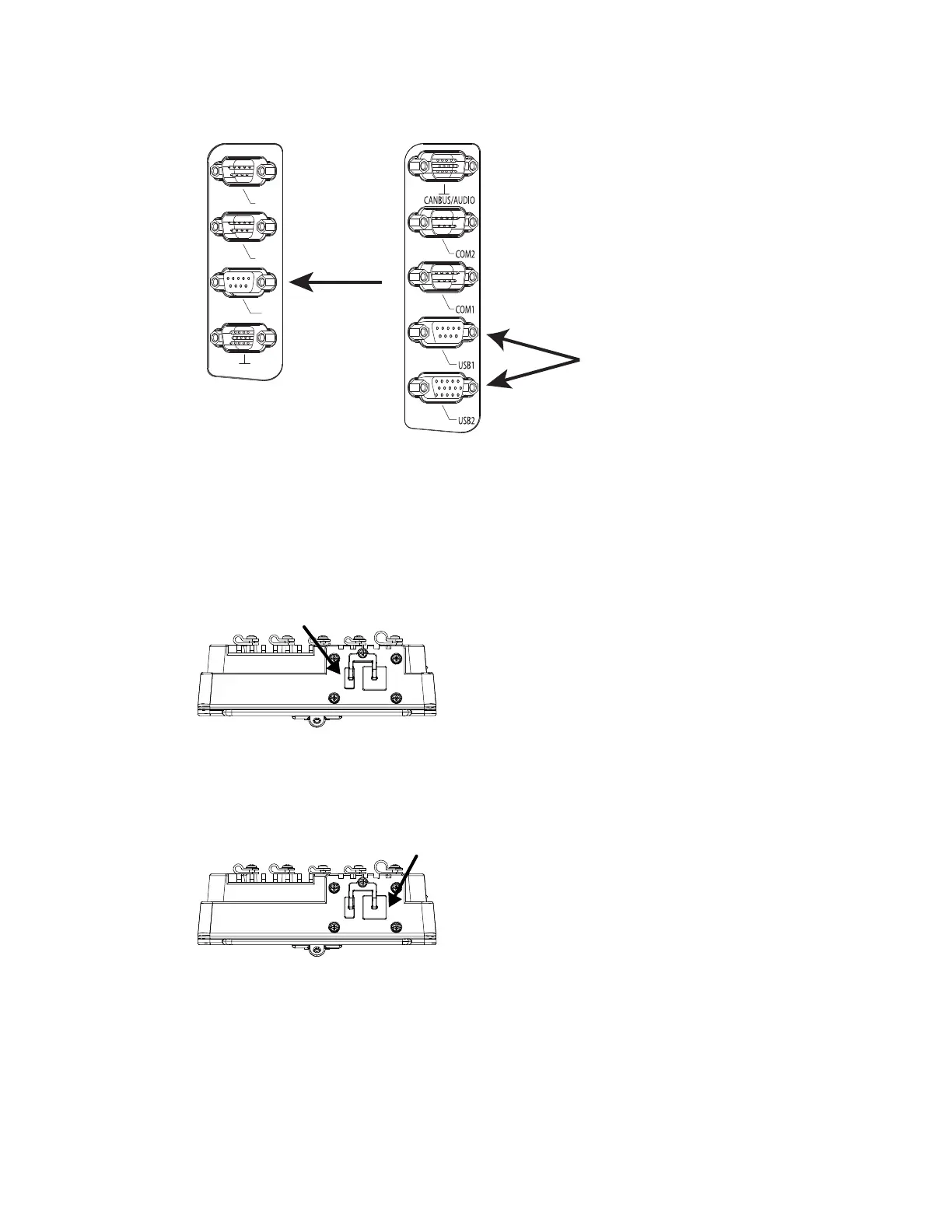

Standard Dock
Enhanced Dock
The USB or USB1 connector is a D-
9 female connector located on the
back of the dock. See USB and
USB1 Connector for connector pin-
out detail.
The USB client port is not sup-
ported with Windows Embedded
Standard 2009 operating systems.
See Connect USB Host for more
information.
The USB-2 connector is a D-15
female connector located on the
back of the dock. See USB2
Connector for connector pinout
detail.
Power the Thor VM1 off before
attaching a cable to any port (serial,
USB, Audio/CAN, etc.).
