Install Remote Antenna
Remote antennas are available for the 802.11 WLAN radio, the WWAN radio and the
GPS.
802.11 Remote Mount Antenna

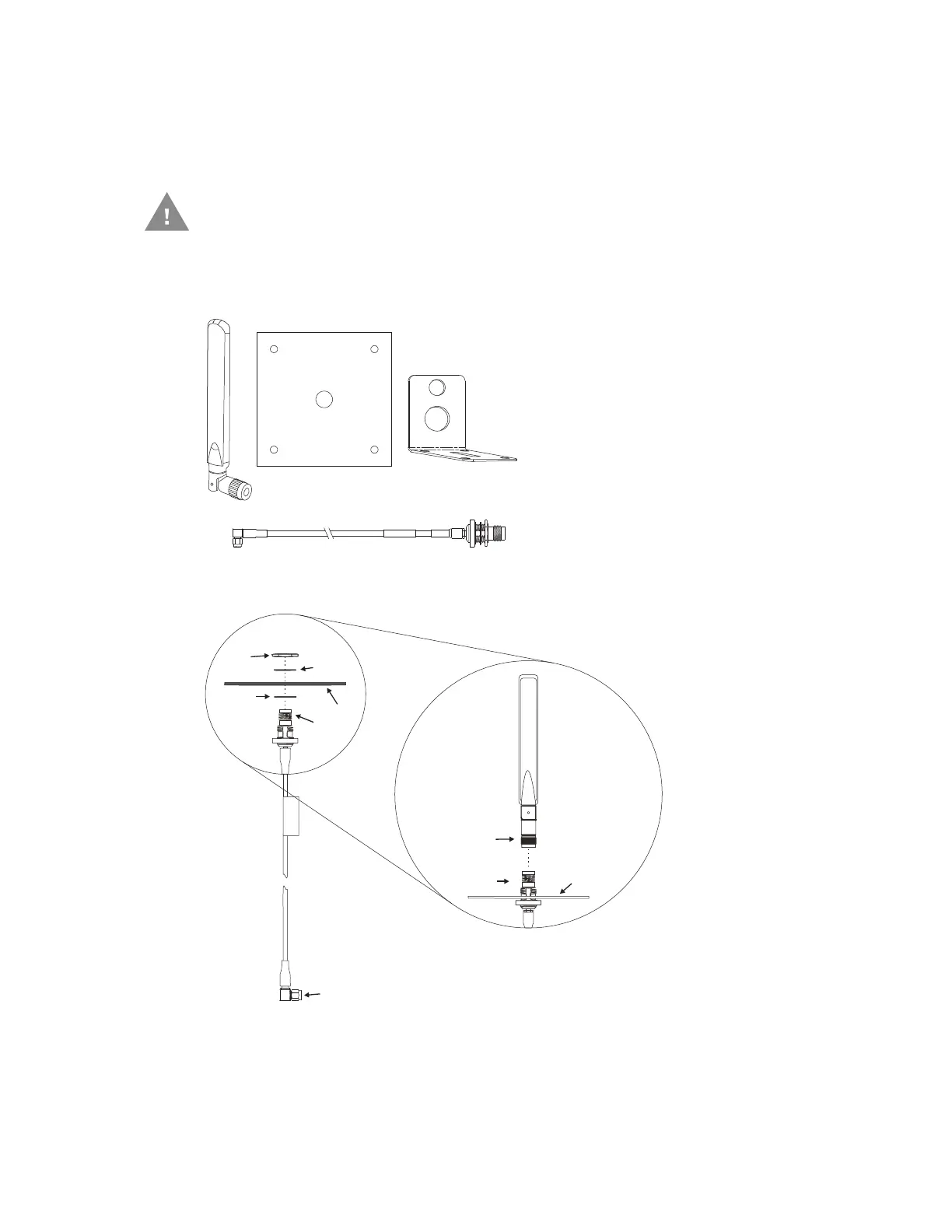

Components and Mounting Diagram
Caution: If the Thor VM1 has connectors for external antennas, do not
power up the Thor VM1 without the external antennas
connected. Damage to the WLAN radio may result.
The Remote Antenna Installation Kit consists of two
brackets (base plate and right angle), cable, and
antenna. Tools are not included.
The desired remote antenna bracket is mounted on
the top of a forklift, truck or other vehicle and cabled to
the Thor VM1 inside the vehicle.
The Vehicle Remote Mount Antenna cannot be used
by devices with an internal antenna.
Nut
Washer
Washer
Bracket
To antenna
To antenna connector on computer
Bracket
To antenna
Antenna
