Honeywell Thor VM1 User Manual

242 Thor VM1 with Microsoft Windows Embedded Standard 2009 User Guide

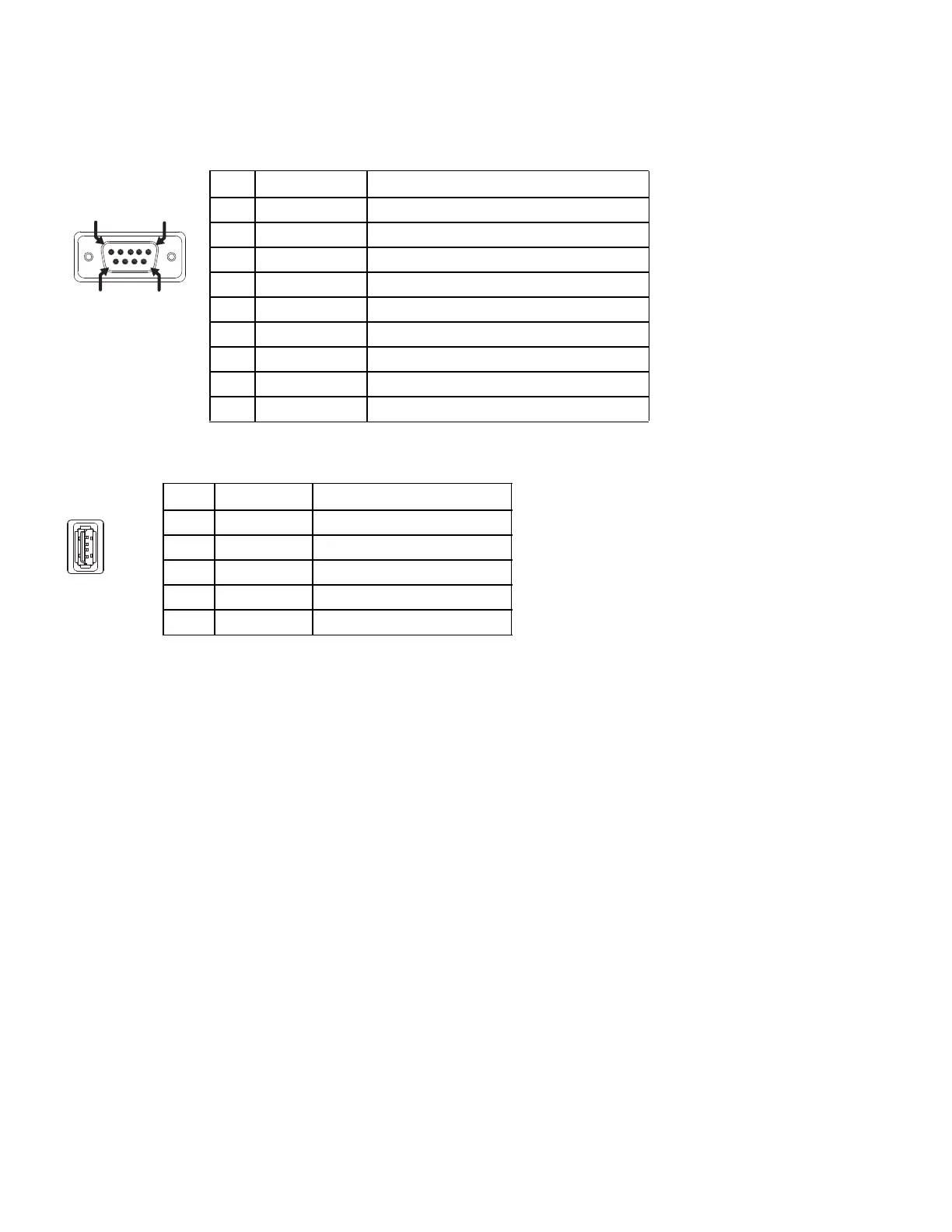

USB Host/Client Y Cable
D9 Male Connector
USB Host Connector
USB Client Connector
The USB client connection is not supported on the Thor VM1 with the Windows Embedded Standard
operating system.
Pin Signal Description
1 GND Common ground
2 USBC_D+ USB client data signal (not used)
3 USBC_D- USB client data signal (not used)
4 USB_H1_PWR USB host 5V output power
5 GND Common ground
6 GND Common ground
7 USB_H1_D+ USB host 1 data signal
8 USB_H1_D- USB host 1 data signal
9 USBC_VBUS USB client 5V detect from attached host
Pin Signal Description
1 5V_USB USB Power, Current Limited
2 USB_H1_D- USB D-
3 USB_H1_D+ USB D+
4 GND USB Power Return
Shell CGND Chassis Ground
PIN 9PIN 6
PIN 5
PIN 1
PIN 4
PI
N1
