52 Thor VM1 with Microsoft Windows Embedded Standard 2009 User Guide
1. Determine the position for mounting the RAM ball base. Be sure to position the RAM
bracket to allow access to the switches and ports on the bottom of the Thor VM1.
2. Attach the RAM ball base to the vehicle mounting surface using three or four 1/4
bolts (not included) or equivalent fasteners. If the mounting kit includes cone
washers, use those as illustrated below.
IMPORTANT: Mount to the most rigid surface available.

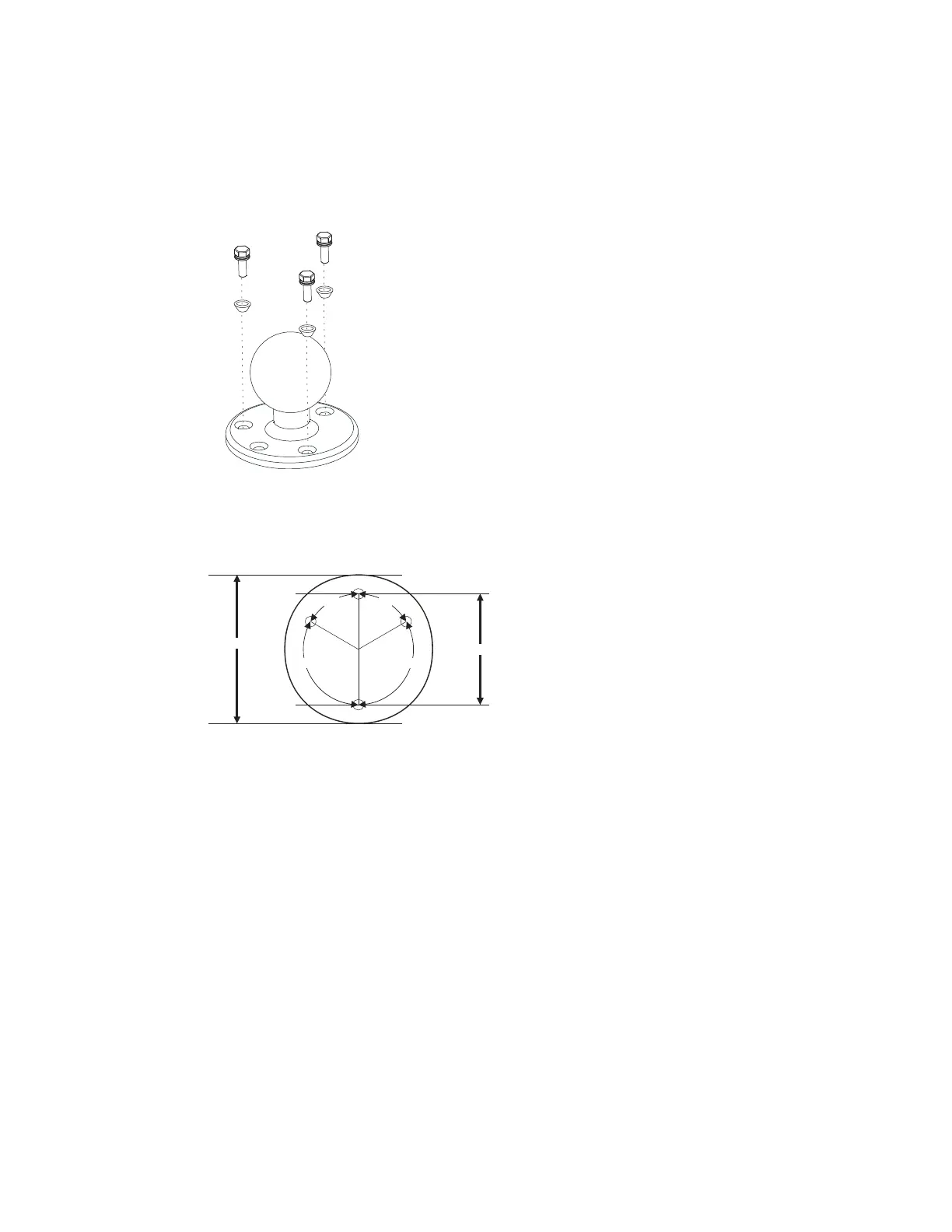

Mounting Dimensions
Note: Drill and tap holes for three 1/4 bolts. Drawing not to scale.
120º120º
60º60º
2.75" / 69.85 mm
3.69" / 93.73 mm
To Next Page
