54 Thor VM1 with Microsoft Windows Embedded Standard 2009 User Guide
Step 1c – Attach RAM Plate to Vehicle and Attach RAM Ball
Note: If you are using the RAM ball mount, please go to Step 1a – Attach RAM Ball to Vehicle If
you are using the RAM clamp mount, please go to Step 1b – Mount RAM Clamp to Vehicle.
1. Determine the position for mounting the RAM ball plate. Be sure to position the
RAM plate to allow access to the switches and ports on the bottom of the Thor VM1.
2. Attach the RAM ball plate to the vehicle mounting surface using four 1/4 bolts (not
included) or equivalent fasteners.
3. If not already attached, attach the RAM ball to the RAM ball plate using three M6
nuts and washers.
IMPORTANT: Mount to the most rigid surface available.

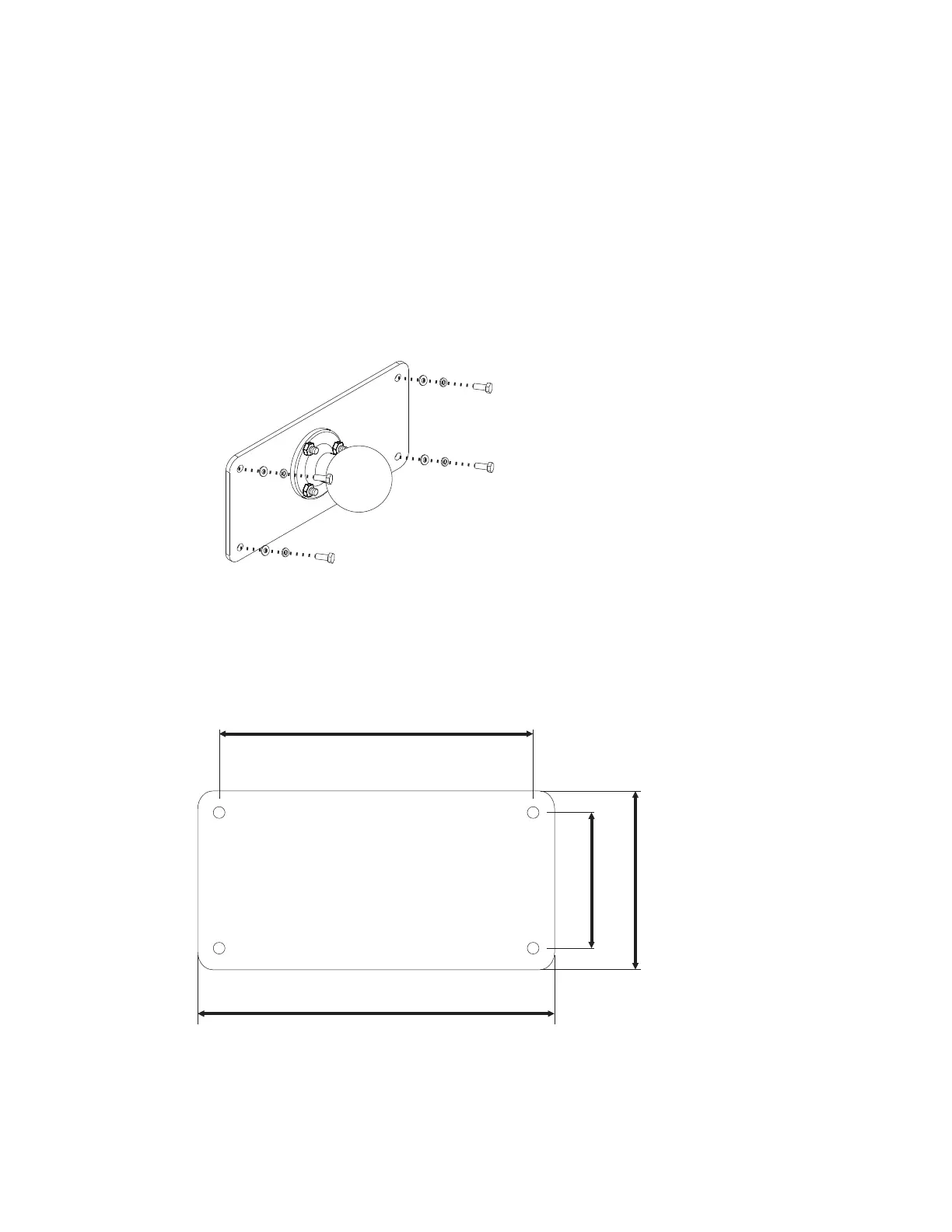

Mounting Dimensions
There are 4 mounting holes in the plate. Use four 1/4 bolts to secure the plate to the
vehicle.
Note: Drawing not to scale.
176 mm
6.99”
200 mm
7.87”
76mm 2.99”
100mm 3.94
”
