154 Vuquest 3320g User Guide
IMGSHP Modifiers
A - Infinity Filter
Enhances pictures taken from very long distances (greater than 10 feet or 3m). The
Infinity Filter should not be used with IMGSNP Modifiers (see page 150).
0A Infinity filter Off (default)
1A Infinity filter On
C - Compensation
Flattens the image to account for variations in illumination across the image.
0C Compensation disabled (default)
1C Compensation enabled
D - Pixel Depth
Indicates the number of bits per pixel in the transmitted image (KIM or BMP format
only).
8D 8 bits per pixel, grayscale image (default)
1D 1 bit per pixel, black and white image

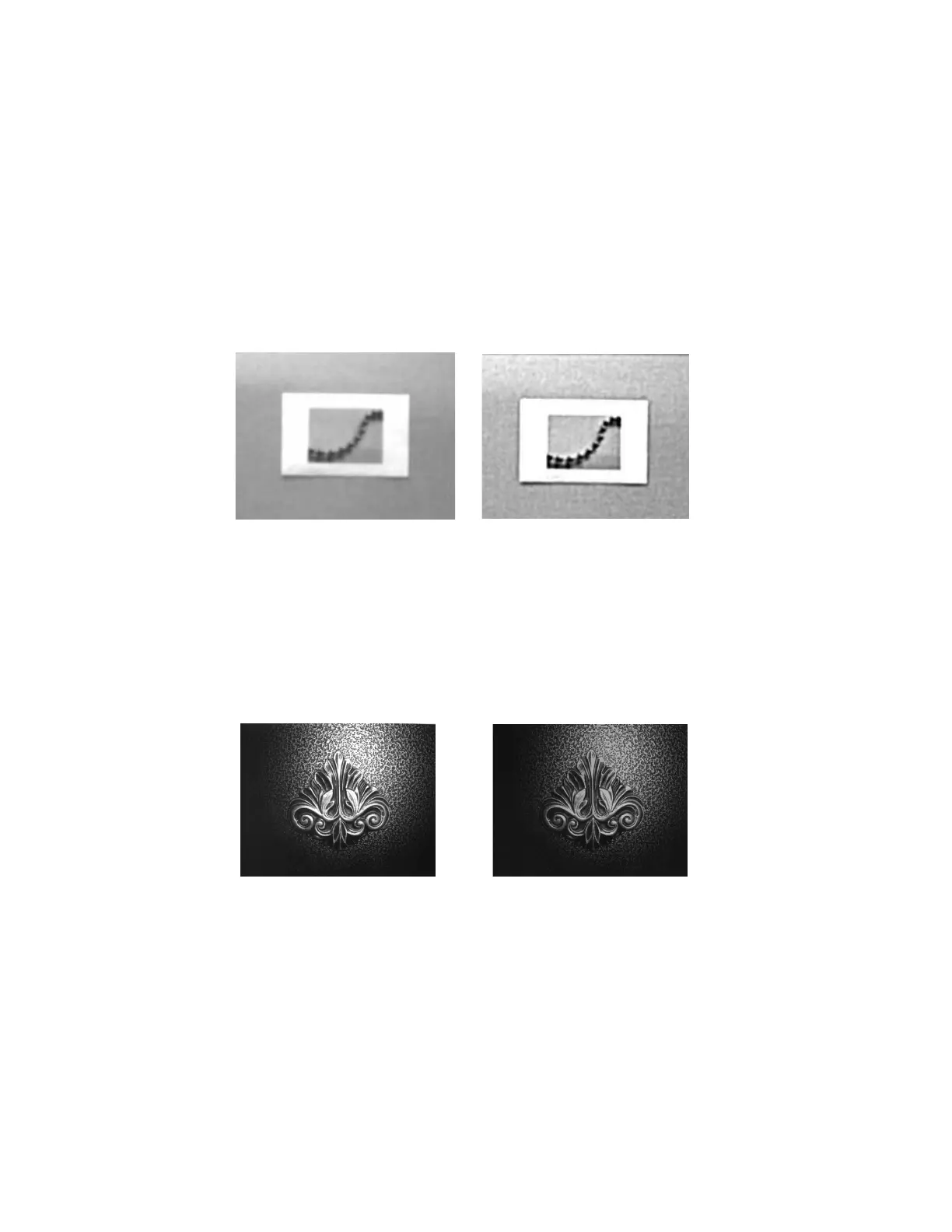

Example of Infinity Filter Off (0A)
from approximately 12 feet
(3.66m) away:
Example of Infinity Filter on (1A)
from approximately 12 feet (3.66m)
away:
Example of Compensation at 0C: Example of Compensation at 1C:
