15.10 Analog Output Configuration
The following figure illustrates the Analog Output Configuration dialog. To open the I/O
configuration dialogs, select Controller → Hardware Configuration → Local I/O → Config (top
button) → Module Setup.

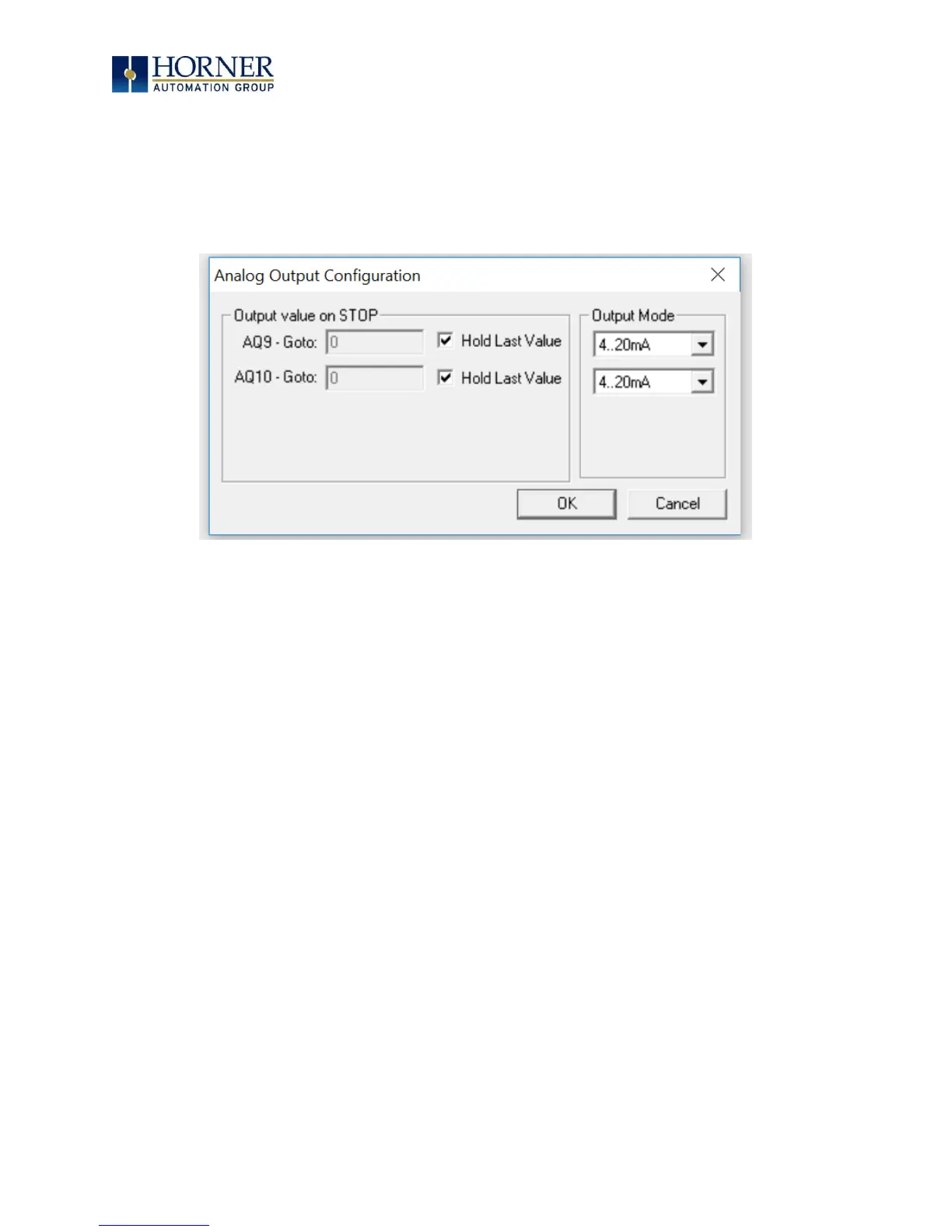

Figure 15.11– Analog Output Configuration Dialog
The Output value on Stop group box contains items that allow the user to specify how the
analog output channels behave when the controller is stopped. The outputs can either hold their
value or default to a value when the controller is stopped.
The Output Mode group box allows the user to select the operating modes for each of the analog
outputs. The modes include the following:
- 0..10V
- 0..20mA
- 4..20mA
- Disable
