7.5 Scan List

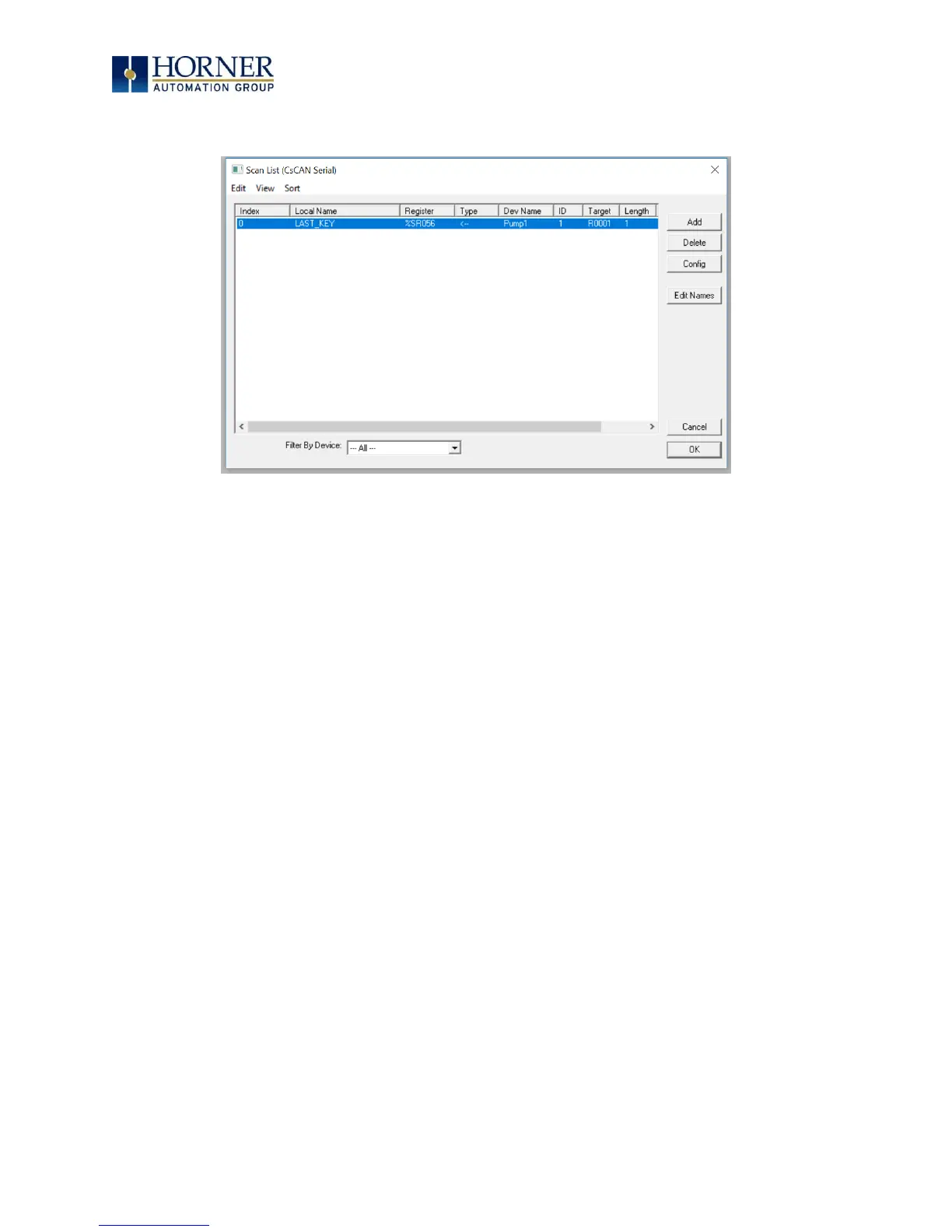

The Scan List (CsCAN Serial) dialog is accessed from the Scan List button on the Protocol
Config screen and provides a Scan List of the Data Mapping entries. To transfer data between
the OCS and remote target, a Scan List must be created that defines each transaction. Each
mapping entry (transaction) contains the source and destination registers, the number of
consecutive registers transferred, the direction of the transfer and what triggers the transfer.
Typically the number of entries is limited to 512.
NOTE: The order of the Scan List is the order in which the transactions occur. Sort functions
are provided to change the order of the list. Each entry also has an identifying index. If the
device status register is enabled and a transaction failure occurs, the status register indicates
the index number of the transaction that has failed.
