2. Selecting “Clone Unit” menu will open the following menu screen. Select “Load Clone”.
XLT:
XLE:

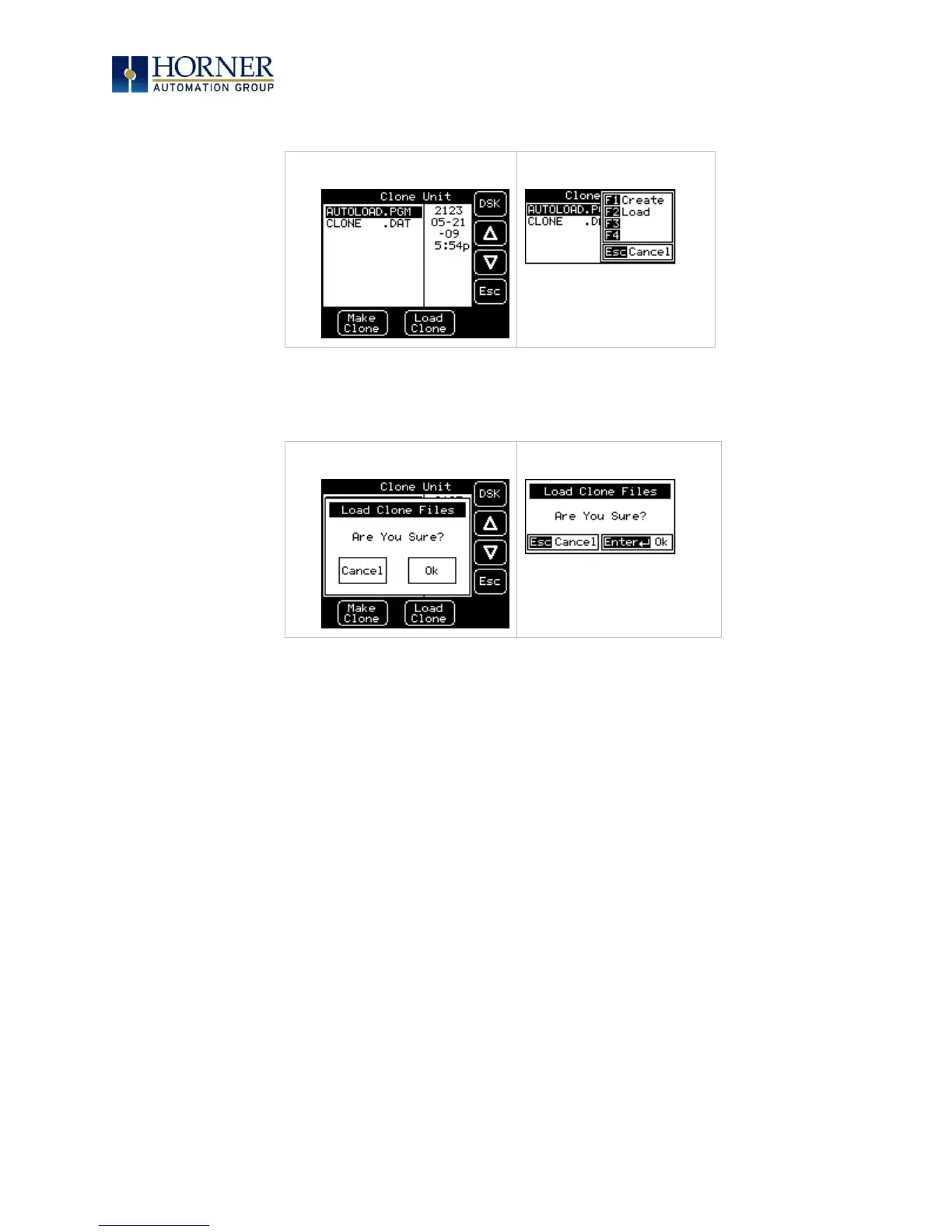

Figure 17.7– Clone Unit Menu after Cloning
3. User must confirm Load Clone as shown below:
XLT:
XLE:
Figure 17.8 – Load Clone Confirm Screen
4. After confirmation, all unit settings and register values will be loaded from the Removable
media to the Battery backed RAM (Regardless of AutoLoad settings) and then the OCS resets
at which stage the settings take effect.
NOTE: For security enabled files, Load clone asks for password validation before loading the
application.
Load clone can also be triggered by setting %SR164.10 bit to “1” from Ladder program or
graphics. Once the operation is completed, this bit is made zero by the firmware. When the Load
clone operation is triggered by this SR bit, it does not ask the user for confirmation to load the
clone. The success / failure of the operation is not notified on the screen to the user.
In case of failure of the “Load Clone” operation, %SR164.12 bit is set to “1” by the firmware
and never reset.
