MAN0878-09-EN_XLE_XLT_UserManual
A u g u s t 2 3 , 2 0 1 8 P a g e 77 | 158
11.8 Universal Analog Inputs
NOTE: See the data sheet for the XLE/XLT model being used for jumper settings and Chapter
15 for details on how to use Cscape to configure the digital filtering.
The universal analog inputs provide a high resolution, very flexible interface for a variety of
analog inputs. These inputs include voltage, current, thermocouple, RTD and millivolt. Each
channel can be configured separately using jumpers and configuration settings in Cscape. The
Model 6 does not require jumpers and only requires a configuration parameter in Cscape.
Like the standard analog inputs, these inputs have a digital filter that can be used to filter
electrical noise that may be unavoidable in some installations. The downside to digital filtering
is the inputs will respond more slowly to sudden changes in the actual input.
The Universal Analog Inputs on the Model 6 I/O board are unique from other Horner XL series
input/output cards in that they are configurable through the module configuration instead of
having to change jumper setting in order to setup the input type.
To configure the Universal Analog input type:
1. Select Analog In to access the Analog Input Configuration menu.
2. Select any of the Analog input types from the dropdowns.

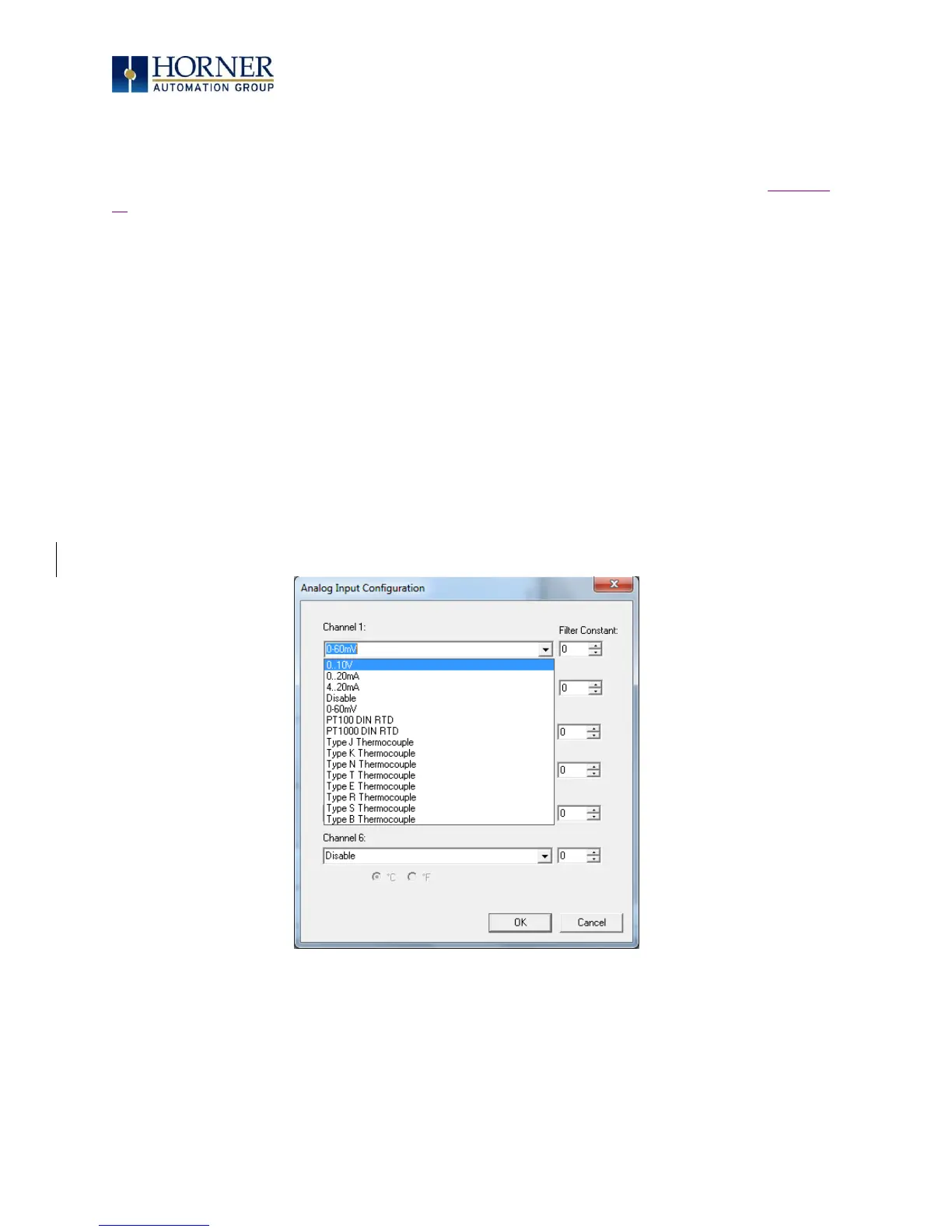

Figure 11.7 – Analog Input Configuration (Model 6)
