Configuring the portal authentication server on IMC PLAT 3.20
This example assumes that the portal server runs on IMC PLAT 3.20-R2602P13 and IMC UAM
3.60-E6301.
1. Configure the portal authentication server:
a. Log in to IMC and click the Service tab.
b. Select Access Service > Portal Service Management > Server from the navigation tree to enter
the portal server configuration page, as shown in Figure 54.
c. Configu
r
e the portal server heartbeat interval and user heartbeat interval.
d. Use the default settings for other parameters.
e. Click OK.

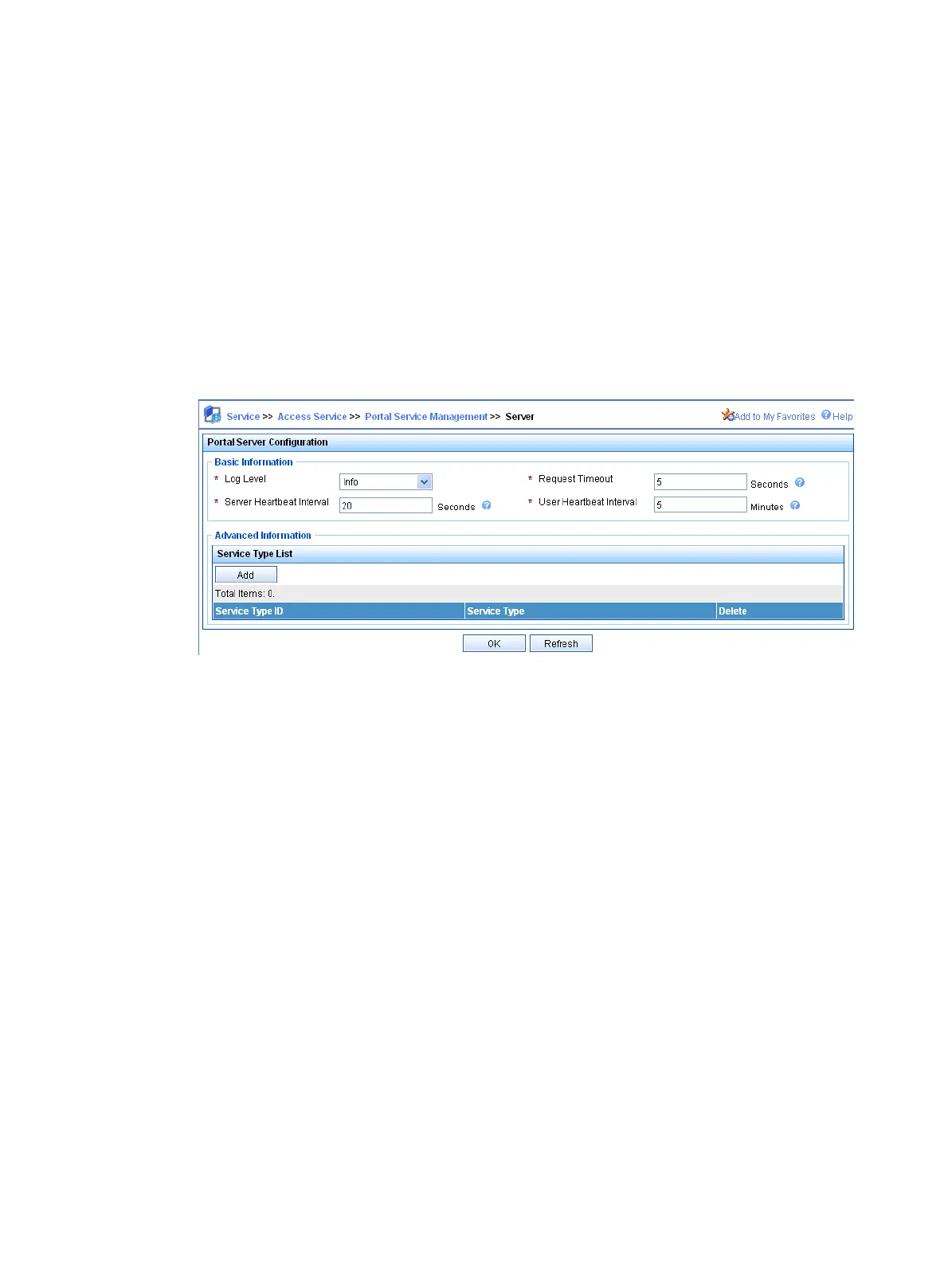

Figure 54 Portal authentication server configuration
2. Configure the IP address group:
a. Select Access Service > Portal Service Management > IP Group from the navigation tree to
enter the portal IP address group configuration page.
b. Click Add to enter the page shown in Figure 55.
c. Enter the IP group name.
d. Enter the start IP address and end IP add
ress of the IP
group.
Make sure the host IP address (2.2.2.2) is in the IP group.
e. Select a service group.
This example uses the default group Ungrouped.
f. Select Normal from the Action list.
g. Click OK.
