344

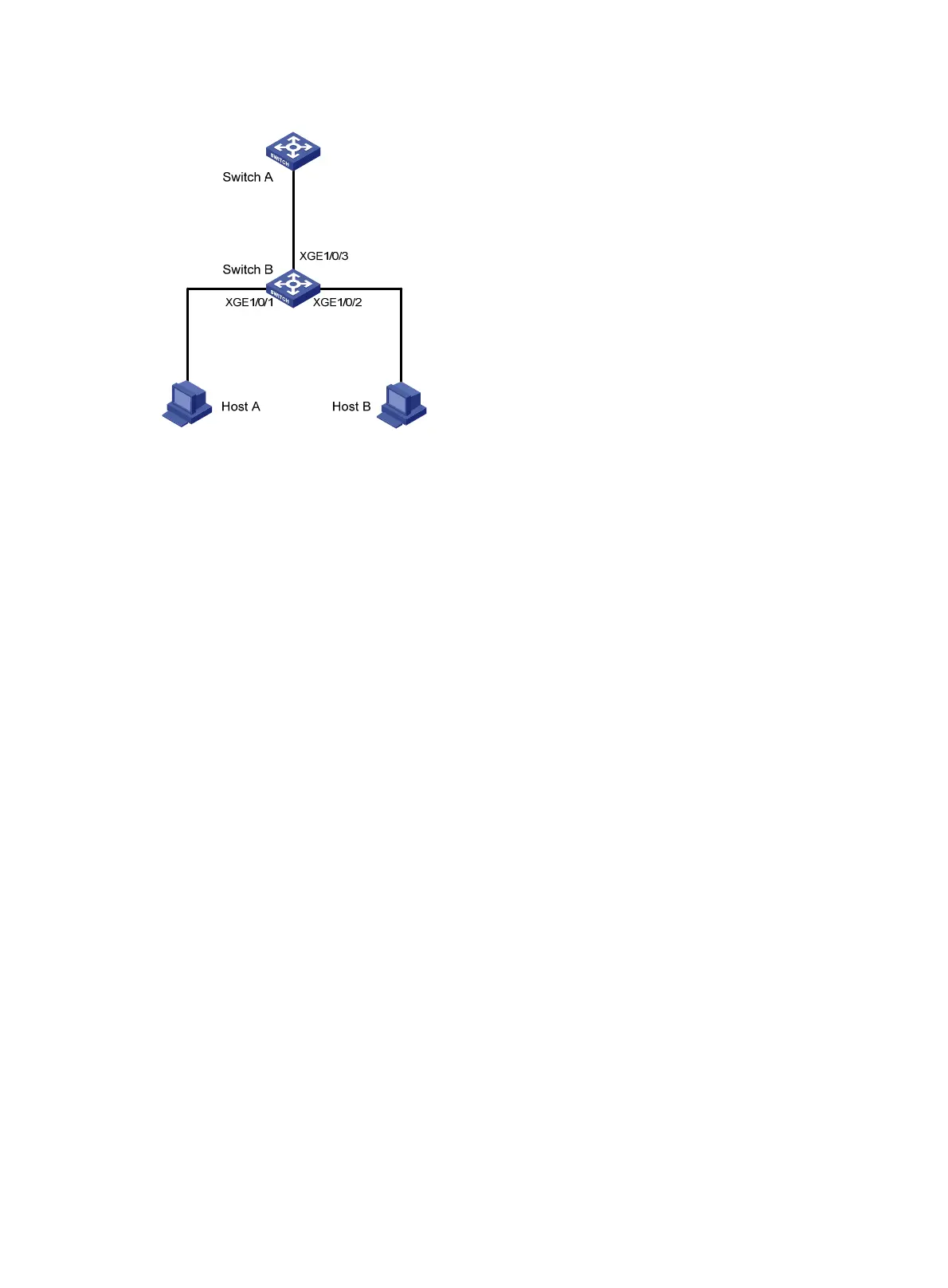

Figure 116 Network diagram
Configuration procedure
# Configure ARP filtering on Switch B.
<SwitchB> system-view
[SwitchB] interface ten-gigabitethernet 1/0/1
[SwitchB-Ten-GigabitEthernet1/0/1] arp filter binding 10.1.1.2 000f-e349-1233
[SwitchB-Ten-GigabitEthernet1/0/1] quit
[SwitchB] interface ten-gigabitethernet 1/0/2
[SwitchB-Ten-GigabitEthernet1/0/2] arp filter binding 10.1.1.3 000f-e349-1234
Verifying the configuration
# Verify that Ten-GigabitEthernet 1/0/1 permits ARP packets from Host A, and discards other ARP
packets.
# Verify that Ten-GigabitEthernet 1/0/2 permits ARP packets from Host B and discards other ARP
packets.
