HP Apollo 4200 Gen9 - Front Panel Leds and Buttons

DRAFT - HP Confidential - DRAFT
Component identification 128

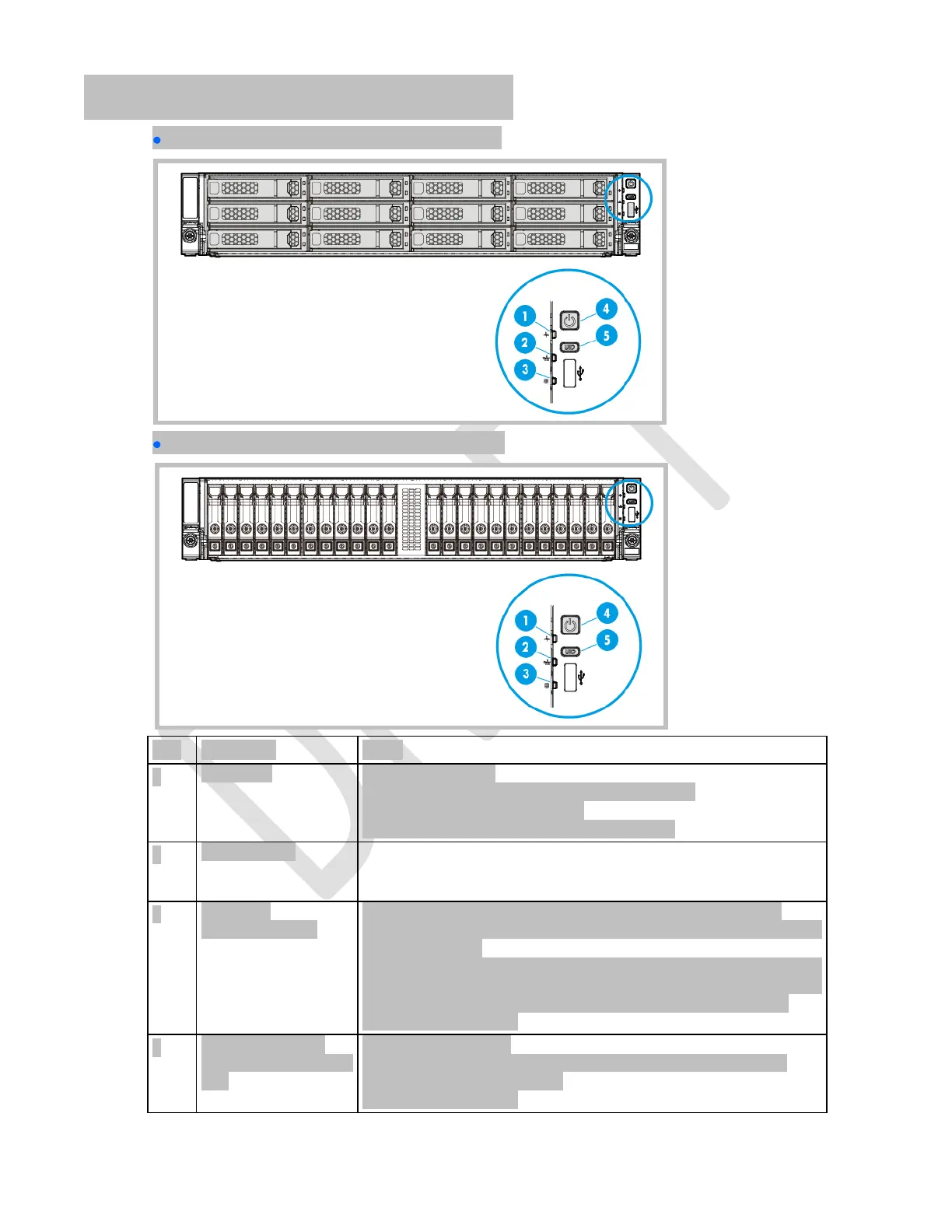

Front panel LEDs and buttons
Front panel LEDs and buttons in the LFF chassis
Front panel LEDs and buttons in the SFF chassis
Item
Description
Status
1
Health LED
1
Solid green = Normal
Flashing green (1 Hz/cycle per sec) = iLO is rebooting
Flashing amber = System degraded
2
Flashing red (1 Hz/cycle per sec) = System critical
2
2
NIC status LED
1
Solid green = Link to network
Flashing green (1 Hz/cycle per sec) = Network active
Off = No network activity
3
Front drive
health/thermal LED
Solid green = Drives supported by the SAS expander are functional.
3
Solid amber = Failure or predictive failure of one or more drives supported by
the SAS expander.
3
Flashing amber (1 Hz/cycle per sec) = The temperature sensor in one or more
front drives is about to reach the thermal threshold. Immediately slide the drive
cage back into the chassis and keep it there until the LED turns green.
4
Off = No power present†
4
Power On/Standby
button and system power
LED
1
Solid green = System on
Flashing green (1 Hz/cycle per sec) = Performing power on sequence
Solid amber = System in standby
Off = No power present†
