HP Apollo 4200 Gen9 Maintenance And Service Guide

DRAFT - HP Confidential - DRAFT
Component identification 130

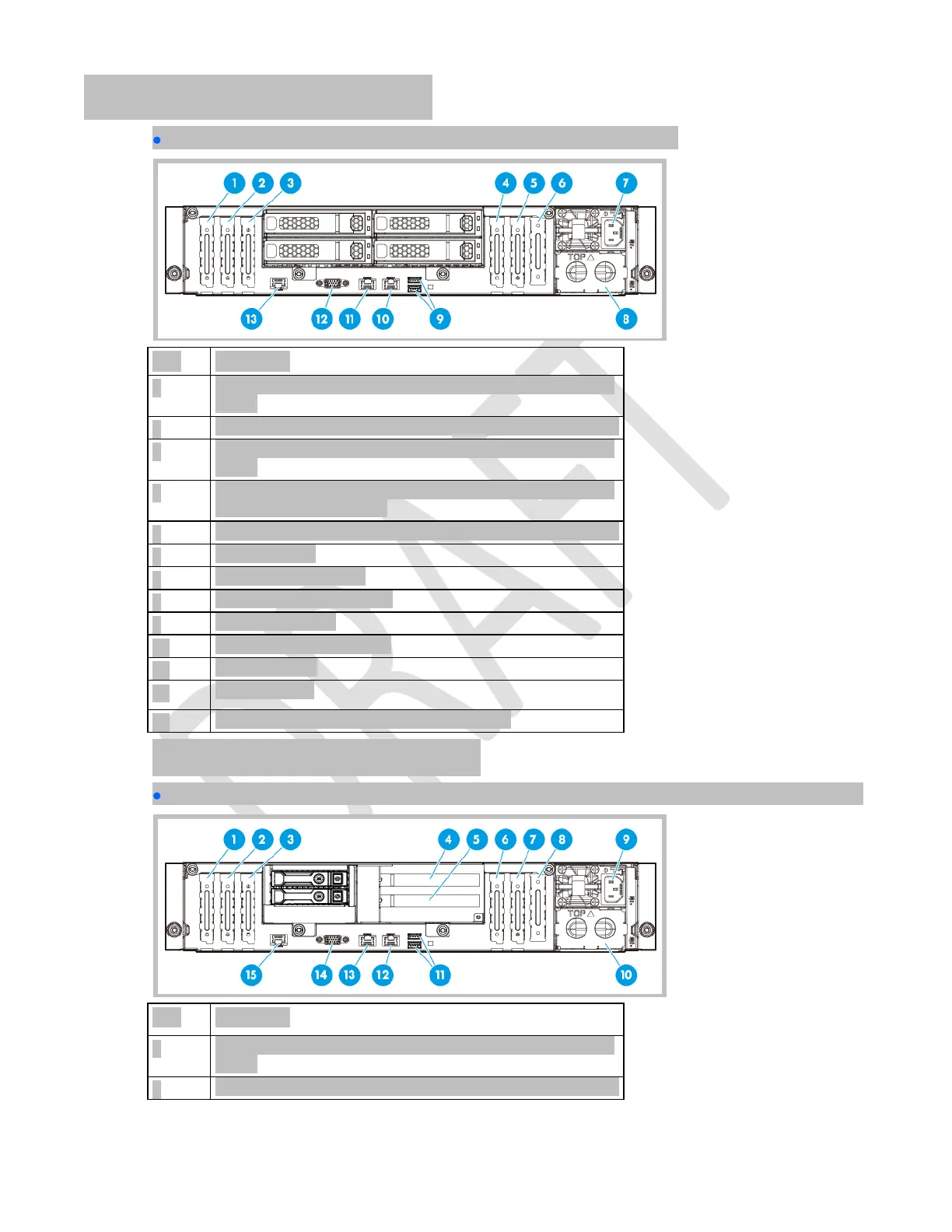

Rear panel components
Rear panel components with four-bay LFF hot-plug rear drive cage option
Item
Description
1
PCIe3 x16 (16, 8, 4, 1) slot 7 for low-profile, standup expansion
board
2
2
PCIe3 x8 (8, 4, 1) slot 6 for low-profile, standup expansion board
2
3
PCIe3 x16 (16, 8, 4, 1) slot 5 for low-profile, standup expansion
board
2
4
PCIe3 x16 (16, 8, 4, 1) slot 2 for low-profile, standup expansion
board or riser cage options
1
5
PCIe3 x8 (8, 4, 1) slot 1 for low-profile, standup expansion board
1
6
FlexibleLOM slot
7
Hot-plug power supply 1
8
Hot-plug power supply bay 2
9
USB 3.0 connectors
10
NIC 1/shared iLO connector
11
NIC connector 2
12
Video connector
13
Dedicated iLO management connector (optional)
1
PCIe connectors 1-4 are associated with processor 1.
2
PCIe connectors 5-7 are associated with processor 2.
Rear panel components with two-bay SFF hot-plug rear drive cage and two-slot PCI riser cage option
Item
Description
1
PCIe3 x16 (16, 8, 4, 1) slot 7 for low-profile, standup expansion
board
2
2
PCIe3 x8 (8, 4, 1) slot 6 for low-profile, standup expansion board
2
