Cabling 143

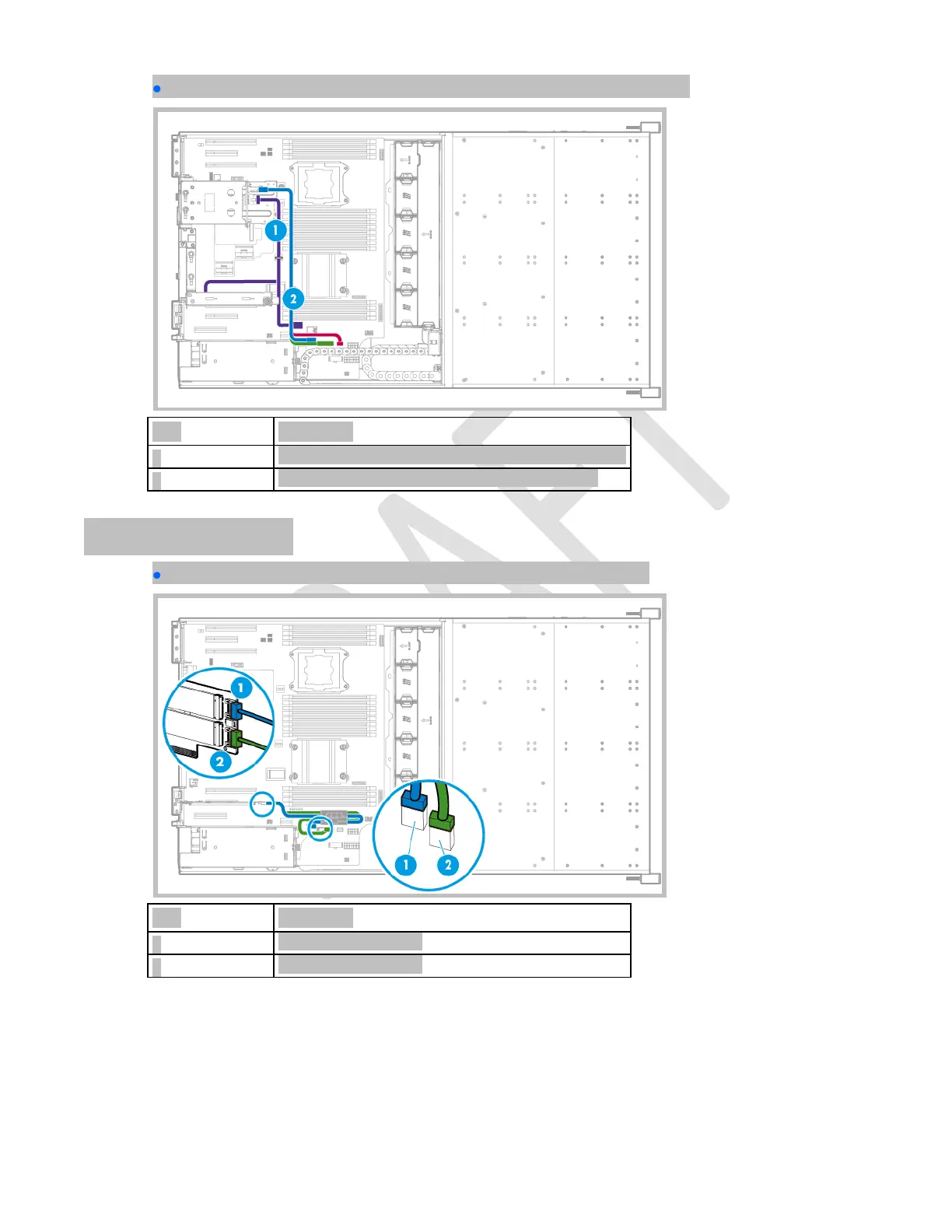

Cabling for rear SFF drives connected to the onboard Mini-SAS connector.
Item
Description
1
Power cable to rear drive cage and 2 -slot PCI riser board
2
Multi connector drive signal cable to rear drive cage
M.2 SSD cabling
M.2 SSD enablement board installed in the onboard PCIe3 x8 slot 1
Item
Description
1
M.2 SSD 1 SATA cable
2
M.2 SSD 2 SATA cable
