DRAFT - HP Confidential - DRAFT
Removal and replacement procedures 77

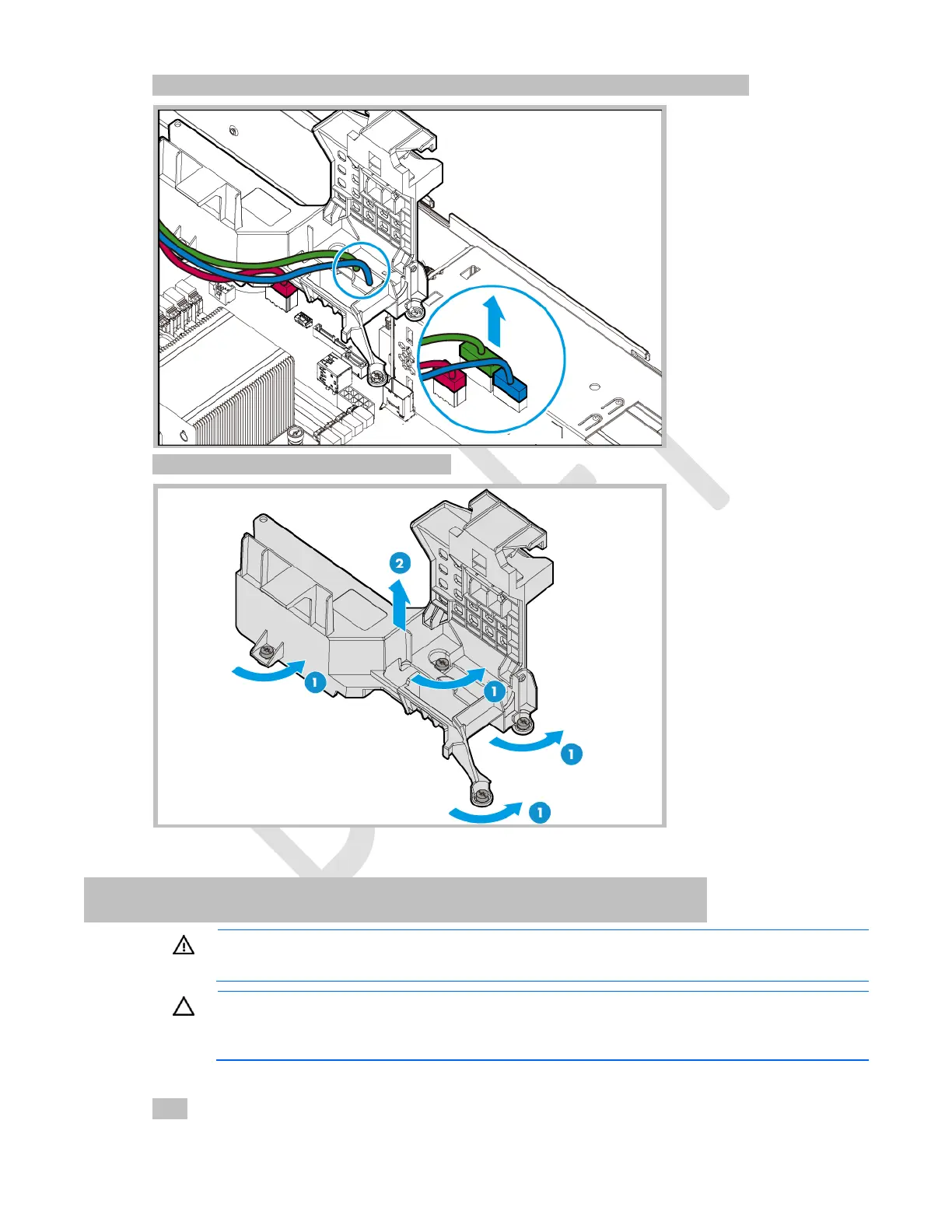

9. Disconnect the front drive cage 1 and cage 2 power cables from the system board.
10. Remove the cable management holder.
To replace the component, reverse the removal procedure.
Cable kit for 12-bay LFF Front drive cages
WARNING: To reduce the risk of personal injury from hot surfaces, allow the drives and the
internal system components to cool before touching them.
CAUTION: To prevent damage to electrical components, take the appropriate anti-static
precautions before beginning any installation, removal, or replacement procedure. Improper
grounding can cause electrostatic discharge.
To remove the component:
1. Power down the server (on page 17).
